511FCA156M250CAG|Skyworks思佳訊晶振|Si511貼片晶振|LVDS差分晶振

規格型號：58481600
頻率：156.25 MHz
尺寸：3225MM
PDF
產品描述：511FCA156M250CAG|Skyworks思佳訊晶振|Si511貼片晶振|LVDS差分晶振,在需要高精度時鐘的高端電子設備(如醫療影像設備,測試測量儀器)中,511FCA156M250CAG憑借156.250MHz的精準頻率輸出與LVDS差分特性,成為理想選擇

511FCA156M250CAG|Skyworks思佳訊晶振|Si511貼片晶振|LVDS差分晶振

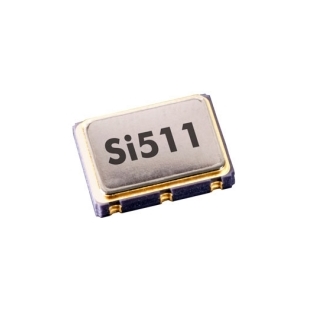

依托Si511系列的貼片晶振封裝設計,511FCA156M250CAG晶振體積小巧,安裝便捷,能完美適配高密度PCB板布局需求.在消費電子(如高端路由器),工業控制設備等內部空間有限的場景中,可大幅節省板載空間,同時貼片工藝的高可靠性,能減少傳統插件封裝可能出現的接觸不良問題,提升設備整體穩定性,助力產品實現小型貼裝晶振,高集成度設計.同時優化的電路設計使其具備較強的抗電磁干擾與電壓波動能力.在工業自動化生產線,精密檢測儀器等設備中,能持續穩定輸出時鐘信號,避免因環境因素導致的設備故障,保障工業系統連續運行.

511FCA156M250CAG|Skyworks思佳訊晶振|Si511貼片晶振|LVDS差分晶振

原廠型號 Originalmodel：	511FCA156M250CAG	品牌brand：	Skyworks晶振
Manufacturer品牌	思佳訊進口晶振	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	Si511	Current-Supply(Max)	23mA
Type類型	XO	PackageHeight高度	1.10mm
Frequency頻率	156.25 MHz	Termination 腳位	6pad
輸出方式 Output：	LVDS	PackageType 封裝類型	6-SMD
Voltage-Supply電壓	2.5V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±7ppm	安裝方式 Installation：	Surfacemount

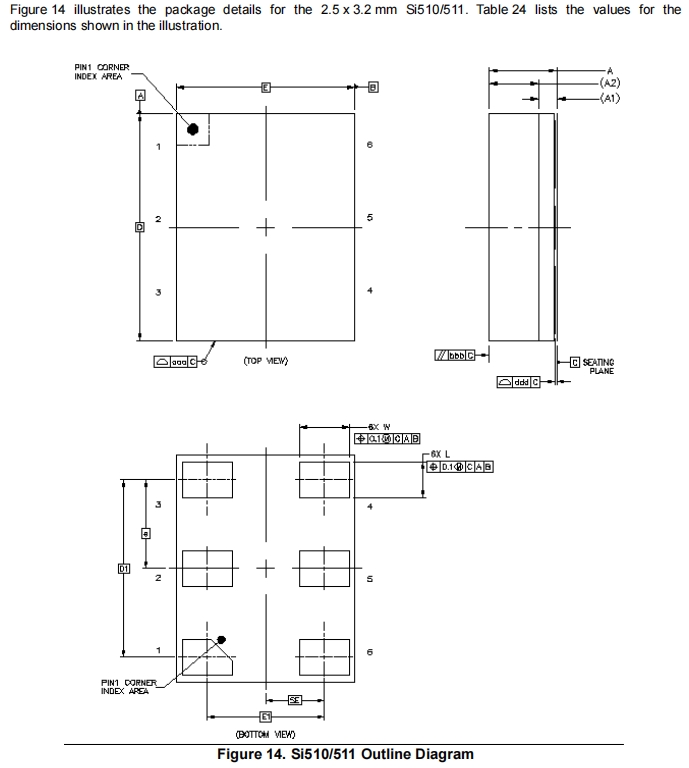

Size/Dimension尺寸	3.20mm x 2.50mm	最小包裝數MPQ：	3000

511FCA156M250CAG|Skyworks思佳訊晶振|Si511貼片晶振|LVDS差分晶振

510BBA156M250BAGR	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA000330BAGR	Skyworks	Si511	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA125M000AAG	Skyworks	Si511	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA100M000AAG	Skyworks	Si511	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA200M000AAG	Skyworks	Si511	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
530BB125M000DG	Skyworks	Si530	XO	125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C
531BC125M000DG	Skyworks	Si531	XO	125 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C
545BAA200M000BBG	Skyworks	Si545	XO	200 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm	-40°C ~ 85°C
570BAB000544DG	Skyworks	Si570	XO	156.25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
510BBA125M000AAGR	Skyworks	Si510	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA156M250AAGR	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511ABA156M250AAGR	Skyworks	Si511	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
511BBA200M000BAGR	Skyworks	Si511	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510MCA50M0000AAGR	Skyworks	Si510	XO	50 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
511BCA160M000BAGR	Skyworks	Si511	XO	160 MHz	LVDS	3.3V	-	-40°C ~ 85°C
510KBA100M000BAG	Skyworks	Si510	XO	100 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA74M2500BAG	Skyworks	Si511	XO	74.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA125M000BAG	Skyworks	Si510	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA100M000BAG	Skyworks	Si510	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510FBA125M000BAG	Skyworks	Si510	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510KCA125M000BAG	Skyworks	Si510	XO	125 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
511BBA000110BAG	Skyworks	Si511	XO	148.35165 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA156M250BAG	Skyworks	Si511	XO	156.25 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA148M500BAG	Skyworks	Si511	XO	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511JBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511FBA200M000BAG	Skyworks	Si511	XO	200 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510BBA200M000BAG	Skyworks	Si510	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511JBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511FCA25M0000BAG	Skyworks	Si511	XO	25 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C
511FCA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C
511SBA156M250BAG	Skyworks	Si511	XO	156.25 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
511JBA135M000BAG	Skyworks	Si511	XO	135 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511JBA200M000BAG	Skyworks	Si511	XO	200 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
540BAA000274BBG	Skyworks	Si540	XO	322.265625 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm	-40°C ~ 85°C
530BA125M000DG	Skyworks	Si530	XO	125 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
531BC106M250DG	Skyworks	Si531	XO	106.25 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C
535AC100M000DG	Skyworks	Si535	XO	100 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C
510CBA25M0000BAGR	Skyworks	Si510	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA100M000BAGR	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA125M000BAGR	Skyworks	Si510	XO	125 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA100M000AAGR	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510GBA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	2.5V	±25ppm	-40°C ~ 85°C
510KBA125M000BAGR	Skyworks	Si510	XO	125 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA106M250AAGR	Skyworks	Si511	XO	106.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510KBA28M6363BAG	Skyworks	Si510	XO	28.6363 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA106M250BAG	Skyworks	Si511	XO	106.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510KCA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
510KCB25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
510CCA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
510CCA100M000BAG	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
511ABA156M250BAG	Skyworks	Si511	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
510CBA50M0000AAG	Skyworks	Si510	XO	50 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510BBA156M250AAG	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA148M500AAG	Skyworks	Si511	XO	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA156M250AAG	Skyworks	Si511	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510ABA156M250AAG	Skyworks	Si510	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
