- 規格型號：79185688
- 頻率：20M
- 尺寸：2520mm
- 產品描述：SXT22416AA16-20.000MT,Suntsu松圖晶振,2520mm晶振,依托Suntsu松圖先進的石英晶體加工技術,該晶振實現±50ppm的頻率精度與-10+60℃溫度工作范圍,仍能保持穩定時序輸出.

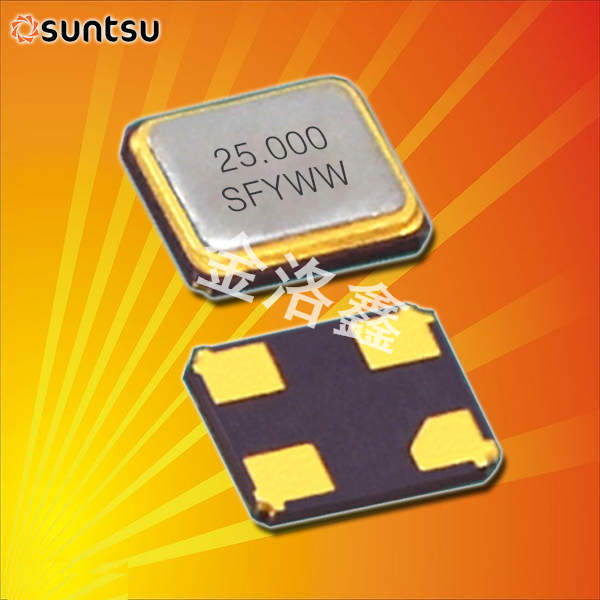

SXT22416AA16-20.000MT,Suntsu松圖晶振,2520mm晶振
.png)
.png)
SXT22416AA16-20.000MT,Suntsu松圖晶振,2520mm晶振
專為工業物聯網,智能傳感器設計的美國松圖Suntsu晶振SXT22416AA16-20.000MT晶振,采用2520mm緊湊封裝,在有限PCB空間內實現高效時序控制.產品內置高純度石英晶片,經過多道溫度補償與老化測試,頻率溫度系數低至±15ppm/℃,可在粉塵,振動等復雜工業環境中精準運行,確保傳感器數據采集,設備通信的時序準確性.此外,其引腳采用無鉛電鍍工藝,提升焊接可靠性與抗氧化能力,配合Suntsu松圖嚴格的品質管控體系,使用壽命長達40000小時以上,大幅降低工業設備維護成本.
.png)
.png)
SXT22416AA16-20.000MT,Suntsu松圖晶振,2520mm晶振
| 原廠型號 Originalmodel： | SXT22416AA16-20.000MT | 品牌brand： | Suntsu |
| 型號名稱 Modelname： | SXT224 | Size/Dimension尺寸 | 2520晶振 |
| Type系列： | MHz Crystal | 高度PackageHeight： | 0.65mm |
| 頻率 frequency： | 20M | 溫度OperatingTemperature | -10+60℃ |
| Frequency Stability頻率穩定度 | - | 腳位Termination： | 4Pad |
| frequencytolerance頻率容差 | 50PP | 封裝類型PackageType： | 4-smd |
| Loadcapacitance 負載電容 | 16PF | 最小包裝數MPQ： | 3000 |
.png)
.png)
SXT22416AA16-20.000MT,Suntsu松圖晶振,2520mm晶振
.png)
.png)
SXT22416AA16-20.000MT,Suntsu松圖晶振,2520mm晶振
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576MT | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA07-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SWS21212D48-32.768K | Suntsu Electronics, Inc. | SWS212 | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-27.000MT | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SWS1127D48-32.768K | Suntsu Electronics, Inc. | SWS112 | 32.768 kHz | - | ±20ppm | 7pF |
| SXT22418FE48-20.000M | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000M | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000MT | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000M | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-27.000M | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000MT | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000M | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576MT | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA07-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SWS21212D48-32.768K | Suntsu Electronics, Inc. | SWS212 | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-27.000MT | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SWS1127D48-32.768K | Suntsu Electronics, Inc. | SWS112 | 32.768 kHz | - | ±20ppm | 7pF |
| SXT22418FE48-20.000M | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000M | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000MT | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000M | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-27.000M | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000MT | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000M | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
