首頁進口晶振1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振

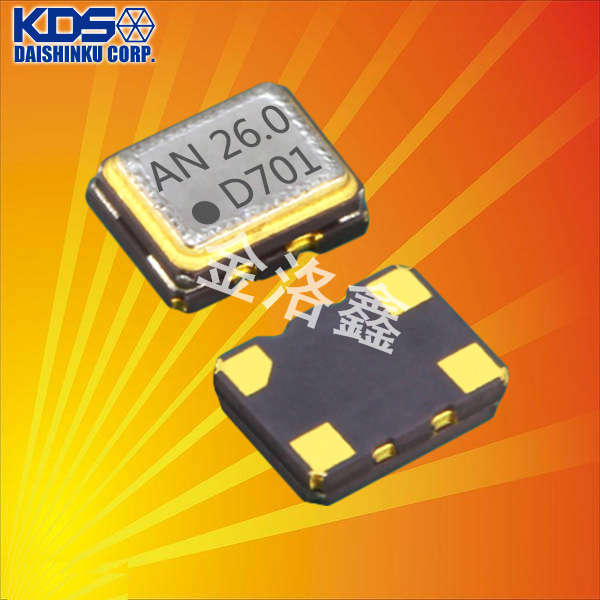

    1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振

  • 規格型號：3534223
  • 頻率：26 MHz
  • 尺寸：2520MM
  • PDF
  • 產品描述：1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振,依托小型化,高精度特性,該晶振在多領域實現精準適配,在消費電子領域,用于5G智能手機的毫米波通信模塊,平板電腦的GPS定位單元,保障通信與定位的實時性.


1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振
作為日本大真空原廠出品的晶振,1XXB26000MAA晶振采用的2520貼片晶振封裝,在小型化設備中展現出顯著優勢,其一,超小體積設計,相較于傳統3225封裝晶振,體積縮減約30%,可直接集成于智能手機射頻模塊,智能穿戴設備主板等緊湊空間,滿足設備輕薄化設計需求,其二,貼片式結構,支持SMT自動化貼片工藝,適配大規模量產生產線,提升設備組裝效率,降低人工成本,其三,穩定的機械結構,封裝外殼采用高強度陶瓷材質,引腳與封裝一體化設計,能減少振動對內部晶片的影響,提升產品抗機械沖擊能力.

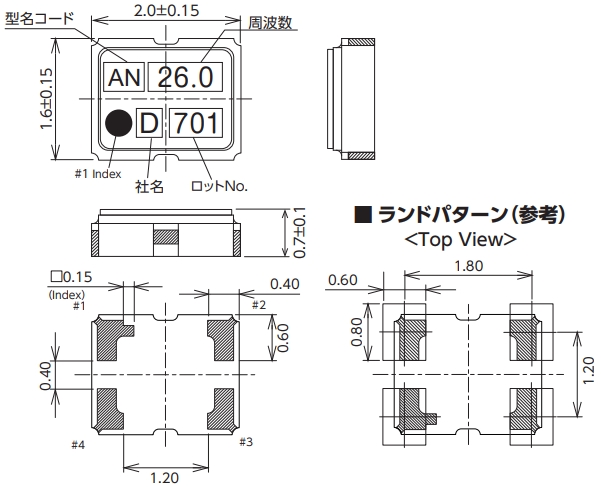

1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振
Original model  原廠編碼 1XXB26000MAA
Manufacturer  品牌 KDS晶振
Part Series  型號 DSB221SDN
Type 類型 TCXO
Frequency  頻率 26MHz
Output Type  輸出方式 正弦波輸出
Supply Voltage  電壓 1.8V~2.8V
Frequency Stability  頻率穩定性 ±1.5ppm
Operating Temperature  工作溫度 -40° / +85°C
Package Size  包裝尺寸 2520mm
Package Height  厚度  -
Termination  腳位 4 pads
Package Type  封裝類型 4-SMD
Lead Free  無鉛 Yes
Mounting Style  安裝方式 Surface Mount
Packaging  包裝 Tape and Reel


1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振


1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振
12.87000  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87001  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 9 pF ± 20 ppm
12.87002  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 7 pF ± 20 ppm
12.87034  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 4 pF ± 20 ppm
12.87080  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87081  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87083  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87086  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 10 ppm
12.87090  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87095  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87105  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 10 ppm
12.87107  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87109  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12 pF ± 15 ppm
12.87110  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87111  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87112  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87113  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87114  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87115  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87116  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87118  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87119  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87120  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87121  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87123  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87126  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87127  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87128  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 20 ppm
12.87129  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87130  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87131  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87132  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87133  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87134  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87135  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87136  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87137  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 9 pF ± 20 ppm
12.87138  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87139  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87143  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87144  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 5.0 ppm
12.87145  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87146  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87147  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87148  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87149  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87150  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87151  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 30 ppm
12.87152  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87153  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87155  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87157  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87158  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87159  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87160  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87161  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87163  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 7 pF ± 20 ppm
12.87164  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 30 ppm
12.87165  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 20 ppm
12.87166  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
