- 規格型號：30256698
- 頻率：54MHz
- 尺寸：3225mm
- 產品描述：7X54070001,TXC有源晶振,耐高溫晶振,采用低功耗電路設計,工作電流低至幾毫安級別,可有效減少設備整體能耗,尤其適合汽車電子,便攜式工業檢測設備等對功耗敏感的場景.

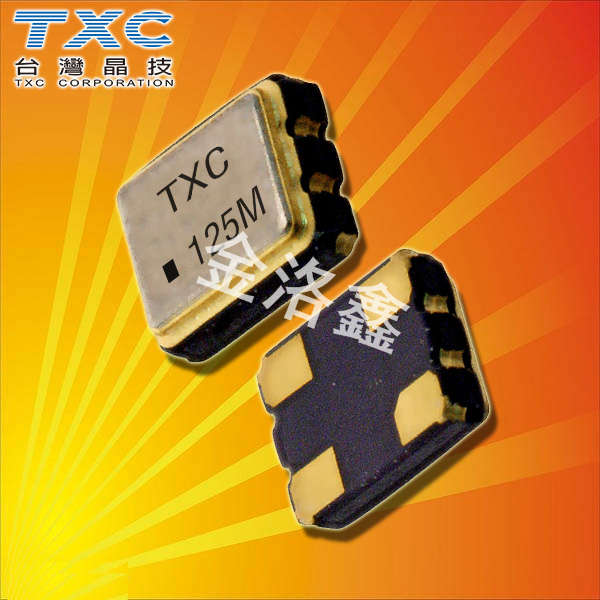

7X54070001,TXC有源晶振,耐高溫晶振
.png)
.png)
7X54070001,TXC有源晶振,耐高溫晶振
該型號晶振深度融合TXC數十年的石英晶體研發經驗,采用先進的高精度石英晶體切割工藝與密封式封裝技術,在常溫條件下,頻率精度可嚴格控制在±10ppm以內,這一精度水平完全滿足通信,工業控制等領域?qū)r鐘信號的高精準要求.更值得關注的是,即便在高低溫頻繁切換的波動區間,通過內部溫度補償電路的精準調節,其頻率漂移量仍能嚴格控制在行業領先的±25ppm以內,確保設備在復雜溫度環境下仍能保持穩定運行.同時,臺灣TXC晶振在生產過程中建立了嚴格的質量管控體系,從原材料篩選到成品檢測,每一個環節都經過精密把控,使得7X54070001的產品批次間一致性優異,不同批次產品的頻率參數偏差極小,能完美滿足批量生產中對時鐘信號統一性的嚴苛要求,廣泛適配5G通信模塊,工業物聯網傳感器,高精度工業控制芯片,醫療設備控制單元等對頻率穩定性要求極高的元器件,為下游產品的性能穩定性提供有力保障.
.png)
.png)
7X54070001,TXC有源晶振,耐高溫晶振
| 原廠型號 Originalmodel： | 7X54070001 | 品牌brand： | TXC |
| Manufacturer品牌 | TXC | OperatingTemperature溫度 | -40°C ~ 105°C |
| Series型號 | 7X | Current-Supply(Max) | 15mA |
| Type類型 | XO | PackageHeight高度 | 1.1mm |
| Frequency頻率 | 54MHz | Termination 腳位 | 4 pad |
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±50ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3225石英貼片晶振 | 最小包裝數MPQ： | 3000 |
.png)
.png)
7X54070001,TXC有源晶振,耐高溫晶振
.png)
7X54070001,TXC有源晶振,耐高溫晶振
| 8NE-20.000MCJ-T | TXC CORPORATION | 8NE | XO (Standard) | 20 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8WE-40.000MCJ-T | TXC CORPORATION | 8WE | XO (Standard) | 40 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8WE-27.000MBJ-T | TXC CORPORATION | 8WE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-37.400MBJ-T | TXC CORPORATION | 8WE | XO (Standard) | 37.4 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8NE-38.400MBJ-T | TXC CORPORATION | 8NE | XO (Standard) | 38.4 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-27.000MCJ-T | TXC CORPORATION | 8WE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8WE-24.000MBJ-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-25.000MCJ-T | TXC CORPORATION | 8WE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8NE-38.400MDJ-T | TXC CORPORATION | 8NE | XO (Standard) | 38.4 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-20.000MBJ-T | TXC CORPORATION | 8WE | XO (Standard) | 20 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-24.000MDJ-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-40.000MCJ-T | TXC CORPORATION | 8NE | XO (Standard) | 40 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8WE-30.000MCJ-T | TXC CORPORATION | 8WE | XO (Standard) | 30 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8NE-25.000MCJ-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8WE-25.000MBJ-T | TXC CORPORATION | 8WE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-37.400MDJ-T | TXC CORPORATION | 8WE | XO (Standard) | 37.4 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-37.400MBJ-T | TXC CORPORATION | 8NE | XO (Standard) | 37.4 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-24.576MDJ-T | TXC CORPORATION | 8WE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-33.333MCJ-T | TXC CORPORATION | 8NE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8WE-20.000MDJ-T | TXC CORPORATION | 8WE | XO (Standard) | 20 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-37.400MCJ-T | TXC CORPORATION | 8NE | XO (Standard) | 37.4 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8NE-33.333MBJ-T | TXC CORPORATION | 8NE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8NE-30.000MBJ-T | TXC CORPORATION | 8NE | XO (Standard) | 30 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-27.000MDJ-T | TXC CORPORATION | 8WE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-40.000MDJ-T | TXC CORPORATION | 8NE | XO (Standard) | 40 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-25.000MBJ-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8NE-24.576MDJ-T | TXC CORPORATION | 8NE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-38.400MCJ-T | TXC CORPORATION | 8WE | XO (Standard) | 38.4 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8WE-25.000MDJ-T | TXC CORPORATION | 8WE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-38.400MCJ-T | TXC CORPORATION | 8NE | XO (Standard) | 38.4 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8NE-27.000MBJ-T | TXC CORPORATION | 8NE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-37.400MCJ-T | TXC CORPORATION | 8WE | XO (Standard) | 37.4 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8NE-25.000MDJ-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-38.400MDJ-T | TXC CORPORATION | 8WE | XO (Standard) | 38.4 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-30.000MBJ-T | TXC CORPORATION | 8WE | XO (Standard) | 30 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8NE-24.000MDJ-T | TXC CORPORATION | 8NE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-40.000MDJ-T | TXC CORPORATION | 8WE | XO (Standard) | 40 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-40.000MBJ-T | TXC CORPORATION | 8NE | XO (Standard) | 40 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-33.333MBJ-T | TXC CORPORATION | 8WE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-20.000MCJ-T | TXC CORPORATION | 8WE | XO (Standard) | 20 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8NE-30.000MCJ-T | TXC CORPORATION | 8NE | XO (Standard) | 30 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8WE-24.000MCJ-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8NE-27.000MDJ-T | TXC CORPORATION | 8NE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-24.576MCJ-T | TXC CORPORATION | 8NE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 2.5V | ±50ppm |
| 8NE-30.000MDJ-T | TXC CORPORATION | 8NE | XO (Standard) | 30 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 7CL-32.000MBD-T | TXC CORPORATION | 7CL | XO (Standard) | 32 MHz | CMOS | 3.3V | ±25ppm |
| 7CL-32.3330MBD-T | TXC CORPORATION | 7CL | XO (Standard) | 32.333 MHz | CMOS | 3.3V | ±25ppm |
| 7CL-14.31818MBD-T | TXC CORPORATION | 7CL | XO (Standard) | 14.31818 MHz | CMOS | 3.3V | ±25ppm |
| 7CL-6.000MBD-T | TXC CORPORATION | 7CL | XO (Standard) | 6 MHz | CMOS | 3.3V | ±25ppm |
| 7CL-166.000MDD-T | TXC CORPORATION | 7CL | XO (Standard) | 166 MHz | CMOS | 1.8V | ±25ppm |
| 7C-12.288MBB-T | TXC CORPORATION | 7C | XO (Standard) | 12.288 MHz | CMOS | 3.3V | ±50ppm |
| 7C-33.000MDB-T | TXC CORPORATION | 7C | XO (Standard) | 33 MHz | CMOS | 1.8V | ±50ppm |
| 7C-1.8432MBB-T | TXC CORPORATION | 7C | XO (Standard) | 1.8432 MHz | CMOS | 3.3V | ±50ppm |
| 7C-38.400MDA-T | TXC CORPORATION | 7C | XO (Standard) | 38.4 MHz | CMOS | 1.8V | ±25ppm |
| 7C-49.152MBB-T | TXC CORPORATION | 7C | XO (Standard) | 49.152 MHz | CMOS | 3.3V | ±50ppm |
| 7C-54.000MBB-T | TXC CORPORATION | 7C | XO (Standard) | 54 MHz | CMOS | 3.3V | ±50ppm |
| 7C-9.8304MBD-T | TXC CORPORATION | 7C | XO (Standard) | 9.8304 MHz | CMOS | 3.3V | ±25ppm |
| 7C-2.048MBD-T | TXC CORPORATION | 7C | XO (Standard) | 2.048 MHz | CMOS | 3.3V | ±25ppm |
| 7C-8.192MBB-T | TXC CORPORATION | 7C | XO (Standard) | 8.192 MHz | CMOS | 3.3V | ±50ppm |
| 7C-30.000MBB-T | TXC CORPORATION | 7C | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm |
