- 規格型號：98044390
- 頻率：32.768K
- 尺寸：3215mm
- 產品描述：Q-SC32S0322070AAAF,32.768KHz精工晶振,3215音叉晶振,具有超小型,薄型和質地輕的特點,尺寸僅為3.2mm×1.5mm,高度約0.9mm.適用于辦公自動化,家電,移動通信等領域.

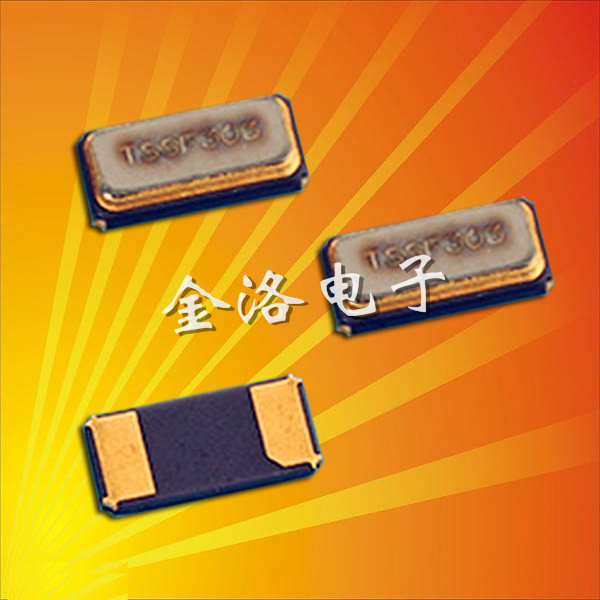

Q-SC32S0322070AAAF,32.768KHz精工晶振,3215音叉晶振
.png)
.png)
Q-SC32S0322070AAAF,32.768KHz精工晶振,3215音叉晶振
Q-SC32S0322070AAAF是日本精工晶振推出的一款3215音叉晶振,其標準頻率為32.768KHz.這款晶振的抗沖擊性能較好,但在使用過程中仍需注意避免從桌上跌落或在貼裝過程中受到強烈沖擊,否則可能會損壞內部晶片.它的工作溫度范圍較廣,能在-40℃至+85℃的環境下正常工作,可適應多種不同的使用環境,如工業控制設備,汽車電子等對溫度適應性有一定要求的場景.
.png)
.png)

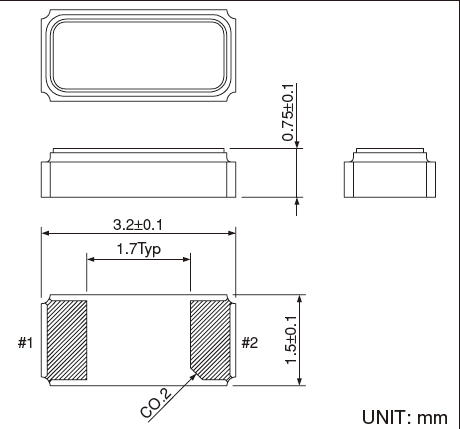

Q-SC32S0322070AAAF,32.768KHz精工晶振,3215音叉晶振
| 原廠型號 Originalmodel： | Q-SC32S0322070AAAF | 品牌brand： | Seiko |
| 品牌brand： | Seiko | 高度PackageHeight： | 0.75mm |
| 型號名稱 Modelname： | SC-32S晶振 | 溫度OperatingTemperature | -40+85℃ |
| Type系列： | KHz Crystal | 腳位Termination： | 2-pad |
| 頻率 frequency： | 32.768K | 封裝類型PackageType： | 2-smd |
| frequencytolerance頻率容差 | 20PP | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 7PF | Packaging 包裝 | TapeandReel |
| Size/Dimension尺寸 | 3215mm | 安裝方式 Installation： | Surfacemount |
.png)
.png)
Q-SC32S0322070AAAF,32.768KHz精工晶振,3215音叉晶振
.png)
.png)
Q-SC32S0322070AAAF,32.768KHz精工晶振,3215音叉晶振
| Q-SPT7P032762070FF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SPT7P032761070FF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
| Q-SPT7P032760570FF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 7pF |
| Q-SC32S03220C5AAE | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SC32S03210C5AFE | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SC32S03205C5ADE | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC32S0321060AAAF | - | SC-32S | - | 32.768kHz | ±10ppm | 6PF |
| Q-SC32S0320570CADF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 7pF |
| Q-SC32S0321070CAAF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
| Q-SC32S0322070AAAF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SC32S03220C5AAAF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SC32S03210C5AAFF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SC32S03205C5AADF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC20S0322070CAAF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SC20S0321070CAFF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
| Q-SC20S0320570CADF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 7pF |
| VT200F-6PF20PPM | Seiko Instruments | VT-200-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 6pF |
| VT200F-12.5PF20PPM | Seiko Instruments | VT-200-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SPT7P0327620C5GF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SPT7P0327610C5GF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SPT7P0327605C5GF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC16S03220C5AAAF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SC16S03210C5AAAF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SC16S03205C5AAAF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC16S0322070CAAF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SC16S0321070CAFF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
| Q-SC16S0320570CADF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 7pF |
| Q-SC20S03220C5AAAF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SC20S03210C5AAAF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SC20S03205C5AAAF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC20S0322070CAAF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SC20S0321070CAFF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
| Q-SC20S0320570CADF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 7pF |
| Q-SPT2S0327620C5DJ | Seiko Instruments | SSP-T2A-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SPT7P032762070FF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SPT7P032761070FF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
| Q-SPT7P032760570FF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 7pF |
| Q-SC32S03220C5AAE | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SC32S03210C5AFE | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SC32S03205C5ADE | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC32S0321060AAAF | SC-32S | 32.768kHz | ±10ppm | 6PF | ||
| Q-SC32S0320570CADF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 7pF |
| Q-SC32S0321070CAAF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
| Q-SC32S0322070AAAF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SC32S03220C5AAAF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SC32S03210C5AAFF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SC32S03205C5AADF | Seiko Instruments | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC20S0322070CAAF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SC20S0321070CAFF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
| Q-SC20S0320570CADF | Seiko Instruments | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 7pF |
| VT200F-6PF20PPM | Seiko Instruments | VT-200-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 6pF |
| VT200F-12.5PF20PPM | Seiko Instruments | VT-200-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SPT7P0327620C5GF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SPT7P0327610C5GF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SPT7P0327605C5GF | Seiko Instruments | SSP-T7-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC16S03220C5AAAF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 12.5pF |
| Q-SC16S03210C5AAAF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 12.5pF |
| Q-SC16S03205C5AAAF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm | 12.5pF |
| Q-SC16S0322070CAAF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm | 7pF |
| Q-SC16S0321070CAFF | Seiko Instruments | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm | 7pF |
