- 規格型號：20340434
- 頻率：38.4 MHz
- 尺寸：2016mm
- 產品描述：TZETADSANF-38.400000|智能手機晶振|可穿戴電子設備|Taitien晶振,采用微型封裝設計,可輕松融入智能手環,智能眼鏡等設備的微型主板,同時38.400000MHz頻率能為設備的傳感器數據采集(如心率,血氧檢測)

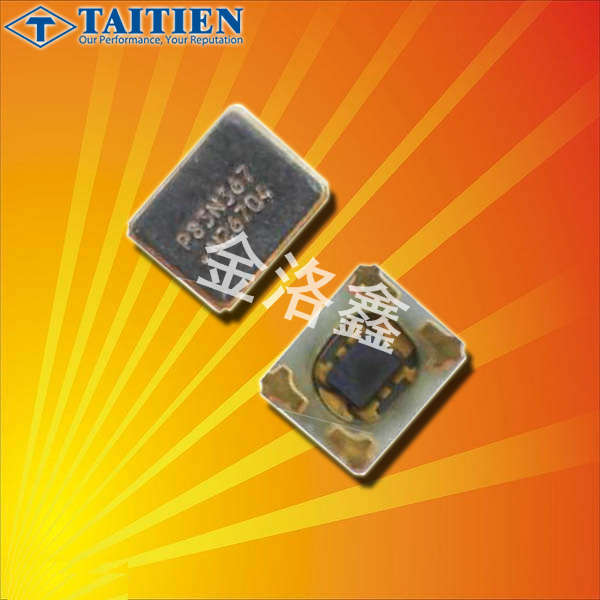

TZETADSANF-38.400000|智能手機晶振|可穿戴電子設備|Taitien晶振
.png)
.png)
TZETADSANF-38.400000|智能手機晶振|可穿戴電子設備|Taitien晶振
針對智能手機對通信穩定性的高要求,TZETADSANF-38.400000晶振依托Taitien石英晶振成熟的晶體制造工藝,實現低相位噪聲(典型值-140dBc/Hz@1kHz),減少信號傳輸過程中的干擾與失真,保障5G網絡下的語音通話清晰度與視頻通話流暢度.38.400000MHz頻率完美匹配智能手機基帶芯片與射頻模塊的時鐘需求,無需復雜信號轉換即可直接集成,同時小巧的貼片封裝(適配手機緊湊主板)與低功耗設計(靜態電流低至2mA),滿足手機輕薄化與長續航的雙重訴求.
.png)
.png)
TZETADSANF-38.400000|智能手機晶振|可穿戴電子設備|Taitien晶振
| 原廠型號 Originalmodel： | TZETADSANF-38.400000 | 品牌brand： | Taitien |
| Manufacturer品牌 | Taitien | OperatingTemperature溫度 | -30°C ~ 85°C |
| Series型號 | TZ | Current-Supply(Max) | 2mA |
| Type類型 | TCXO | PackageHeight高度 | 0.8mm |
| Frequency頻率 | 38.4 MHz | Termination 腳位 | 6pad |
| 輸出方式 Output： | Clipped Sine Wave | PackageType 封裝類型 | 6-SMD |
| Voltage-Supply電壓 | 2.8V ~ 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±500ppb電信系統晶振 | 安裝方式 Installation： | Surfacemount |

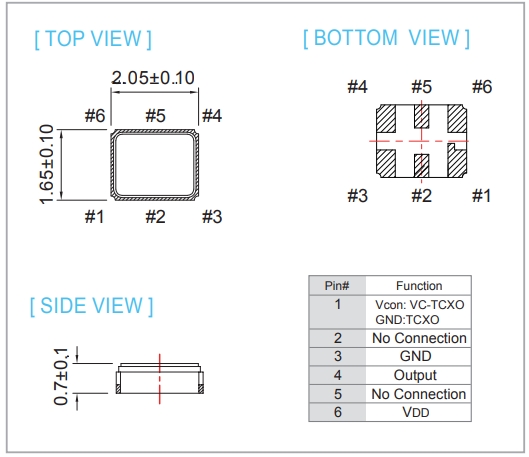

| Size/Dimension尺寸 | 2.05mm x 1.65mm | 最小包裝數MPQ： | 1000 |
.png)
.png)
TZETADSANF-38.400000|智能手機晶振|可穿戴電子設備|Taitien晶振
.png)
TZETADSANF-38.400000|智能手機晶振|可穿戴電子設備|Taitien晶振
| OCETGCJTNF-48.000000 | Taitien | OC | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| OXETDCJANF-0.032768 | Taitien | OX | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| TZKTADSANF-26.000000 | Taitien | TZ | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb | -30°C ~ 85°C |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEABLSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXKTPCSANF-32.000000 | Taitien | TX | TCXO | 32 MHz | Clipped Sine Wave | 1.8V | ±1.5ppm | -20°C ~ 70°C |
| TXEAADSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -30°C ~ 85°C |
| TXETALSANF-10.000000 | Taitien | TX | TCXO | 10 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -40°C ~ 85°C |
| TYETBCSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -20°C ~ 70°C |
| TYETBLSANF-40.000000 | Taitien | TY | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TYEAPLSANF-40.000000 | Taitien | TY | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -40°C ~ 85°C |
| TYETACSANF-26.000000 | Taitien | TY | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TYEAACSANF-38.400000 | Taitien | TY | VCTCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| VLCUWCWTNF-100.000000 | Taitien | VLCU | VCXO | 100 MHz | Sine Wave | 5V | ±35ppm | -20°C ~ 70°C |
| TSEAALJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| TWETALJANF-40.000000 | Taitien | TW | TCXO | 40 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| TWEAKLJANF-20.000000 | Taitien | TW | VCTCXO | 20 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTETKLJANF-10.000000 | Taitien | TT | TCXO | 10 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTEAKLJANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTETKLSANF-10.000000 | Taitien | TT | TCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±280ppb | -40°C ~ 85°C |
| TSEATLJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±4.6ppm | -40°C ~ 85°C |
| TWETMCJANF-10.000000 | Taitien | TW | TCXO | 10 MHz | CMOS | 3.3V | ±100ppb | -20°C ~ 70°C |
| TTEAALJANF-50.000000 | Taitien | TT | VCTCXO | 50 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| NNENCLJNNF-10.000000 | Taitien | NN | OCXO | 10 MHz | CMOS | 3.3V | ±20ppb | -40°C ~ 85°C |
| NI-10M-2400 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb | -30°C ~ 70°C |
| NI-10M-2403 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb | -40°C ~ 85°C |
| NI-10M-2503 | Taitien | NI-10M-2500 | OCXO | 10 MHz | Sine Wave | 5V | ±3ppb | -40°C ~ 85°C |
| NI-100M-2900 | Taitien | NI-100M-2900 | OCXO | 100 MHz | Sine Wave | 12V | ±50ppb | -40°C ~ 85°C |
| NA-100M-6822 | Taitien | NA-100M-6800 | OCXO | 100 MHz | Sine Wave | 12V | ±100ppb | -40°C ~ 85°C |
| OCKTGLJANF-0.032768 | Taitien | OC | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| TXETCLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -40°C ~ 85°C |
| TXETDDSANF-16.000000 | Taitien | TX | TCXO | 16 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETDCSANF-20.000000 | Taitien | TX | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -20°C ~ 70°C |
| TXETBLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -30°C ~ 85°C |
| TXETDDSANF-30.000000 | Taitien | TX | TCXO | 30 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEAPDSANF-19.200000 | Taitien | TX | VCTCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -30°C ~ 85°C |
| TXEAPLSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -40°C ~ 85°C |
| TXEACDSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -30°C ~ 85°C |
| TXEACDSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -30°C ~ 85°C |
| TXETBLSANF-27.000000 | Taitien | TX | TCXO | 27 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXETBLSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -40°C ~ 85°C |
| TXEAACSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TXEAADSANF-25.000000 | Taitien | TX | VCTCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -30°C ~ 85°C |
| TYETBLSANF-38.400000 | Taitien | TY | TCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TYETBCSANF-50.000000 | Taitien | TY | TCXO | 50 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -20°C ~ 70°C |
| TYETACSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TYETACSANF-20.000000 | Taitien | TY | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| PYEUCJJANF-100.000000 | Taitien | FASTXO | XO (Standard) | 100 MHz | CMOS | 2.8V ~ 3.3V | ±20ppm | -40°C ~ 105°C |
| TWEAALSANF-10.000000 | Taitien | TW | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±500ppb | -40°C ~ 85°C |
| TTETKLJANF-30.720000 | Taitien | TT | TCXO | 30.72 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTEAMCSANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±100ppb | -20°C ~ 70°C |
| OYKTGLJANF-0.032768 | Taitien | OY | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| OYETDLJANF-25.000000 | Taitien | OY | XO | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| TXETDDSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETCLSANF-25.000000 | Taitien | TX | TCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -40°C ~ 85°C |
