- 規格型號：11117095
- 頻率：24.576 MHz
- 尺寸：5.00mm x 3.20mm
- 產品描述：XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振,24.576MHz頻率與音頻處理芯片高度匹配,能減少音頻信號處理過程中的時序誤差,降低音質失真,提升影音播放的流暢度與清晰度
XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振
.png)
.png)
XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振

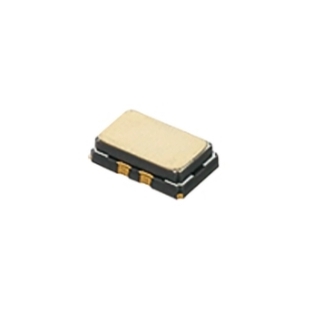

XNCLH24M576CHJA8P0是Murata村田XNCLH系列下的一款高性能有源晶振,專為家用設備的時鐘信號需求設計,核心解決家用場景中設備對時鐘穩定性,易用性的雙重訴求.型號中"24M576"明確標稱頻率為24.576MHz,該頻率是家用電子設備(如智能家居自動化晶振,影音設備)中主流的時鐘頻率,能精準匹配MCU,音頻處理芯片,通信模塊的同步需求,作為有源晶振,其內置完整振蕩電路,無需外部驅動組件即可直接輸出穩定時鐘信號,省去家用設備電路設計中額外的驅動電路搭建步驟,降低硬件設計復雜度,是家用設備實現精準控制與高效功能的關鍵元器件.
.png)
.png)
XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振
| 原廠型號 Originalmodel： | XNCLH24M576CHJA8P0 | 品牌brand： | Murata村田晶振 |
| Manufacturer品牌 | Murata村田晶振 | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | XNCLH | Current-Supply(Max) | 3.5mA |
| Type類型 | TCXO工業應用晶振 | PackageHeight高度 | 1.50mm |
| Frequency頻率 | 24.576 MHz | Termination 腳位 | 8pad |
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 8-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±280ppb | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 5.00mm x 3.20mm | 最小包裝數MPQ： | 1000 |
.png)
.png)
XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振
.png)
.png)
XNCLH24M576CHJA8P0|XNCLH有源晶振|家用設備晶振|高性能晶振
| XRCGB25M000F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB27M120F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB32M000F1H01R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF |
| XRCGB32M000F1H00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 6pF |
| XRCGB25M000F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±35ppm | ±35ppm | 6pF |
| XRCGB24M000F0L00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB48M000F4M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 48 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB24M000F3N00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 6pF |
| XRCGB27M120F3M10R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 10pF |
| XRCGB25M000F3M18R0 | Murata村田晶振 | - | MHz Crystal | 25 MHz | ±40ppm | ±30ppm | 12pF |
| XRCGB32M000F2P01R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB32M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB25M000F2P02R0 | Murata村田晶振 | - | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB27M120F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB25M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB24M000F2P01R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB27M120F3M13R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 10pF |
| XRCGB32M000F2P2CR0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB32M000FBH50R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±15ppm | 10pF |
| XRCGB24M000F2P91R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB16M000FXN00R0 | Murata村田晶振 | - | MHz Crystal | 16 MHz | ±40ppm | ±40ppm | 6pF |
| XRCGB32M000F1H02R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 10pF |
| XRCGB32M000F1H19R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 6pF |
| XRCGB40M000F5A00R0 | Murata村田晶振 | - | MHz Crystal | 40 MHz | ±65ppm | ±50ppm | 6pF |
| XRCGB24M000F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGB27M120F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGB25M000F3A01R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±35ppm | ±30ppm | 8pF |
| XRCGB48M000F5A00R0 | Murata村田晶振 | - | MHz Crystal | 48 MHz | ±65ppm | ±50ppm | 6pF |
| XRCGE25M000FBA1AR0 | Murata村田晶振 | XRCFD | MHz Crystal | 25 MHz | ±35ppm | ±15ppm | 6pF |
| XRCHA20M000F0A01R0 | Murata村田晶振 | XRCHA | MHz Crystal | 20 MHz | ±100ppm | ±100ppm | 8pF |
| XRCGB27M120F0L00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB32M000F0L00R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB24M000FAN00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±25ppm | 6pF |
| XRCGB38M400F4M00R0 | Murata村田晶振 | - | MHz Crystal | 38.4 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB50M000F4M00R0 | Murata村田晶振 | - | MHz Crystal | 50 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB32M000F3M00R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F3M13R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB32M000F2P02R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB30M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 30 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB27M120F2P02R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB32M000F2P26R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 5pF |
| XRCGB31M250F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 31.25 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB27M120F3G00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±50ppm | ±30ppm | 6pF |
| XRCGB16M000FXN22R0 | Murata村田晶振 | XRCGB | MHz Crystal | 16 MHz | ±40ppm | ±40ppm | 8pF |
| XRCGB27M600F2C00R0 | Murata村田晶振 | - | MHz Crystal | 27.6 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB24M000F1H01R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 8pF |
| XRCGB26M000F1H02R0 | Murata村田晶振 | - | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 10pF |
| XRCGB24M000F1H70R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±20ppm | ±10ppm | 6pF |
| XRCGB32M000F1H83R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 9pF |
| XRCGE27M000FBA1AR0 | Murata村田晶振 | XRCGE | MHz Crystal | 27 MHz | ±35ppm | ±15ppm | 6pF |
| XRCGB26M000F3A00R0 | Murata村田晶振 | - | MHz Crystal | 26 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGE26M000FBA1BR0 | Murata村田晶振 | XRCGE | MHz Crystal | 26 MHz | ±35ppm | ±15ppm | 8pF |
| XRCGE20M000F3A1AR0 | Murata村田晶振 | XRCFD | MHz Crystal | 20 MHz | ±45ppm | ±30ppm | 6pF |
| XRCGB24M000F2A01R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±35ppm | ±20ppm | 8pF |
| XRCGB27M120F3P00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±20ppm | ±30ppm | 6pF |
| XRCGB32M000F2P55R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 6pF |
| XRCPB26M000F2P00R0 | Murata村田晶振 | XRCPB | MHz Crystal | 26 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB32M000F1H18R0 | Murata村田晶振 | XRCFD | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 9pF |
