CRYSTEK新品CVCO55CC-1630-1630壓控振蕩器
來源：http://www.benpai.com.cn 作者：金洛鑫電子 2024年04月09
自1958年以來，Crystek公司一直提供頻率產品，包括石英晶體、XOs（時鐘振蕩器）、TCXOs（溫度補償晶體振蕩器）、VCOs（壓控晶體振蕩器）和VCXOs（壓控晶體振蕩器）。Crystek經營著兩個致力于頻率控制的部門。Crystek Crystals致力于開發和制造使用石英諧振器的頻率產品。Crystek Microwave為微波行業開發頻率控制和支持產品。其它產品包括:PLL（鎖相環）頻率合成器、RedBox VCOs、RF同軸電纜組件、RF電纜連接器、散裝RF同軸電纜、RF功率檢波器、濾波器、衰減器、DC模塊、無源倍頻器、RFPRO（袖珍參考振蕩器）、連接器放大器、VCO評估板和
CRYSTEK新品CVCO55CC-1630-1630壓控振蕩器
Crystek的CVCO55CC-1630-1630 VCO（壓控振蕩器），工作頻率為1630MHz，控制電壓范圍為0.3V至4.7V。這款VCO有源晶振的典型相位噪聲為-120dBc/Hz（10kHz偏移），具有出色的線性度。輸出功率通常為+2.5dBm。

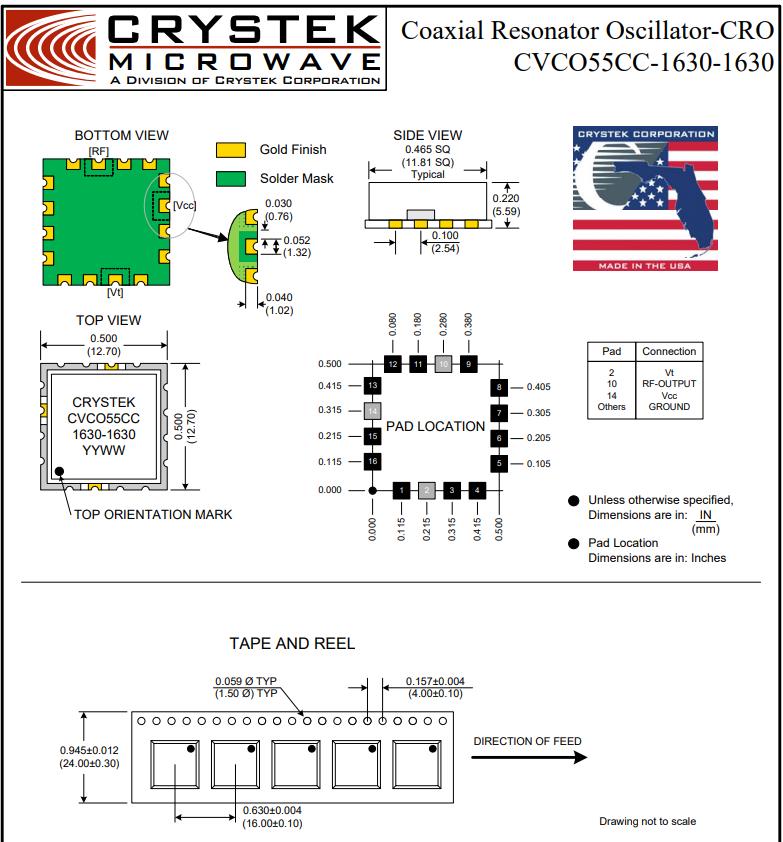

CVCO55CC-1630-1630型號在美國設計和制造，采用行業標準的0.5x0.5英寸SMD封裝。輸入電壓為5V，最大電流消耗為25mA。拉和推分別降至2.0MHz峰峰值和1.0MHz/V。二次諧波抑制典型值為-15dBc。
CVCO55CC-1630-1630進口晶振非常適合數字無線電設備、固定無線接入、衛星通信系統和基站等應用。
| Part Number | CVCO55CC-1630-1630 |
| Frequency (MHz) | 1630 |
| P/N 10kHz (dBc/Hz) | -120 |
| Tuning Voltage (VDC) | 0.3 to 4.7 |
| Kvco (MHz/V) | 10 |
| 2nd Harm (dBc) | -15 |
| Output Power (dBm) | 2.5±2.5 |
| Operating Temp (℃) | -40 to 85 |
| Vcc (VDC) | 5.0±0.25 |
| Icc Max (mA) | 25 |
| Specification | CVCO55CC-1630-1630.pdf |
| Notes |
