目前在晶振這個行業里，越小的尺寸越吃香，因為現在的產品大部分都比較小型，方便攜帶甚至是可折疊，石英晶振做為電子數碼，科技智能產品比較重要的電子元器件，對體積的要求是非常嚴格的。帶電壓有源的貼片晶振是現在比較熱門的，5032mm，3225mm和2520mm都是現在市場上比較常見的封裝，可廣泛應用到各行各業中去。差分晶振是現在振蕩器中比較高端的一種，因為生產難度大，工藝技術復雜，所以要研制出小體積并不容易，哪怕是愛普生晶振公司，如今成功量產的LVDS差分晶振尺寸較小的是3.2*2.5mm，型號是SG3225VAN晶振，現在我們來看看這個料號所有的原廠編碼及其代表的參數含義。
愛普生SG3225VAN晶振LVDS差分輸出系列原廠編碼：

原廠編碼	型號	頻率	封裝	輸出	工作溫度
X1G0042410001	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410002	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410004	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410005	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410006	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410007	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410008	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410009	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410010	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410011	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410012	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410014	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410015	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410016	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410017	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410020	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410021	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410023	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410024	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410025	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410026	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410027	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410028	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410029	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410030	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410031	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410033	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410034	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410035	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410036	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410039	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410040	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410042	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410043	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410044	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410045	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410046	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410047	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410048	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410049	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410050	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410052	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410053	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410054	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410055	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410058	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410059	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410061	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410062	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410063	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410064	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410065	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410066	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410067	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410068	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410069	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410071	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410072	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410073	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410074	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410079	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410080	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410083	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410084	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410087	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410088	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410092	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410100	SG3225VAN	133.333333 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-20 to 70 °C
X1G0042410101	SG3225VAN	148.350000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410102	SG3225VAN	114.285000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410103	SG3225VAN	250.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410104	SG3225VAN	350.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410105	SG3225VAN	80.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410106	SG3225VAN	98.304000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C
X1G0042410108	SG3225VAN	297.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	-40 to 85 °C

LVDS輸出是比較典型的差分晶振輸出方式，穩定性好，可靠性高，一直以來都是廣大客戶使用最多的一種差分輸出晶振，因為愛普生的品牌效應和好口碑，許多生產廠家在選購差分晶振時，都會選擇這顆SG3225VAN晶振，而且因為小巧的體積更受歡迎。

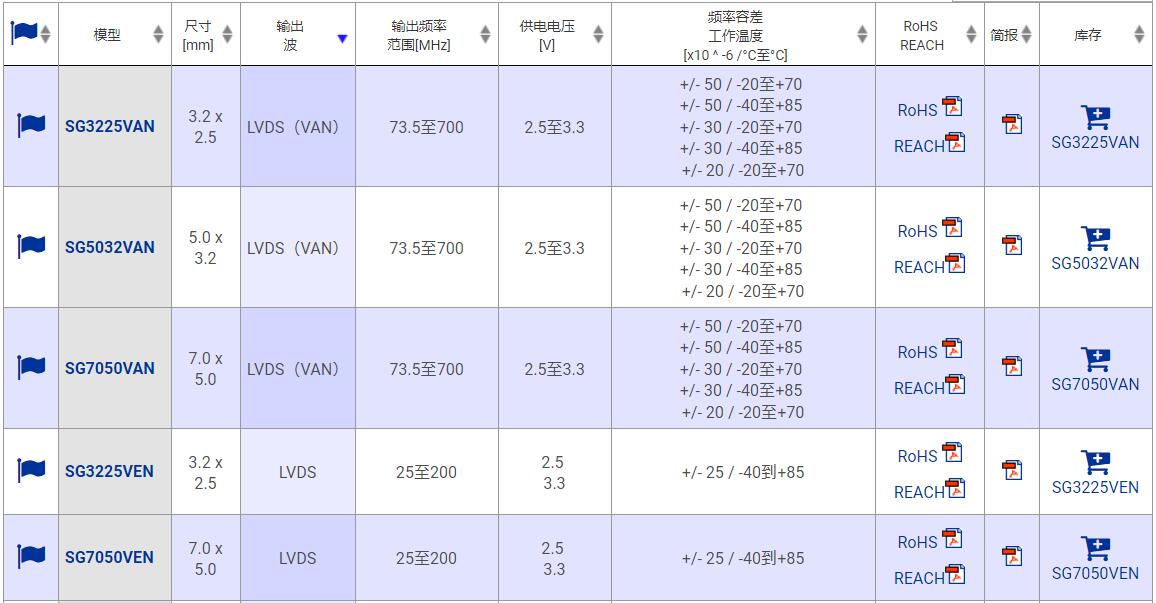

SG3225VAN差分晶振同系列型號表：

愛普生晶振公司研發的LVDS晶振型號算是行業里比較多的，而且尺寸也比較小，工作溫度范圍有-20℃~+70℃和-40℃~+85℃兩種可選，除了3225mm的封裝之外，還有7050mm，5032mm，想知道更完整更詳細的愛普生差分晶振原廠編碼，可聯系金洛鑫電子提供，歡迎致電：0755-27837162！
