首頁進口晶振 AKER晶振C1E-96.000-8-1216-X2-R,96MHz,2016mm,臺灣AKER安基晶振

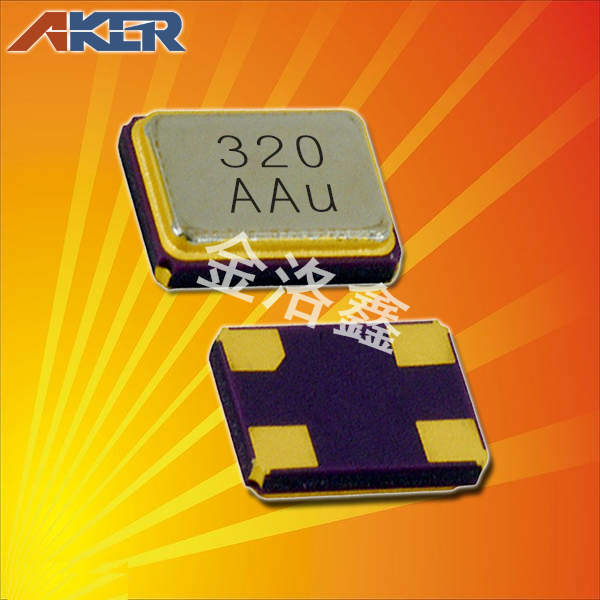

C1E-96.000-8-1216-X2-R,96MHz,2016mm,臺灣AKER安基晶振

規格型號：7379035
頻率：96MHz
尺寸：2.0×1.6mm
PDF
產品描述：C1E-96.000-8-1216-X2-R晶振,,臺灣AKER安基晶振,C1E石英晶振,頻率96MHz,2016mm小體積晶振,SMD進口晶體,無源晶振,耐高溫晶振,微處理器晶振,網絡終端晶振,汽車影音晶振,GPS定位器晶振,汽車動力轉向控制器晶振.

C1E-96.000-8-1216-X2-R,96MHz,2016mm,臺灣AKER安基晶振,C1E-96.000-8-1216-X2-R晶振,臺灣AKER安基晶振,C1E石英晶振,頻率96MHz,2016mm小體積晶振,SMD進口晶體,無源晶振,耐高溫晶振,微處理器晶振,網絡終端晶振,汽車影音晶振,GPS定位器晶振,汽車動力轉向控制器晶振.

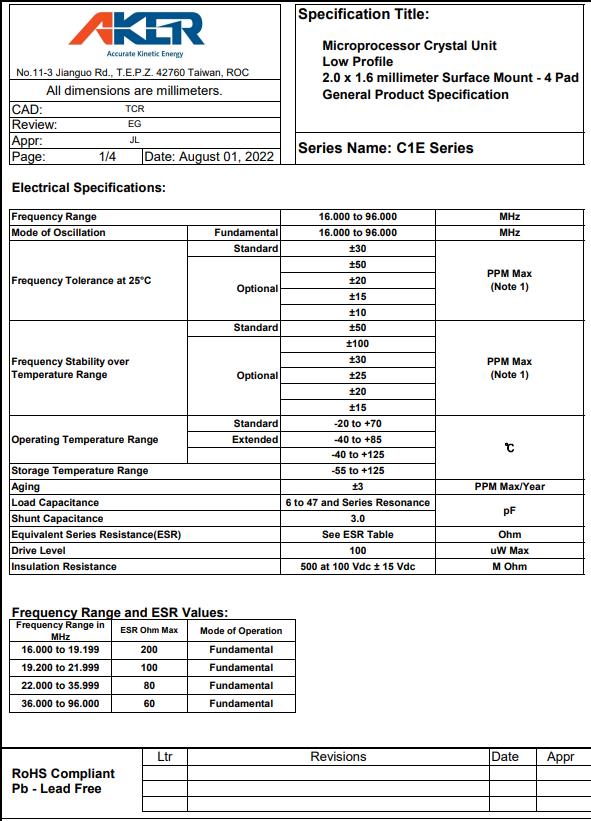

C1E-96.000-8-1216-X2-R,96MHz,2016mm,臺灣AKER安基晶振,參數圖

規格參數			MAX (除非有特殊說明)
頻率			96MHz
頻率公差 (at +25°C)			± 12PPM
溫度范圍內的頻率穩定性			± 16PPM
工作溫度			-40°C to +105°C
保存溫度			-55°C to +150°C
老化			±3ppm
并聯電容 (C0)			3 pF
負載電容 (CL)			8 pF
激勵功率			100 μW Max
等效串聯電阻(ESR)			60 Ω
絕緣電阻			500 at 100 Vdc ± 15 VdcM Ohm

C1E-96.000-8-1216-X2-R,96MHz,2016mm,臺灣AKER安基晶振尺寸圖

AKER晶振原廠編號	品牌供應商	型號	頻率	頻率穩定性	頻率容差	負載電容
C1E-96.000-8-1216-X2-R	Aker晶振	C1E	96 MHz	±16ppm	±12ppm	8pF
C1E-25.000-20-2030-R	Aker晶振	C1E	25 MHz	±30ppm	±20ppm	20pF
C1E-26.000-20-2030-R	Aker晶振	C1E	26 MHz	±30ppm	±20ppm	20pF
C1E-27.000-20-2030-R	Aker晶振	C1E	27 MHz	±30ppm	±20ppm	20pF
C1E-28.000-20-2030-R	Aker晶振	C1E	28 MHz	±30ppm	±20ppm	20pF
C1E-29.000-20-2030-R	Aker晶振	C1E	29 MHz	±30ppm	±20ppm	20pF
C1E-30.000-20-2030-R	Aker晶振	C1E	30 MHz	±30ppm	±20ppm	20pF
C1E-31.000-20-2030-R	Aker晶振	C1E	31 MHz	±30ppm	±20ppm	20pF
C1E-32.000-20-2030-R	Aker晶振	C1E	32 MHz	±30ppm	±20ppm	20pF
C1E-33.000-20-2030-R	Aker晶振	C1E	33 MHz	±30ppm	±20ppm	20pF
C1E-34.000-20-2030-R	Aker晶振	C1E	34 MHz	±30ppm	±20ppm	20pF
C1E-35.000-20-2030-R	Aker晶振	C1E	35 MHz	±30ppm	±20ppm	20pF
C1E-36.000-20-2030-R	Aker晶振	C1E	36 MHz	±30ppm	±20ppm	20pF
C1E-37.000-20-2030-R	Aker晶振	C1E	37 MHz	±30ppm	±20ppm	20pF
C1E-38.000-20-2030-R	Aker晶振	C1E	38 MHz	±30ppm	±20ppm	20pF
C1E-39.000-20-2030-R	Aker晶振	C1E	39 MHz	±30ppm	±20ppm	20pF
C1E-40.000-20-2030-R	Aker晶振	C1E	40 MHz	±30ppm	±20ppm	20pF
C1E-41.000-20-2030-R	Aker晶振	C1E	41 MHz	±30ppm	±20ppm	20pF
C1E-42.000-20-2030-R	Aker晶振	C1E	42 MHz	±30ppm	±20ppm	20pF
C1E-43.000-20-2030-R	Aker晶振	C1E	43 MHz	±30ppm	±20ppm	20pF
C1E-44.000-20-2030-R	Aker晶振	C1E	44 MHz	±30ppm	±20ppm	20pF
C1E-45.000-20-2030-R	Aker晶振	C1E	45 MHz	±30ppm	±20ppm	20pF
C1E-24.000-8-1515-R	Aker晶振	C1E	24 MHz	±15ppm	±15ppm	8pF
C1E-16.000-10-1010-R	Aker晶振	C1E	16 MHz	±10ppm	±10ppm	10pF
C1E-32.000-10-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1015-M	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C1E-48.000-8-1015-X-R	Aker晶振	C1E	48 MHz	±15ppm	±10ppm	8pF
C1E-18.000-10-1015-R	Aker晶振	C1E	18 MHz	±15ppm	±10ppm	10pF
