- 規格型號：40739119
- 頻率：6 MHz
- 尺寸：7050mm
- 產品描述：FC7BSCCMM6.0-T1|FOX無源晶振|C7BS貼裝晶振|7050石英晶體諧振器,其封裝外殼采用高致密性陶瓷材質,內部通過真空封裝工藝固定石英晶體諧振片,有效隔絕外界濕度,粉塵及化學氣體侵蝕,頻率6MHz

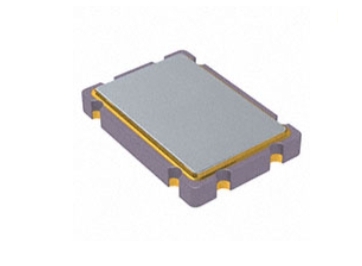

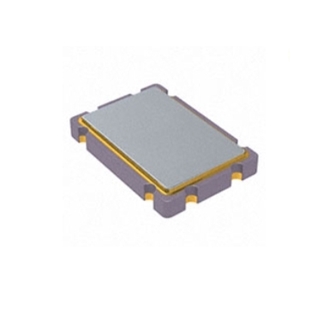

FC7BSCCMM6.0-T1|FOX無源晶振|C7BS貼裝晶振|7050石英晶體諧振器
.png)
.png)
FC7BSCCMM6.0-T1|FOX無源晶振|C7BS貼裝晶振|7050石英晶體諧振器
FC7BSCCMM6.0-T1作為FOX旗下C7BS系列核心型號,采用行業經典的7050貼片晶振封裝(7.0mm×5.0mm×1.2mm),雖尺寸大于小型化封裝,但憑借更穩定的結構設計,成為工業控制,通信設備等對可靠性要求嚴苛場景的優選.其封裝外殼采用高致密性陶瓷材質,內部通過真空封裝工藝固定石英晶體諧振片,有效隔絕外界濕度,粉塵及化學氣體侵蝕,相較于塑料封裝晶振,防潮性能提升60%以上,在高濕工業環境中使用壽命延長至8年以上.作為C7BS貼裝晶振家族成員,該型號延續系列標準化引腳布局(4腳設計,含2個信號腳與2個接地腳),引腳間距與焊盤尺寸嚴格遵循IPC-7351封裝規范,可直接兼容主流SMT生產線的貼裝流程,貼裝良率穩定在99.7%以上,同時寬體封裝設計增強了PCB焊接后的機械強度,可承受1.2mm的PCB彎曲形變而不脫落,適配工業設備晶振運輸與安裝過程中的振動沖擊場景.
.png)
.png)
FC7BSCCMM6.0-T1|FOX無源晶振|C7BS貼裝晶振|7050石英晶體諧振器
| 原廠型號 Original model ： | FC7BSCCMM6.0-T1 | 品牌 brand ： | 歐美進口福克斯晶振 |
| 品牌 brand ： | FOX晶振 | ESR（等效串聯電阻） Resistance) | 80 Ohms |
| 型號名稱 Model name： | C7BS | 溫度 Operating Temperature | -40°C ~ 85°C |
| Type 系列： | MHz Crystal | 腳位 Termination： | 4pad |
| 頻率 frequency ： | 6 MHz | 封裝類型 Package Type： | 4-SMD |
| Frequency Stability頻率穩定度 | ±30ppm | 高度 Package Height： | 1.10mm |
| frequency tolerance頻率容差 | ±30ppm | 最小包裝數 MPQ ： | 1000 |
| Load capacitance 負載電容 | 20pF | 包裝 Packaging： | Tape and Reel |
| Size / Dimension 尺寸 | 7050mm | 安裝方式 Mounting Style： | Surface Mount |
.png)
.png)
FC7BSCCMM6.0-T1|FOX無源晶振|C7BS貼裝晶振|7050石英晶體諧振器
.png)
FC7BSCCMM6.0-T1|FOX無源晶振|C7BS貼裝晶振|7050石英晶體諧振器
| FC4SDCBMF10.0-T1 | FOX | HC49SDLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF8.0-T1 | FOX | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF3.6864-T1 | FOX | HC49SDLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF |
| FKFSREIHM0.032768-T3 | FOX | FSRLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC4STCBMF20.0 | FOX | HC49SLF | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF |
| FK135EIHM0.032768-T3 | FOX | K135 | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC5BQCCMC12.0-T1 | FOX | C5BQ | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMM25.0-T1 | FOX | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMM12.0-T1 | FOX | C5BQ | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC7BSCCMM8.0-T1 | FOX | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMM7.3728-T1 | FOX | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF |
| FKFSXEIHM0.032768-T3 | FOX | FSXLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FKFSREIBM0.032768-T3 | FOX | FSRLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 6pF |
| FC8AQCCMC3.6864-T1 | FOX | FC8AQ | MHz Crystal | 3.6864 MHz | ±30ppm | ±30ppm | 20pF |
| FC8AQCCMC4.0-T1 | FOX | FC8AQ | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 20pF |
| FC4SDCBMF11.0592-T1 | FOX | HC49SDLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF25.0-T1 | FOX | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF16.0-T1 | FOX | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF12.0-T1 | FOX | HC49SDLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF24.0-T1 | FOX | HC49SDLF | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM25.0-T1 | FOX | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF14.7456-T1 | FOX | HC49SDLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM8.0-T1 | FOX | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF7.3728-T1 | FOX | HC49SDLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF6.0-T1 | FOX | HC49SDLF | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF4.0-T1 | FOX | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC3BQBBME12.0-T3 | FOX | FQ3225B | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 20pF |
| FC3BQBBMM25.0-T3 | FOX | FC3BQ | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF |
| FKT38EIHD0.032768 | FOX | NC38LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC4STCBMF10.0 | FOX | HC49SLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF25.0 | FOX | HC49SLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF16.0 | FOX | HC49SLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF12.0 | FOX | HC49SLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF11.0592 | FOX | HC49SLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF8.0 | FOX | HC49SLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF7.3728 | FOX | HC49SLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBLF3.579545 | FOX | HC49SLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF |
| FC4STCBMF4.0 | FOX | HC49SLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF3.6864 | FOX | HC49SLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF |
| FKT26EIHD0.032768 | FOX | NC26LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FKT38EIHQ0.032768 | FOX | NC38LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC5BQCCMC25.0-T1 | FOX | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC24.0-T1 | FOX | C5BQ | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC20.0-T1 | FOX | C5BQ | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC16.0-T1 | FOX | C5BQ | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMC8.0-T1 | FOX | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMM6.0-T1 | FOX | C7BS | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMC7.3728-T1 | FOX | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF |
| FC8AQCCMC6.0-T1 | FOX | FC8AQ | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF |
| FC4SDCBMF12.288-T1 | FOX | HC49SDLF | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM16.0-T1 | FOX | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF18.432-T1 | FOX | HC49SDLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBLF3.579545-T1 | FOX | HC49SDLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF |
| FC4SDCBMM4.0-T1 | FOX | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC2BSBBMM16.0-T3 | FOX | FX252B | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 20pF |
| FC4STCBMF18.432 | FOX | HC49SLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF14.7456 | FOX | HC49SLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF |
| FKT26EIHQ0.032768 | FOX | NC26LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC3BACALI16.0-T3 | FOX | C3BA | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 18pF |
| FC3BACBDI16.0-T3 | FOX | C3BA | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF |
