首頁歐美晶振I538-2O7-40.000MHz,ILSI進口晶振,TCXO晶振

    I538-2O7-40.000MHz,ILSI進口晶振,TCXO晶振

  • 規格型號：53024973
  • 頻率：40MHz
  • 尺寸：3225mm
  • PDF
  • 產品描述：I538-2O7-40.000MHz,ILSI進口晶振,TCXO晶振,采用高純度石英晶片,經過精密切割與鍍膜工藝處理,確保頻率基準精準,保障長期工作可靠性,外殼采用耐高溫,抗腐蝕的陶瓷封裝,兼具防塵,防震動特性,能承受設備運行中的機械沖擊...

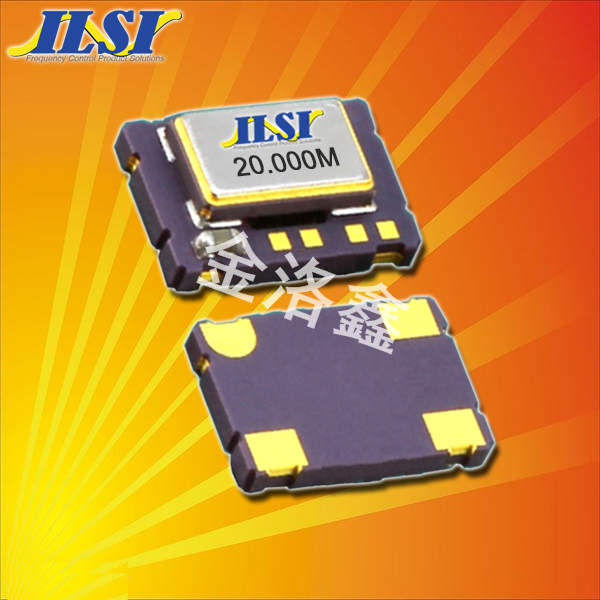

I538-2O7-40.000MHz,ILSI進口晶振,TCXO晶振
面對多樣復雜的應用環境,該TCXO晶振展現出強勁的適配能力,其一,寬溫穩定輸出,在-40℃~85℃的寬溫度區間內,通過溫補電路將頻率偏差嚴格控制在±0.5ppm以內,有效規避高低溫環境下設備時序紊亂問題,其二,抗干擾能力突出,采用特殊電磁屏蔽設計,能抵御外界電磁輻射與信號干擾,確保在工業車間,通信機房等電磁復雜環境中,時鐘信號依然穩定,其三,寬電壓兼容,支持3.0V~5.0V寬電壓輸入,無需額外電壓轉換模塊,即可適配不同設備的供電需求,降低電路設計復雜度.


I538-2O7-40.000MHz,ILSI進口晶振,TCXO晶振
Original model  原廠編碼 I538-2O7-40.000MHz
Manufacturer  品牌 ILSI低功耗晶振
Part Series  型號 I538
Type 類型 TCXO
Frequency  頻率 40MHz
Output Type  輸出方式 CMOS輸出
Supply Voltage  電壓 3V
Frequency Stability  頻率穩定性 ±1.5ppm
Operating Temperature  工作溫度 -40° / +85°C

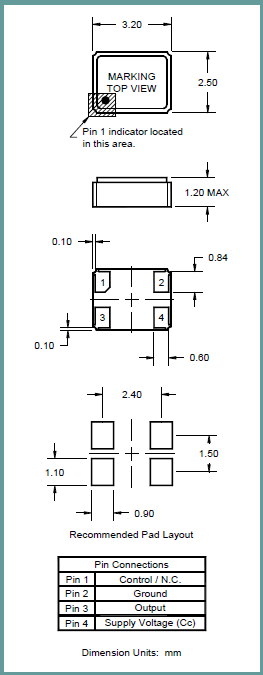

Package Size  包裝尺寸 3225mm
Package Height  厚度  -
Termination  腳位 4 pads
Package Type  封裝類型 4-SMD
Lead Free  無鉛 Yes
Mounting Style  安裝方式 Surface Mount
Packaging  包裝 Tape and Reel


I538-2O7-40.000MHz,ILSI進口晶振,TCXO晶振


I538-2O7-40.000MHz,ILSI進口晶振,TCXO晶振
12.87000  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87001  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 9 pF ± 20 ppm
12.87002  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 7 pF ± 20 ppm
12.87034  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 4 pF ± 20 ppm
12.87080  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87081  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87083  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87086  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 10 ppm
12.87090  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87095  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87105  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 10 ppm
12.87107  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87109  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12 pF ± 15 ppm
12.87110  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87111  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87112  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87113  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87114  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87115  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87116  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87118  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87119  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87120  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87121  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87123  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87126  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87127  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87128  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 20 ppm
12.87129  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87130  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87131  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87132  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87133  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87134  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87135  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87136  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87137  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 9 pF ± 20 ppm
12.87138  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87139  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87143  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87144  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 5.0 ppm
12.87145  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87146  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87147  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87148  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87149  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87150  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87151  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 30 ppm
12.87152  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87153  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87155  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87157  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87158  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87159  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87160  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87161  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87163  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 7 pF ± 20 ppm
12.87164  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 30 ppm
12.87165  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 20 ppm
12.87166  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
