- 規格型號：41636893
- 頻率：10.0MHz
- 尺寸：20.3X12.7mm
- 產品描述：Y1600-N106-5.0-10.0MHz-E|Y1600插件晶振,微波接收器|Greenray石英晶振,適配衛星通信,雷達接收,廣播電視信號接收等對信號靈敏度要求較高的場景,適應微波接收器可能面臨的復雜工作環境

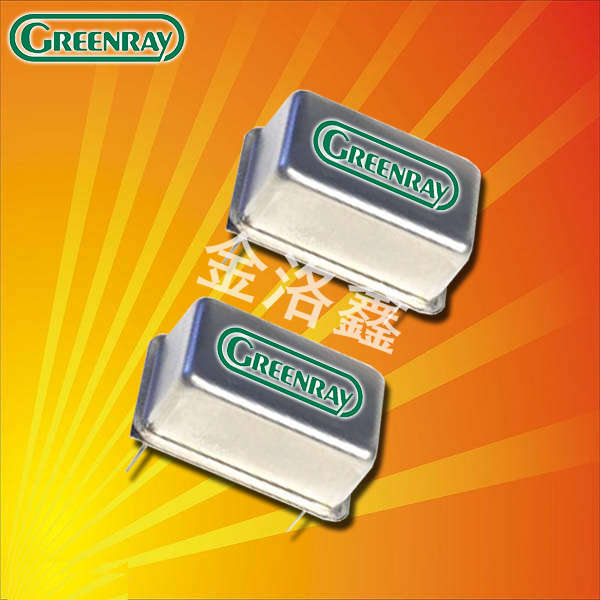

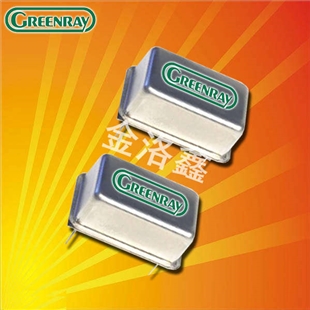

Y1600-N106-5.0-10.0MHz-E|Y1600插件晶振,微波接收器|Greenray石英晶振
.png)
.png)
Y1600-N106-5.0-10.0MHz-E|Y1600插件晶振,微波接收器|Greenray石英晶振
GreenrayY1600-N106-5.0-10.0MHz-E是一款專為微波接收器設計的石英晶振,核心輸出頻率穩定為10.0MHz,工作電壓適配5.0V標準,能滿足微波接收器對供電穩定性的需求.其采用Y1600系列標準化設計,依托Greenray插件晶振成熟的石英晶體加工工藝,初始頻率偏差被嚴格控制在極小范圍,可為微波接收器的信號接收,解調與數據處理模塊提供精準的時鐘基準.同時,該晶振具備優良的頻率穩定性與低相位噪聲特性,在復雜電磁環境中仍能保持穩定輸出,是微波通信系統中頻率控制環節的可靠選擇.
.png)
.png)
Y1600-N106-5.0-10.0MHz-E|Y1600插件晶振,微波接收器|Greenray石英晶振
| 原廠型號 Originalmodel： | Y1600-N106-5.0-10.0MHz-E | 品牌brand： | Greenray晶振 |
| Manufacturer品牌 | Greenray晶振 | OperatingTemperature溫度 | -20°C to +70°C |
| Series型號 | Y1600 | Current-Supply(Max) | - |
| Type類型 | XO定時設備晶振 | PackageHeight高度 | 9.4mm |
| Frequency頻率 | 10.0MHz | Termination 腳位 | 4pads |
| 輸出方式 Output： | HCMOS | PackageType 封裝類型 | 14-pin |
| Voltage-Supply電壓 | 5V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±10ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 20.3mmx12.7mm | 最小包裝數MPQ： | - |
.png)
.png)
Y1600-N106-5.0-10.0MHz-E|Y1600插件晶振,微波接收器|Greenray石英晶振
.png)
Y1600-N106-5.0-10.0MHz-E|Y1600插件晶振,微波接收器|Greenray石英晶振
