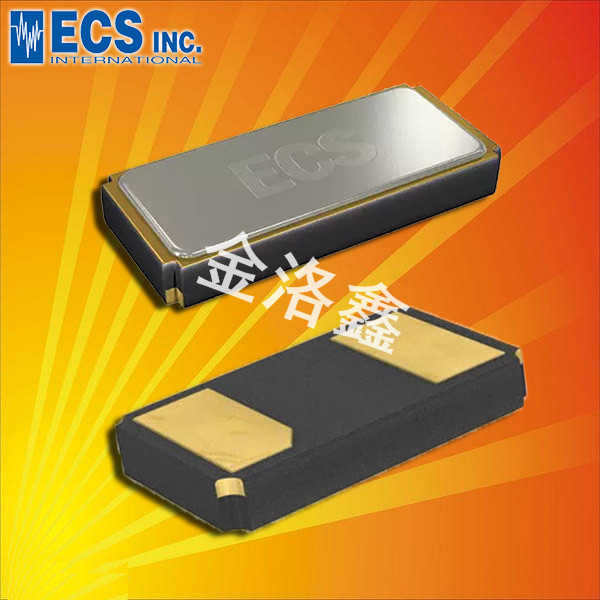

ECS-.327-12.5-12-TR~32.768KHz~20ppm~2012mm貼片晶振,伊西斯無源晶振,ECS-.327-12.5-12-TR晶振,32.768KHz晶振,負載12.5pf,精度20ppm,2012mm超小型晶振,兩腳貼片晶振,石英晶體諧振器,美國進口晶振,高精度晶振,耐高溫晶振,汽車電子晶振,工業設備晶振,物聯網晶振,COTS晶振.

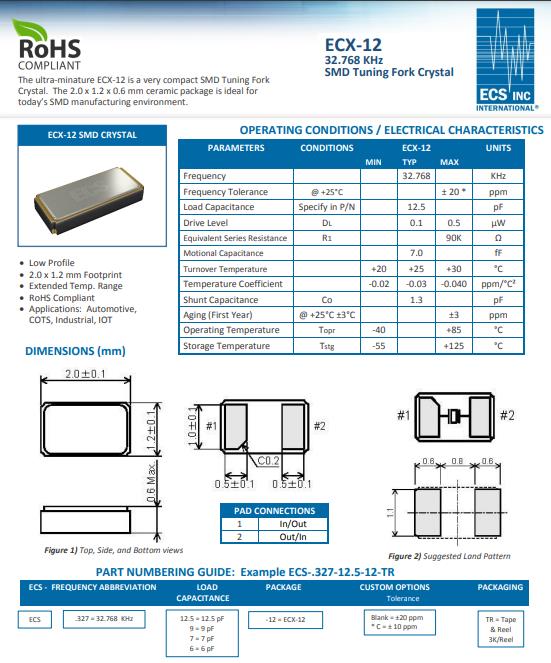

ECS-.327-12.5-12-TR~32.768KHz~20ppm~2012mm貼片晶振,參數圖

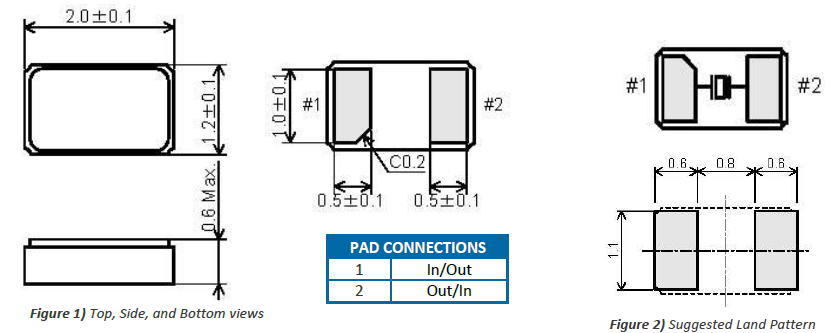

ECS-.327-12.5-12-TR~32.768KHz~20ppm~2012mm貼片晶振 尺寸圖

ECS原廠編碼	型號	頻率	頻率偏差	負載電容	工作溫度
ECS-.320-12.5-13	ECS-31	32kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-.400-12.5-13	ECS-31	40kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-.600-12.5-13	ECS-31	60kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-.655-12.5-13	ECS-31	65.536kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-.750-12.5-13	ECS-31	75kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-1.00-12.5-13	ECS-31	100kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-1.25-12.5-13	ECS-31	125kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-1.536-12.5-13	ECS-31	153.6kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-.320-12.5-13X	ECS-31X	32kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-.655-12.5-13X	ECS-31X	65.536kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-1.00-12.5-13X	ECS-31X	100kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-1.536-12.5-13X	ECS-31X	153.6kHz	±30ppm	12.5pF	-10°C ~ 60°C
ECS-.327-6-13X	ECS-2X6X	32.768kHz	±20ppm	12.5pF	-10°C ~ 60°C
ECS-.327-12.5-12-TR	ECX-12	32.768K	20PPM	12.5PF	-40°C ~ 85°C
ECS-.327-12.5-12-C-TR	ECX-12	32.768K	10PPM	12.5PF	-40°C ~ 85°C
ECS-.327-9-12-TR	ECX-12	32.768K	20PPM	9PF	-40°C ~ 85°C
ECS-.327-9-12-C-TR	ECX-12	32.768K	10PPM	9PF	-40°C ~ 85°C
ECS-.327-7-12-C-TR	ECX-12	32.768K	10PPM	7PF	-40°C ~ 85°C
ECS-.327-6-12-C-TR	ECX-12	32.768K	10PPM	6PF	-40°C ~ 85°C
ECS-.327-7-12-TR	ECX-12	32.768K	20PPM	7PF	-40°C ~ 85°C
ECS-.327-6-12-TR	ECX-12	32.768K	20PPM	6PF	-40°C ~ 85°C
