首頁歐美晶振 ECS晶振ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm

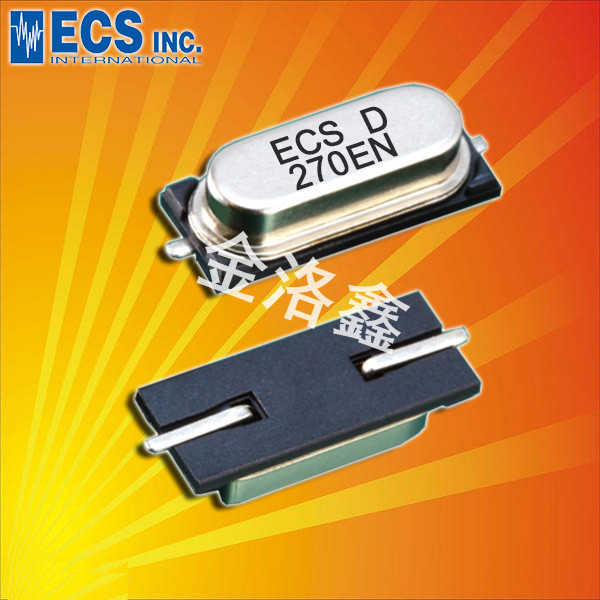

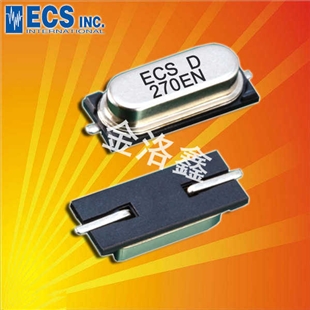

ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm

規格型號：4208392
頻率：12.288MHz
尺寸：7.6×4.1mm
PDF
產品描述：美國伊西斯晶振,進口石英晶振,HC-49USX貼片晶振,ECS-122.8-20-3X-EN-TR無源晶振,工作溫度-40~85°C,負載20pf,精度30ppm,數碼相機晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振

ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm,美國伊西斯晶振,進口石英晶振,HC-49USX貼片晶振,ECS-122.8-20-3X-EN-TR無源晶振,工作溫度-40~85°C,負載20pf,精度30ppm,數碼相機晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振.

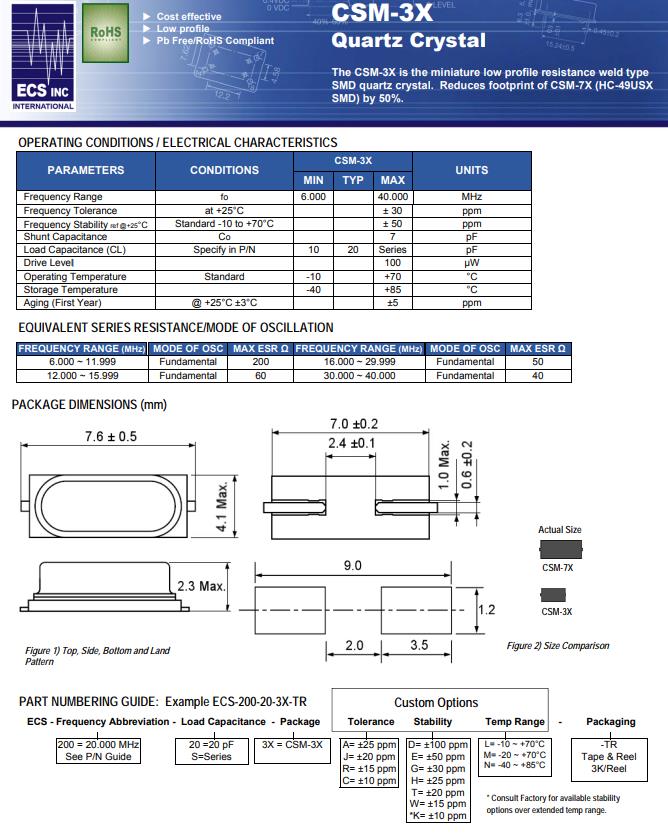

ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm,參數圖

參數	條件	CSM-3X
頻率		12.288MHz
頻率公差	at +25°C	± 30PPM
頻率穩定性	-40°C to +85°C	± 50PPM
負載電容	Specify in P/N	20pF
激勵功率		100 μW Max
工作溫度		-10°C to +70°C
保存溫度		-40°C to +85°C
并聯電容	Co	7.0 pF
老化	@ +25°C ±3°C	±5ppm

ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm尺寸圖

ECS原廠編碼	型號	頻率	頻率穩定度	頻率偏差	負載電容
ECS-120-20-3X-EN-TR	CSM-3X	12MHz	±50ppm	±30ppm	20pF
ECS-120-20-3X-TR	CSM-3X	12MHz	±50ppm	±30ppm	20pF
ECS-122.8-20-3X-EN-TR	CSM-3X	12.288MHz	±50ppm	±30ppm	20pF
ECS-122.8-20-3X-TR	CSM-3X	12.288MHz	±50ppm	±30ppm	20pF
ECS-130-20-3X-EN-TR	CSM-3X	13MHz	±50ppm	±30ppm	20pF
ECS-130-20-3X-TR	CSM-3X	13MHz	±50ppm	±30ppm	20pF
ECS-135.6-20-3X-EN-TR	CSM-3X	13.56MHz	±50ppm	±30ppm	20pF
ECS-135.6-20-3X-TR	CSM-3X	13.56MHz	±50ppm	±30ppm	20pF
ECS-143-20-3X-EN-TR	CSM-3X	14.31818MHz	±50ppm	±30ppm	20pF
ECS-143-20-3X-TR	CSM-3X	14.31818MHz	±50ppm	±30ppm	20pF
ECS-147.4-20-3X-EN-TR	CSM-3X	14.7456MHz	±50ppm	±30ppm	20pF
ECS-147.4-20-3X-TR	CSM-3X	14.7456MHz	±50ppm	±30ppm	20pF
ECS-160-20-3X-EN-TR	CSM-3X	16MHz	±50ppm	±30ppm	20pF
ECS-160-20-3X-TR	CSM-3X	16MHz	±50ppm	±30ppm	20pF
ECS-184-20-3X-EN-TR	CSM-3X	18.432MHz	±50ppm	±30ppm	20pF
ECS-184-20-3X-TR	CSM-3X	18.432MHz	±50ppm	±30ppm	20pF
ECS-196.6-20-3X-EN-TR	CSM-3X	19.6608MHz	±50ppm	±30ppm	20pF
ECS-196.6-20-3X-TR	CSM-3X	19.6608MHz	±50ppm	±30ppm	20pF
ECS-200-20-3X-EN-TR	CSM-3X	20MHz	±50ppm	±30ppm	20pF
ECS-200-20-3X-TR	CSM-3X	20MHz	±50ppm	±30ppm	20pF
ECS-200-CDX-0914	CSM-3X	20MHz	±30ppm	±10ppm	10pF
ECS-245.7-20-3X-EN-TR	CSM-3X	24.576MHz	±50ppm	±30ppm	20pF
ECS-245.7-20-3X-TR	CSM-3X	24.576MHz	±50ppm	±30ppm	20pF
ECS-250-20-3X-EN-TR	CSM-3X	25MHz	±50ppm	±30ppm	20pF
ECS-250-20-3X-TR	CSM-3X	25MHz	±50ppm	±30ppm	20pF
ECS-270-20-3X-EN-TR	CSM-3X	27MHz	±50ppm	±30ppm	20pF
ECS-270-20-3X-TR	CSM-3X	27MHz	±50ppm	±30ppm	20pF
ECS-286.3-20-3X-EN-TR	CSM-3X	28.63636MHz	±50ppm	±30ppm	20pF
ECS-286.3-20-3X-TR	CSM-3X	28.63636MHz	±50ppm	±30ppm	20pF
ECS-300-20-3X-EN-TR	CSM-3X	30MHz	±50ppm	±30ppm	20pF
ECS-300-20-3X-TR	CSM-3X	30MHz	±50ppm	±30ppm	20pF
ECS-330-20-3X-EN-TR	CSM-3X	33MHz	±50ppm	±30ppm	20pF
ECS-330-20-3X-TR	CSM-3X	33MHz	±50ppm	±30ppm	20pF
ECS-400-20-3X-EN-TR	CSM-3X	40MHz	±50ppm	±30ppm	20pF
ECS-400-20-3X-TR	CSM-3X	40MHz	±50ppm	±30ppm	20pF
