- 規格型號：69472706
- 頻率：12.288MHz
- 尺寸：2.5×2.0×0.8mm
- 產品描述：X1G004171001900晶振,頻率12.288MHz,2520mm晶振,日本愛普生晶振,SMD石英晶體振蕩器,SG-210STF有源晶振,超小型晶振,汽車遙控器應用晶振,智能交通燈晶振,通信模塊晶振,醫療設備應用晶振,藍牙模塊晶振.

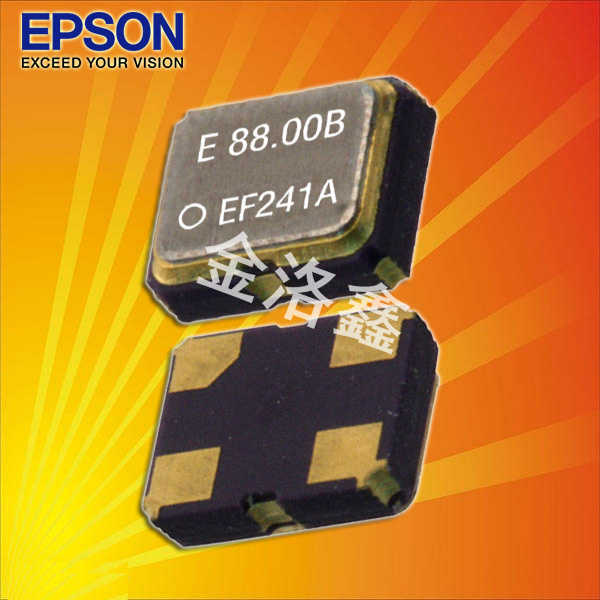

X1G004171001900-12.288MHz-2520mm-日本愛普生晶振
.jpg)
X1G004171001900-12.288MHz-2520mm-日本愛普生晶振,X1G004171001900晶振,頻率12.288MHz,2520mm晶振,日本愛普生晶振,SMD石英晶體振蕩器,SG-210STF有源晶振,超小型晶振,汽車遙控器應用晶振,智能交通燈晶振,通信模塊晶振,醫療設備應用晶振,藍牙模塊晶振.

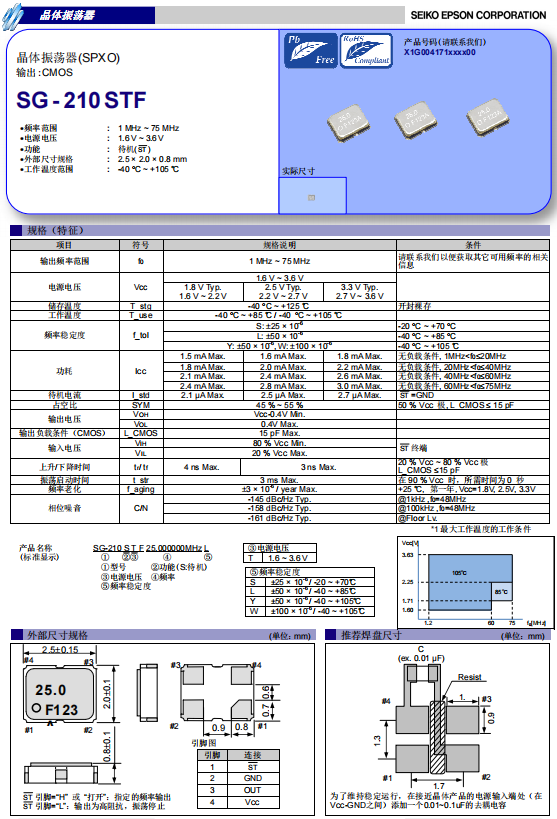

X1G004171001900-12.288MHz-2520mm-日本愛普生晶振,參數圖
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 12.288MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 1.6V~3.6V | |
| 儲存溫度 | T_stg | -40℃~+125℃ | 開封裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定度 | f_tol | ±50 ppm | -40℃~ +85℃ |
| 功耗 | Icc | 1.8mA Max |
無負載條件, 1MHz<f |
| 待機電流 | I_std | 2.7µA | ST=GND |
| 占空比 | SYM | 45%~55% | 50%Vcc極,L_CMOS≤15pf |
| 輸出電壓 | VOH | Vcc-0.4V Min | |
| VOL | 0.4V Max | ||
| 輸出負載條件(CMOS) | L_CMOS | 15pF Max | |
| 輸入電壓 | VIH | 80 % VCC Min. | ST 終端 |
| VIL | 20 % VCC Max. | ||
| 上升/下降時間 | tr/ tf | 3 ns Max. |
20 % VCC ~ 80 % VCC 極
L_CMOS ≤15 pF
|
| 振蕩啟動時間 | t_str | 3 ms Max. | 在 90 % VCC 時，所需時間為 0 秒 |
| 頻率老化 | f_aging | 3 × 10-6 / year Max. | +25 °C, 第一年,Vcc=1.8V, 2.5V, 3.3V |
| 相位噪音 | C/N | - 145 dBc/Hz Typ . | @1kHz ,f0=48MHz |
| - 158 dBc/Hz Typ . | @100kHz ,f0=48MHz | ||
| - 161 dBc/Hz Typ . | @Floor Lv. |
X1G004171001900-12.288MHz-2520mm-日本愛普生晶振 尺寸圖
| 編碼 | 型號 | 頻率 | 尺寸 | 輸出方式 | 電源電壓 |
| X1G0041710002 | SG-210STF | 33.300000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710005 | SG-210STF | 1.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710006 | SG-210STF | 1.843200 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710007 | SG-210STF | 2.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710008 | SG-210STF | 3.686400 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710009 | SG-210STF | 4.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710010 | SG-210STF | 4.096000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710011 | SG-210STF | 5.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710012 | SG-210STF | 6.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710013 | SG-210STF | 6.144000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710014 | SG-210STF | 7.372800 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710015 | SG-210STF | 8.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710016 | SG-210STF | 10.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710017 | SG-210STF | 11.289600 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710018 | SG-210STF | 12.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710019 | SG-210STF | 12.288000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710020 | SG-210STF | 12.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710021 | SG-210STF | 13.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710022 | SG-210STF | 13.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710023 | SG-210STF | 13.560000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710024 | SG-210STF | 14.318180 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710025 | SG-210STF | 14.745600 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710026 | SG-210STF | 15.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710027 | SG-210STF | 16.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710028 | SG-210STF | 19.200000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710029 | SG-210STF | 20.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710030 | SG-210STF | 22.579200 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710031 | SG-210STF | 24.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710032 | SG-210STF | 24.576000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710033 | SG-210STF | 25.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710034 | SG-210STF | 26.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710035 | SG-210STF | 27.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710036 | SG-210STF | 27.120000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710037 | SG-210STF | 28.636360 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710038 | SG-210STF | 29.491200 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710039 | SG-210STF | 30.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710040 | SG-210STF | 32.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710041 | SG-210STF | 33.333000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710042 | SG-210STF | 36.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710043 | SG-210STF | 37.400000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710044 | SG-210STF | 38.400000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710045 | SG-210STF | 40.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710046 | SG-210STF | 48.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710047 | SG-210STF | 50.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710048 | SG-210STF | 52.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710049 | SG-210STF | 54.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710052 | SG-210STF | 8.192000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710055 | SG-210STF | 26.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710059 | SG-210STF | 25.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710069 | SG-210STF | 8.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710075 | SG-210STF | 33.333300 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710077 | SG-210STF | 25.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710078 | SG-210STF | 48.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710079 | SG-210STF | 50.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710080 | SG-210STF | 66.666700 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.710 to 3.600 V |
| X1G0041710081 | SG-210STF | 75.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.710 to 3.600 V |
| X1G0041710083 | SG-210STF | 1.200000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710084 | SG-210STF | 1.228800 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710085 | SG-210STF | 1.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710086 | SG-210STF | 1.536000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710087 | SG-210STF | 2.048000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710088 | SG-210STF | 2.457600 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710089 | SG-210STF | 2.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710090 | SG-210STF | 3.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710091 | SG-210STF | 3.072000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710092 | SG-210STF | 3.125000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710093 | SG-210STF | 3.579545 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710094 | SG-210STF | 4.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710095 | SG-210STF | 4.800000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710096 | SG-210STF | 4.915200 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710097 | SG-210STF | 5.644800 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710098 | SG-210STF | 6.250000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710099 | SG-210STF | 6.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710100 | SG-210STF | 6.750000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710101 | SG-210STF | 6.780000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710102 | SG-210STF | 7.159090 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710103 | SG-210STF | 7.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710104 | SG-210STF | 8.250000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710105 | SG-210STF | 9.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710106 | SG-210STF | 9.600000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710107 | SG-210STF | 9.830400 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710108 | SG-210STF | 15.625000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710109 | SG-210STF | 16.384000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
| X1G0041710110 | SG-210STF | 16.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V |
.png)
