- 規格型號：541746
- 頻率：26MHz
- 尺寸：1.6mm*1.2mm
- 產品描述：格耶GEYER晶振,6G路由器晶振,12.84803四腳晶振，丹麥GEYER晶振公司，格耶晶振，6G路由器晶振，高品質晶振，歐美晶振，進口晶振，6G信號傳輸設備晶振，衛星通信晶振，高精度晶振，環保無鉛晶振，小體積晶振，1612晶振，...

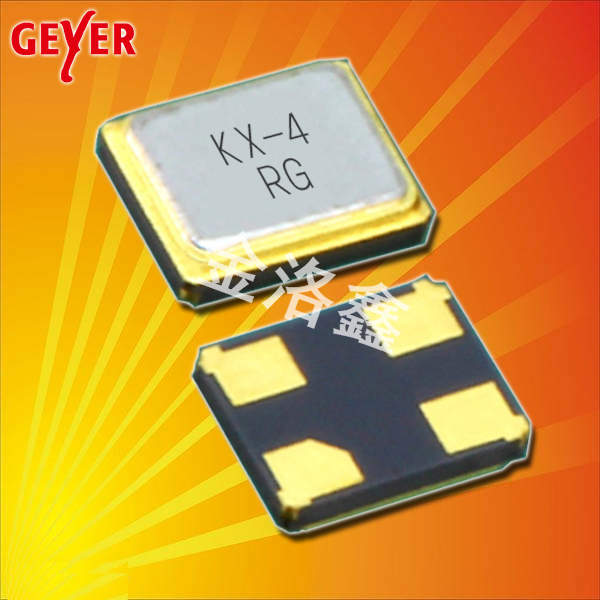

格耶GEYER晶振,6G路由器晶振,12.84803四腳晶振
品說明.jpg)
格耶GEYER晶振,6G路由器晶振,12.84803四腳晶振，丹麥GEYER晶振公司，格耶晶振，6G路由器晶振，高品質晶振，歐美晶振，進口晶振，6G信號傳輸設備晶振，衛星通信晶振，高精度晶振，環保無鉛晶振，小體積晶振，1612晶振，四腳晶振，石英晶振，KT-4T晶振，無源晶振，貼片晶振
品規格參數圖.jpg)

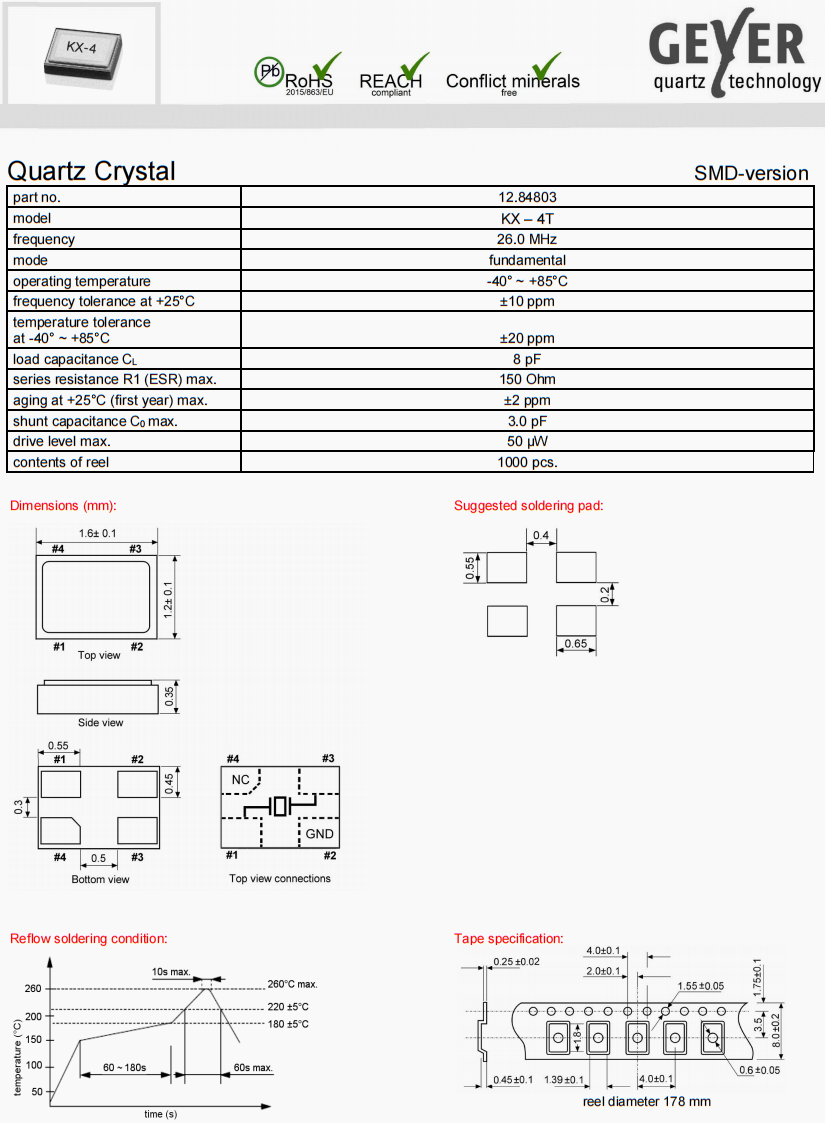

格耶GEYER晶振,6G路由器晶振,12.84803四腳晶振
| 編碼 | 12.84803 |
| 型號 | KX – 4T |
| 頻率 | 26.0 MHz |
| 工作模式 | fundamental |
| 工作溫度 | -40° ~ +85°C |
| 頻率容差 | ±10 ppm |
| 溫度范圍內的頻率穩定度 | ±20 ppm |
| 負載電容 | 8 pF |
| 等效串聯電阻 | 150 Ohm |
| 老化 | ±2 ppm |
| 分流電容 | 3.0 pF |
| 驅動電平 | 50 µW |
| 包裝內容 | 1000 pcs. |
品尺寸圖.jpg)
格耶GEYER晶振,6G路由器晶振,12.84803四腳晶振
| GEYER原廠編碼 | 生產商品牌 | 型號 | 頻率 | 頻率容差 | 頻率穩定度 | 負載 |
| 12.85536 | Geyer晶振 | KX-5T | 40 MHz | ±20ppm | ±10ppm | 8pF |
| 12.84816 | Geyer晶振 | KX-4 | 25 MHz | ±50ppm | ±30ppm | 8pF |
| 12.88722 | Geyer晶振 | KX-7T | 16 MHz | ±25ppm | ±10ppm | 12pF |
| 12.84805 | Geyer晶振 | KX-4 | 27.12 MHz | ±30ppm | ±30ppm | 8pF |
| 12.86509 | Geyer晶振 | KX-6 | 48 MHz | ±50ppm | ±30ppm | 10pF |
| 12.89020 | Geyer晶振 | KX-9A | 32 MHz | ±10ppm | ±30ppm | 16pF |
| 12.84813 | Geyer晶振 | KX-4 | 27.12 MHz | ±15ppm | ±10ppm | 8pF |
| 12.60233 | Geyer晶振 | KX-7T | 25 MHz | ±20ppm | ±20ppm | 12pF |
| 12.85515 | Geyer晶振 | KX-5 | 27 MHz | ±50ppm | ±30ppm | 8pF |
| 12.86544 | Geyer晶振 | KX-7E | 24 MHz | ±120ppm | ±30ppm | 10pF |
| 12.85547 | Geyer晶振 | KX-5T | 26 MHz | ±20ppm | ±10ppm | 8pF |
| 12.89190 | Geyer晶振 | KX-9AT | 8 MHz | ±30ppm | ±100ppm | 16pF |
| 12.85562 | Geyer晶振 | KX-5T | 50 MHz | ±50ppm | ±30ppm | 8pF |
| 12.60208 | Geyer晶振 | KX-7T | 26 MHz | ±10ppm | ±20ppm | 8pF |
| 12.86531 | Geyer晶振 | KX-6T | 16 MHz | ±100ppm | ±30ppm | 10pF |
| 12.88664 | Geyer晶振 | KX-7 | 14.31818 MHz | ±50ppm | ±30ppm | 12pF |
| 12.89495 | Geyer晶振 | KX-9BH | 8 MHz | ±50ppm | ±50ppm | 16pF |
| 12.89103 | Geyer晶振 | KX-9AE | 10 MHz | ±50ppm | ±30ppm | 16pF |
| 12.88700 | Geyer晶振 | KX-7 | 30 MHz | ±50ppm | ±30ppm | 12pF |
| 12.89131 | Geyer晶振 | KX-9AT | 48 MHz | ±50ppm | ±30ppm | 16pF |
| 12.86512 | Geyer晶振 | KX-6 | 20 MHz | ±50ppm | ±30ppm | 10pF |
| 12.89126 | Geyer晶振 | KX-9A | 13.56 MHz | ±120ppm | ±30ppm | 16pF |
| 12.86550 | Geyer晶振 | KX-6E | 16 MHz | ±150ppm | ±30ppm | 10pF |
| 12.86526 | Geyer晶振 | KX-6T | 26 MHz | ±20ppm | ±10ppm | 10pF |
| 12.60090 | Geyer晶振 | KX-7T | 24 MHz | ±20ppm | ±20ppm | 12pF |
| 12.88701 | Geyer晶振 | KX-7T | 40 MHz | ±100ppm | ±30ppm | 12pF |
| 12.88493 | Geyer晶振 | KX-7T | 33.33333 MHz | ±100ppm | ±30ppm | 12pF |
| 12.85521 | Geyer晶振 | KX-5T | 26 MHz | ±20ppm | ±10ppm | 10pF |
| 12.89078 | Geyer晶振 | KX-9AT | 27 MHz | ±150ppm | ±30ppm | 16pF |
| 12.86517 | Geyer晶振 | KX-6 | 24 MHz | ±50ppm | ±30ppm | 10pF |
| 12.84812 | Geyer晶振 | KX-4 | 25 MHz | ±50ppm | ±30ppm | 8pF |
| 12.88508 | Geyer晶振 | KX-7T | 24 MHz | ±50ppm | ±20ppm | 12pF |
| 12.88711 | Geyer晶振 | KX-7T | 25 MHz | ±30ppm | ±30ppm | 12pF |
| 12.85519 | Geyer晶振 | KX-5T | 20 MHz | ±50ppm | ±20ppm | 8pF |
| 12.89027 | Geyer晶振 | KX-9A | 25 MHz | ±30ppm | ±30ppm | 16pF |
| 12.85539 | Geyer晶振 | KX-5T | 48 MHz | ±20ppm | ±10ppm | 12pF |
| 12.88721 | Geyer晶振 | KX-7T | 16 MHz | ±30ppm | ±30ppm | 12pF |
| 12.88667 | Geyer晶振 | KX-7 | 25 MHz | ±50ppm | ±30ppm | 12pF |
| 12.85517 | Geyer晶振 | KX-5T | 54 MHz | ±100ppm | ±30ppm | 8pF |
| 12.89017 | Geyer晶振 | KX-9A | 13.56 MHz | ±50ppm | ±30ppm | 16pF |
| 12.89082 | Geyer晶振 | KX-9AT | 26 MHz | ±50ppm | ±30ppm | 16pF |
| 12.60075 | Geyer晶振 | KX-7 | 30 MHz | ±50ppm | ±30ppm | 8pF |
| 12.89155 | Geyer晶振 | KX-9AT | 32 MHz | ±30ppm | ±30ppm | 16pF |
| 12.88522 | Geyer晶振 | KX-7T | 11.0592 MHz | ±50ppm | ±30ppm | 12pF |
| 12.88752 | Geyer晶振 | KX-7 | 10 MHz | ±50ppm | ±30ppm | 12pF |
| 12.85569 | Geyer晶振 | KX-5T | 27.12 MHz | ±15ppm | ±10ppm | 8pF |
| 12.88565 | Geyer晶振 | KX-7E | 8 MHz | ±50ppm | ±30ppm | 12pF |
| 12.85538 | Geyer晶振 | KX-5T | 24.576 MHz | ±100ppm | ±30ppm | 8pF |
| 12.86533 | Geyer晶振 | KX-6T | 26 MHz | ±100ppm | ±30ppm | 10pF |
| 12.89209 | Geyer晶振 | KX-9AE | 16 MHz | ±50ppm | ±30ppm | 20pF |
| 12.86520 | Geyer晶振 | KX-6 | 27 MHz | ±50ppm | ±30ppm | 10pF |
| 12.86574 | Geyer晶振 | KX-6F | 27 MHz | ±150ppm | ±30ppm | 8pF |
| 12.85541 | Geyer晶振 | KX-5 | 30 MHz | ±30ppm | ±30ppm | 8pF |
| 12.84818 | Geyer晶振 | KX-4 | 24 MHz | ±50ppm | ±30ppm | 8pF |
| 12.86527 | Geyer晶振 | KX-6T | 20 MHz | ±15ppm | ±10ppm | 10pF |
| 12.85534 | Geyer晶振 | KX-5T | 27 MHz | ±50ppm | ±30ppm | 8pF |
| 12.86505 | Geyer晶振 | KX-6 | 26 MHz | ±50ppm | ±30ppm | 10pF |
| 12.60024 | Geyer晶振 | KX-7E | 27 MHz | ±100ppm | ±30ppm | 12pF |
| 12.84803 | Geyer晶振 | KX-4 | 26 MHz | ±20ppm | ±10ppm | 8pF |
