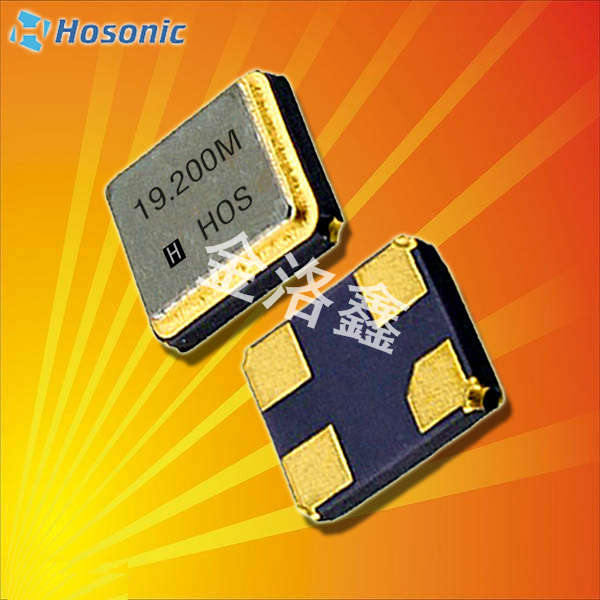

首頁進口晶振臺灣鴻星晶體E3SB39E000006E環保晶振,遙遙領先的飛行器晶振,高精度Hosonic晶振

E3SB39E000006E環保晶振,遙遙領先的飛行器晶振,高精度Hosonic晶振

規格型號：96041624
頻率：39MHz
尺寸：3225mm
PDF
產品描述：E3SB39E000006E環保晶振,遙遙領先的飛行器晶振,高精度Hosonic晶振，輕薄小(最大3.2x2.5X0.75mm)，優異的電氣性能，理想的OA(辦公自動化)。AV(視聽)、藍牙和無線局域網應用，具有優異的耐熱性和抗沖擊性能。無鉛。滿足...

E3SB39E000006E環保晶振,遙遙領先的飛行器晶振,高精度Hosonic晶振，輕薄小 (最大3.2x2.5X0.75mm)，優異的電氣性能，理想的OA (辦公自動化)。AV (視聽)、藍牙和無線局域網應用，具有優異的耐熱性和抗沖擊性能。無鉛。滿足使用無鉛焊料進行再流分析的要求。臺灣鴻星晶振公司，無源晶振，石英晶體諧振器，四腳晶振，貼片晶振，石英晶振，Hosonic晶振，臺產晶振，高品質晶振，6G通訊基站晶振，6G信號放大器晶振，無人機晶振，智能輔助駕駛模塊晶振，北斗衛星晶振，衛星電話晶振，3225晶振。

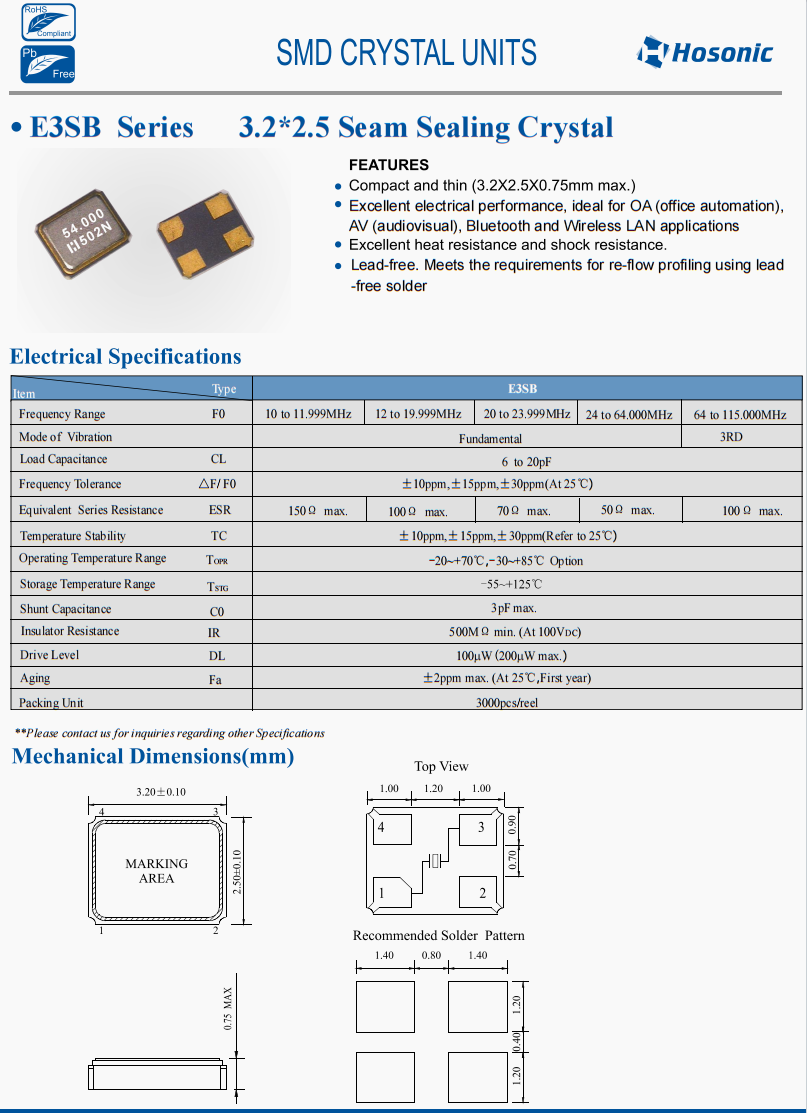

E3SB39E000006E環保晶振,遙遙領先的飛行器晶振,高精度Hosonic晶振

項目	標志	E3SB
頻率范圍	F0	10 to 11.999MHz	12 to 19.999MHz	20 to 23.999MHz	24 to 64.000MHz	64 to 115.000MHz
工作模式		Fundamental				3RD
負載電容	CL	6 to 20pF
頻率容差	ΔF/ F0	±10ppm, ±15ppm, ±30ppm(At 25℃)
等效串聯電阻	ESR	150Ω max.	100Ω max.	70Ω max.	50Ω max.	100Ω max.
溫度穩定度	TC	±10ppm, ±15ppm, ±30ppm(Refer to 25℃)
工作溫度范圍	TOPR	-20~+70℃,-30~+85℃ Option
儲存溫度范圍	TSTG	-55~+125℃
分流電容	C0	3pF max.
絕緣電阻	IR	500MΩ min. (At 100VDC)
驅動電平	DL	100μW(200μW max.)
老化	Fa	±2ppm max. (At 25℃,First year)
包裝單位		3000pcs/reel

E3SB39E000006E環保晶振,遙遙領先的飛行器晶振,高精度Hosonic晶振

鴻星原廠編碼	生產商品牌	型號	頻率	頻率穩定度	頻率容差	負載電荷	工作溫度
E3SB25E00003FE	Hosonic晶振	E3SB	25 MHz	±15ppm	±15ppm	18pF	-40°C ~ 85°C
E3SB24E004000E	Hosonic晶振	E3SB	24 MHz	±10ppm	±10ppm	18pF	-30°C ~ 85°C
E3SB32E001500E	Hosonic晶振	E3SB	32 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB37E0X0004E	Hosonic晶振	E3SB	37.4 MHz	±10ppm	±10ppm	16pF	-30°C ~ 85°C
E3SB25E001803E	Hosonic晶振	E3SB	25 MHz	±20ppm	±20ppm	12pF	-40°C ~ 85°C
E3SB16E0X000WE	Hosonic晶振	E3SB	16.384 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
E3SB27E0X000VE	Hosonic晶振	E3SB	27.12 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
E3SB27E00000DE	Hosonic晶振	E3SB	27 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
E3SB50E00000AE	Hosonic晶振	E3SB	50 MHz	±10ppm	±10ppm	18pF	-20°C ~ 70°C
E3SB26E000011E	Hosonic晶振	E3SB	26 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB8E0000003E	Hosonic晶振	E3SB	8 MHz	±30ppm	±30ppm	10pF	-30°C ~ 85°C
E3SB24E00000QE	Hosonic晶振	E3SB	24 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
E3SB40E00010JE	Hosonic晶振	E3SB	40 MHz	-12ppm, +20ppm	±5ppm	12pF	-40°C ~ 105°C
E3SB12E000022E	Hosonic晶振	E3SB	12 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
E3SB16E000028E	Hosonic晶振	E3SB	16 MHz	±10ppm	±10ppm	10pF	-20°C ~ 75°C
E3SB40E00090DE	Hosonic晶振	E3SB	40 MHz	±20ppm	±10ppm	12pF	-30°C ~ 105°C
E3SB38E0X0006E	Hosonic晶振	E3SB	38.4 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
E3SB40E00010KECBB8	Hosonic晶振	E3SB	40 MHz	±15ppm	±7ppm	6pF	-40°C ~ 100°C
E3SB39E000006E	Hosonic晶振	E3SB	39 MHz	±15ppm	±8ppm	10pF	-40°C ~ 100°C
E3SB38E0X1806E	Hosonic晶振	E3SB	38.4 MHz	±20ppm	±20ppm	10pF	-40°C ~ 85°C
E3SB48E000801ECBB8	Hosonic晶振	E3SB	48 MHz	±10ppm	±10ppm	12pF	0°C ~ 85°C
E3SB12E00004EE	Hosonic晶振	E3SB	12 MHz	±35ppm	±8ppm	12pF	-40°C ~ 120°C
E3SB14E0X0002E	Hosonic晶振	E3SB	14.7456 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
E3SB10E000007E	Hosonic晶振	E3SB	10 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
E3SB25E00000DE	Hosonic晶振	E3SB	25 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
E3SB48E00000TE	Hosonic晶振	E3SB	48 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
E3SB50E00002AE	Hosonic晶振	E3SB	50 MHz	±18ppm	±7ppm	9pF	-40°C ~ 105°C
E3SB8E000000CE	Hosonic晶振	E3SB	8 MHz	±20ppm	±20ppm	20pF	-20°C ~ 70°C
E3SB11E0X0007E	Hosonic晶振	E3SB	11.0592 MHz	±10ppm	±20ppm	18pF	-40°C ~ 85°C
E3SB12E00000CE	Hosonic晶振	E3SB	12 MHz	±10ppm	±10ppm	9pF	-20°C ~ 75°C
E3SB12E0X000TE	Hosonic晶振	E3SB	12.288 MHz	±10ppm	±10ppm	15pF	-20°C ~ 70°C
E3SB12E00002LE	Hosonic晶振	E3SB	12 MHz	±10ppm	±10ppm	20pF	-20°C ~ 70°C
E3SB12E00003KE	Hosonic晶振	E3SB	12 MHz	±10ppm	±10ppm	18pF	-30°C ~ 85°C
E3SB12E00003YE	Hosonic晶振	E3SB	12 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
E3SB12E00003ZE	Hosonic晶振	E3SB	12 MHz	±20ppm	±20ppm	16pF	-40°C ~ 85°C
E3SB12E000017E	Hosonic晶振	E3SB	12 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB12E000019E	Hosonic晶振	E3SB	12 MHz	±20ppm	±20ppm	12pF	-40°C ~ 85°C
E3SB12E000024E	Hosonic晶振	E3SB	12 MHz	±20ppm	±20ppm	18pF	-30°C ~ 85°C
E3SB16E00000CE	Hosonic晶振	E3SB	16 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
E3SB16E00000FE	Hosonic晶振	E3SB	16 MHz	±10ppm	±20ppm	9pF	-40°C ~ 85°C
E3SB16E00000QE	Hosonic晶振	E3SB	16 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
E3SB16E00001UE	Hosonic晶振	E3SB	16 MHz	±20ppm	±20ppm	20pF	-20°C ~ 70°C
E3SB16E000013E	Hosonic晶振	E3SB	16 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB18E0X000SE	Hosonic晶振	E3SB	18.432 MHz	±10ppm	±20ppm	10pF	-30°C ~ 85°C
E3SB24E000000E	Hosonic晶振	E3SB	24 MHz	±10ppm	±15ppm	6pF	-20°C ~ 70°C
E3SB24E00002JE	Hosonic晶振	E3SB	24 MHz	±10ppm	±10ppm	16pF	-20°C ~ 70°C
E3SB24E00003LE	Hosonic晶振	E3SB	24 MHz	±10ppm	±10ppm	20pF	-30°C ~ 85°C
E3SB24E00004XE	Hosonic晶振	E3SB	24 MHz	±10ppm	±10ppm	16pF	-30°C ~ 85°C
E3SB24E000022E	Hosonic晶振	E3SB	24 MHz	±20ppm	±20ppm	12pF	-20°C ~ 70°C
E3SB24E000026E	Hosonic晶振	E3SB	24 MHz	±10ppm	±10ppm	12pF	-20°C ~ 70°C
E3SB25E00000VE	Hosonic晶振	E3SB	25 MHz	±10ppm	±10ppm	12pF	-40°C ~ 85°C
E3SB25E00001HE	Hosonic晶振	E3SB	25 MHz	±15ppm	±15ppm	16pF	-40°C ~ 85°C
E3SB25E00002CE	Hosonic晶振	E3SB	25 MHz	±15ppm	±15ppm	18pF	-40°C ~ 85°C
E3SB25E00003DE	Hosonic晶振	E3SB	25 MHz	±10ppm	±10ppm	18pF	-30°C ~ 85°C
E3SB25E000028E	Hosonic晶振	E3SB	25 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
E3SB26E00000CE	Hosonic晶振	E3SB	26 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
E3SB26E00000PE	Hosonic晶振	E3SB	26 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
E3SB26E00004QE	Hosonic晶振	E3SB	26 MHz	±10ppm	±10ppm	20pF	-30°C ~ 85°C
E3SB26E000006E	Hosonic晶振	E3SB	26 MHz	±10ppm	±10ppm	8pF	-30°C ~ 85°C
E3SB26E00010CE	Hosonic晶振	E3SB	26 MHz	±10ppm	±15ppm	7.5pF	-40°C ~ 85°C
E3SB26E000035E	Hosonic晶振	E3SB	26 MHz	±10ppm	±10ppm	16pF	-30°C ~ 85°C
E3SB26E000036E	Hosonic晶振	E3SB	26 MHz	±20ppm	±20ppm	20pF	-10°C ~ 70°C
E3SB26E000100E	Hosonic晶振	E3SB	26 MHz	±10ppm	±10ppm	7.7pF	-30°C ~ 85°C
E3SB27E00000BA	Hosonic晶振	E3SB	27 MHz	±15ppm	±50ppm	8pF	-40°C ~ 125°C
E3SB27E00000DE_	Hosonic晶振	E3SB	27 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
E3SB27E00000SE	Hosonic晶振	E3SB	27 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB27E0X0002E	Hosonic晶振	E3SB	27.12 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
E3SB27E00002SE	Hosonic晶振	E3SB	27 MHz	±10ppm	±10ppm	20pF	-30°C ~ 85°C
E3SB27E000800E_	Hosonic晶振	E3SB	27 MHz	±10ppm	±10ppm	12pF	0°C ~ 85°C
E3SB32E00000KE	Hosonic晶振	E3SB	32 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB32E00001ME_	Hosonic晶振	E3SB	32 MHz	±15ppm	±20ppm	9pF	-20°C ~ 70°C
E3SB32E000020E	Hosonic晶振	E3SB	32 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
E3SB37.4000F16G11	Hosonic晶振	E3SB	37.4 MHz	±10ppm	±10ppm	16pF	-30°C ~ 85°C
E3SB37E0X0000E	Hosonic晶振	E3SB	37.4 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
E3SB37E0X000HE	Hosonic晶振	E3SB	37.4 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB37E0X0004E	Hosonic晶振	E3SB	37.4 MHz	±10ppm	±10ppm	16pF	-30°C ~ 85°C
E3SB38E0X000BE	Hosonic晶振	E3SB	38.4 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB40E00001BE	Hosonic晶振	E3SB	40 MHz	±10ppm	±10ppm	15pF	-30°C ~ 85°C
E3SB40E00004GE_	Hosonic晶振	E3SB	40 MHz	±8ppm	±10ppm	10pF	-30°C ~ 85°C
E3SB40E00004TE	Hosonic晶振	E3SB	40 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
E3SB40E000007E	Hosonic晶振	E3SB	40 MHz	±10ppm	±20ppm	10pF	-30°C ~ 85°C
E3SB40E000013E	Hosonic晶振	E3SB	40 MHz	±10ppm	±10ppm	20pF	-30°C ~ 85°C
E3SB40E000030E	Hosonic晶振	E3SB	40 MHz	±10ppm	±10ppm	8pF	-30°C ~ 85°C
E3SB48E00000GE	Hosonic晶振	E3SB	48 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB48E00002GE	Hosonic晶振	E3SB	48 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
E3SB48E000011E	Hosonic晶振	E3SB	48 MHz	±10ppm	±10ppm	20pF	-30°C ~ 85°C
