首頁進口晶振1ZCT24000BD0A|胎壓監測系統|DSX320GE晶振|安全裝置應用晶振

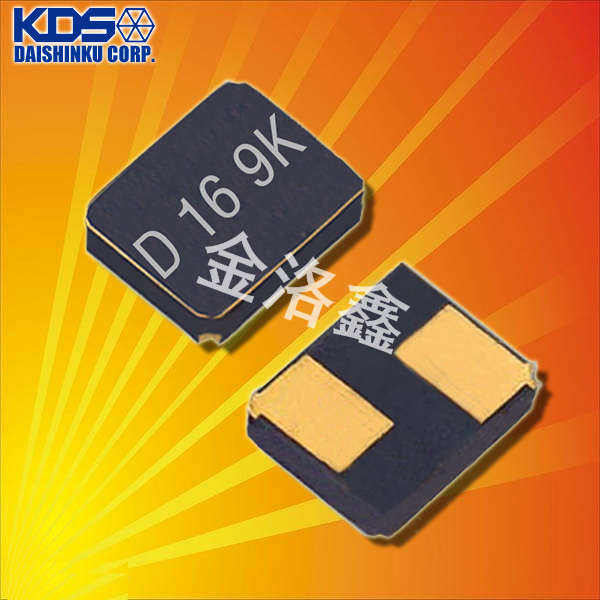

1ZCT24000BD0A|胎壓監測系統|DSX320GE晶振|安全裝置應用晶振

規格型號：4291379
頻率：24.000MHZ
尺寸：3225mm
PDF
產品描述：1ZCT24000BD0A|胎壓監測系統|DSX320GE晶振|安全裝置應用晶振,3225,24.000MHZ,憑借安全級電路設計與抗極端環境特性,具備卓越的抗振動,耐高低溫及低功耗能力,可從容應對胎壓監測系統的嚴苛使用環境.

1ZCT24000BD0A|胎壓監測系統|DSX320GE晶振|安全裝置應用晶振
1ZCT24000BD0A晶振依托DSX320GE安全裝置級成熟技術平臺開發,從材料選擇到生產工藝均遵循汽車安全零部件標準,構建起符合ISO26262功能安全標準的可靠性體系.內部核心采用高純度石英晶體諧振單元,經過多道激光微調工藝精準校準頻率,將諧振阻抗控制在50Ω以內,大幅減少胎壓數據在工業傳感器晶振內部處理,無線傳輸過程中的信號損耗,確保時鐘信號能高效傳遞至胎壓傳感器的MCU(微控制單元),射頻發射模塊,提升數據傳輸的實時性與準確性(如胎壓異常時,1秒內完成數據上傳與車載終端預警).引腳采用無鉛高溫焊料與鍍鎳工藝,鎳層厚度達3μm以上,不僅具備優異的耐高溫晶振焊接性能(兼容SMT高溫回流焊工藝,滿足傳感器批量生產需求),還能抵御輪胎內部的油污,濕氣及橡膠老化產生的腐蝕性物質侵蝕,有效防止引腳氧化,接觸不良導致的傳感器故障.

1ZCT24000BD0A|胎壓監測系統|DSX320GE晶振|安全裝置應用晶振

原廠型號 Originalmodel：	1ZCT24000BD0A	品牌brand：	日本大真空表晶
品牌brand：	KDS寬溫晶振	ESR（等效串聯電阻）Resistance)	-
型號名稱 Modelname：	DSX320GE	溫度OperatingTemperature	ー 40 ＋125℃
Type系列：	MHZCrystal	腳位Termination：	2pad
頻率 frequency：	24.000MHZ	封裝類型PackageType：	2-Smd
FrequencyStability頻率穩定度	-	高度PackageHeight：	0.95mm
frequencytolerance頻率容差	±30ppm	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	10PF	包裝Packaging：	TapeandReel

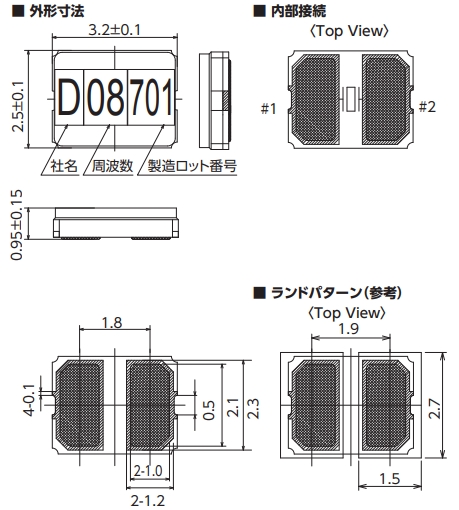

Size/Dimension尺寸	3225無源晶振	安裝方式MountingStyle：	SurfaceMount

1ZCT24000BD0A|胎壓監測系統|DSX320GE晶振|安全裝置應用晶振

KDS晶振	1TJF0SPDJ1AI00S	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF080DP1AI00P	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF090DP1AI007	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF0SPDP1AI008	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF125DP1AI009	DST310S	3215	32.768KHZ	12.5PF	20PPM
KDS晶振	1TJF090DP1AA00L	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF080DP1AA00K	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF0SPDP1AA00G	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF0SPDN1A000B	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TD125DGNS003	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS036	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS002	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD060DHNS014	DT-26	206	32.768KHZ	6.0PF	20PPM
KDS晶振	1TD125BHNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD075BHNS001	DT-26	206	32.768KHZ	7.5PF	10PPM
KDS晶振	1TD125BFNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD1001HNS001	DT-26	206	32.768KHZ	10.0PF	-6/+2PPM
KDS晶振	1TD1250HNS005	DT-26	206	32.768KHZ	12.5PF	30/40P
KDS晶振	1TC125DFNS030	DT-38	308	32.768KHZ	12.5PF	20PPM
KDS晶振	1TC125NFNS002	DT-38	308	32.768KHZ	12.5PF	1000PPM
KDS晶振	1TC125AFSS003	DT-38	308	32.768KHZ	12.5PF	5PPM
KDS晶振	1TC250E65	DT-38	308	32.768KHZ	12.5PF	+12/+28PPM
KDS晶振	1C240000AB0G	DSX321G	3225	40.000MHZ	10PF	10PPM
KDS晶振	1C241600CDAA	DSX321G	3225	41.6MHZ	10PF	30PPM
KDS晶振	1AJ043324C	SMD-49	11*4.6	4.332MHZ	12PF	20PPM
KDS晶振	1ZZNAE26000AB0J	DSX211SH	2016	26.000MHZ	7PF	10PPM
KDS晶振	1AJ17408AAGA	SMD-49	11*4.6	17.408MHZ	16PF	50PPM
KDS晶振	1AJ250004B	SMD-49	11*4.6	25.000MHZ	20PF	30PPM
KDS晶振	1ZZCAA24000BE0B	DSX211G	2016	24.000MHZ	10PF	20PPM
KDS晶振	1N227000BB0AK	DSX321G	3225	27.000MHZ	11PF	12PPM
KDS晶振	1N230000AB0C	DSX321G	3225	30.000MHZ	10PF	30PPM
KDS晶振	1N240000AB0J	DSX321G	3225	40.000MHZ	15PF	15PPM
KDS晶振	1XSE098304AR2	DSO321SR	3225	98.304MHZ	3.3V	50ppm
KDS晶振	1AJ100005B	SMD-49	11*4.6	10.000MHZ	12PF	50PPM
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000MHZ	7PF	10PPM
KDS晶振	1AJ240006AEA	SMD-49	11*4.6	24.000MHZ	16PF	50PPM
KDS晶振	1AJ240006AK	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ240006BB	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ245765C	SMD-49	11*4.6	24.576MHZ	18PF	30PPM
KDS晶振	ZC08759	DSO211AH	2016	25.000MHZ	3.3V	50ppm
KDS晶振	1AR270002GA	SMD-49	11*4.6	27.000MHZ	12.9PF	20PPM
KDS晶振	1AR304002A	SMD-49	11*4.6	30.400MHZ	12PF	50ppm
KDS晶振	1XXD16367MAA	DSB211SDN	2016	16.367MHZ	3.3V	1.5ppm
KDS晶振	ZC12467	DSA211SDN	2016	16.32MHZ	3.3V	1.5ppm
KDS晶振	1XXB16367MAA	DSB221SDN	2520	16.367MHZ	2.8V	1.5ppm
KDS晶振	1XXB16369JFA	DSB221SDN	2520	16.369MHZ	3.3V	1.5ppm
KDS晶振	ZC09382	DSA535SG	5032	18.432MHZ	3.3V	1.5ppm
KDS晶振	ZC12456	DSB211SDN	2016	16.320MHZ	3.3V	1.5ppm
KDS晶振	1ZNA32000BB0B	DSX221G	2520	32.000MHZ	12PF	15ppm
KDS晶振	ZC12965	DSA321SDN	3225	23.04MHZ	3.3V	1.5ppm
KDS晶振	ZC13727	DSX221SH	2520	24.000MHZ	10PF	30ppm
KDS晶振	1ZNA16000AB0P	DSX221G	2520	16.000MHZ	9PF	10ppm
KDS晶振	X1H013000B81H	HSX531S	5032	13.000MHZ	8PF	10ppm
KDS晶振	X4S013000DA1H-W	HSX421S	4025	13.000MHZ	10PF	20ppm
KDS晶振	1XSE009600AV	DSO321SV	3225	9.6MHZ	3.3V	100ppm
KDS晶振	1XSE012000AR58	DSO321SR	3225	12.000MHZ	3.3V	50ppm
KDS晶振	1ZZNAE48000ZZ0R	DSX211SH	2016	48.000MHZ	7PF	20PPM
KDS晶振	1N227000EE0L	DSX321G	3225	27.000MHZ	9PF	50ppm
KDS晶振	1ZZCAA27120BB0D	DSX211G	2016	27.12MHZ	10PF	20PPM
KDS晶振	1N226000AA0L	DSX321G	3225	26.000MHZ	7.5pf	10ppm
