- 規格型號：25631213
- 頻率：26
- 尺寸：2520mm
- 產品描述：進口2520小尺寸JAUCH晶振,Q26.0-JXS22-12-10/10-FU-WA-LF常用6G晶振，法國進口JAUCH晶振，2520晶振，超小型晶振，四腳晶振，無源晶振，石英晶振，貼片晶振，晶振，4墊版本2.5x2.0mmn10ppm類型可用，EMI屏蔽可能通過接...
進口2520小尺寸JAUCH晶振,Q 26.0-JXS22-12-10/10-FU-WA-LF常用6G晶振

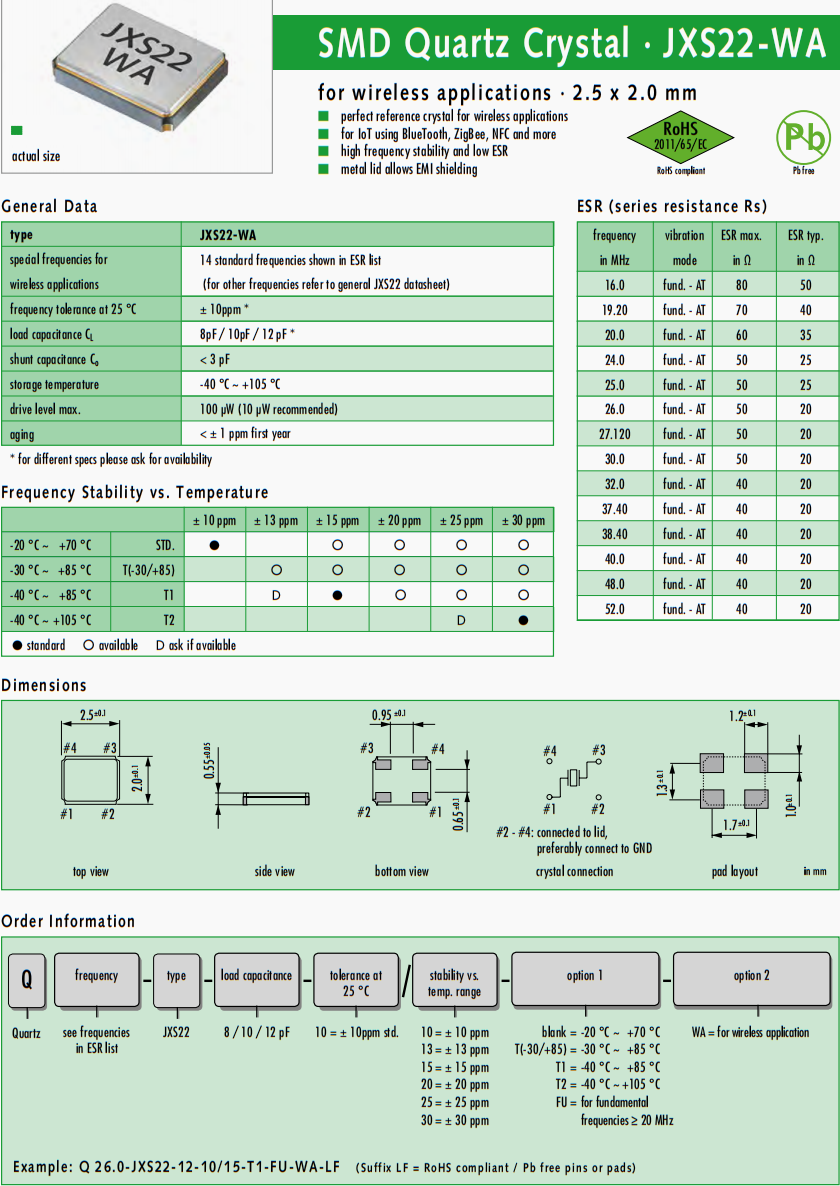

品說明.jpg)
品規格參數圖.jpg)
進口2520小尺寸JAUCH晶振,Q 26.0-JXS22-12-10/10-FU-WA-LF常用6G晶振
| 型號 | JXS22 | |||||||||
| 頻率范圍 | 12.0 ~ 54.0 MHz (fund. AT-cut) | |||||||||
| 頻率偏差度 | ± 10 ppm / ± 30 ppm | |||||||||
| 負載電容CL | 12 pF standard (option: 8 pF ~ 30 pF / series) | |||||||||
| 分流電容Co | < 5 pF | |||||||||
| 儲存溫度 | -40 °C ~ +90 °C | |||||||||
| 驅動電平最大值 | 100 µW (10 µW recommended) | |||||||||
| 老化 | < ± 3 ppm first year (< ± 1 ppm for tol. ± 10 ppm) | |||||||||

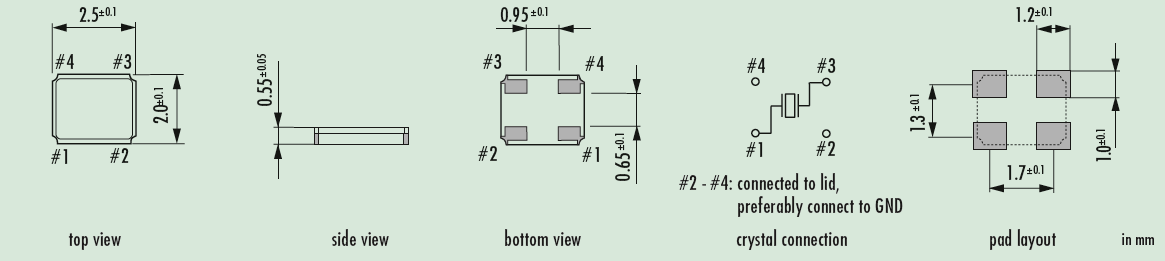

品尺寸圖.jpg)
進口2520小尺寸JAUCH晶振,Q 26.0-JXS22-12-10/10-FU-WA-LF常用6G晶振
| JAUCH原廠編碼 | 生產廠商 | 型號 | 頻率 | 頻率偏差 | 負載電荷 |
| Q 19.2-JXS22-10-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 10pF |
| Q 19.2-JXS22-12-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 12pF |
| Q 19.2-JXS22-8-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 8pF |
| Q 19.2-JXS22-9-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 9pF |
| Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 10pF |
| Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 12pF |
| Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 8pF |
| Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 9pF |
| Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 10pF |
| Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 12pF |
| Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 8pF |
| Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 9pF |
| Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 10pF |
| Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 12pF |
| Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 8pF |
| Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 9pF |
| Q 27.12-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 10pF |
| Q 27.12-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 12pF |
| Q 27.12-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 8pF |
| Q 27.12-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 9pF |
| Q 16.0-JXS22-10-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 10pF |
| Q 16.0-JXS22-12-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 12pF |
| Q 16.0-JXS22-8-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 8pF |
| Q 16.0-JXS22-9-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 9pF |
| Q 19.2-JXS22-10-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 10pF |
| Q 19.2-JXS22-12-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 12pF |
| Q 19.2-JXS22-8-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 8pF |
| Q 19.2-JXS22-9-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 9pF |
| Q 20.0-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 10pF |
| Q 20.0-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 12pF |
| Q 20.0-JXS22-8-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 8pF |
| Q 20.0-JXS22-9-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 9pF |
| Q 24.0-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 10pF |
| Q 24.0-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 12pF |
| Q 24.0-JXS22-8-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 8pF |
| Q 24.0-JXS22-9-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 9pF |
| Q 26.0-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 10pF |
| Q 26.0-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 12pF |
| Q 26.0-JXS22-8-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 8pF |
| Q 26.0-JXS22-9-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 9pF |
| Q 27.12-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 10pF |
| Q 27.12-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 12pF |
| Q 27.12-JXS22-8-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 8pF |
| Q 27.12-JXS22-9-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 9pF |
| Q 16.0-JXS22-10-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 10pF |
| Q 16.0-JXS22-12-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 12pF |
| Q 16.0-JXS22-8-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 8pF |
| Q 16.0-JXS22-9-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 9pF |
| Q 38.4-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 38.4MHz | ±10ppm | 10pF |
| Q 38.4-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 38.4MHz | ±10ppm | 12pF |
| Q 38.4-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 38.4MHz | ±10ppm | 8pF |
| Q 38.4-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 38.4MHz | ±10ppm | 9pF |
