CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC,瑞士微晶進口晶振,8037mm,編碼CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC,瑞士微晶進口晶振,尺寸8037mm,頻率32.768KHz,負載12.5pf,耐高溫晶振,計量設備晶振,工業設備晶振,汽車電子應用晶振,衛生保健晶振.
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC,瑞士微晶進口晶振,8037mm 特點：
1.CC1V-T1A是一種低頻SMT石英晶體單元結合了一個音叉石英晶體諧振器,它在真空環境下工作,采用密封陶瓷包裝與陶瓷蓋
2.高穩定性,低老化,密封保證,適用于惡劣環境的成熟產品
3.卓越的密封與金-錫預制,100%不含鉛,符合rohs標準
4.高抗沖擊和抗振動,可擴展工作溫度范圍

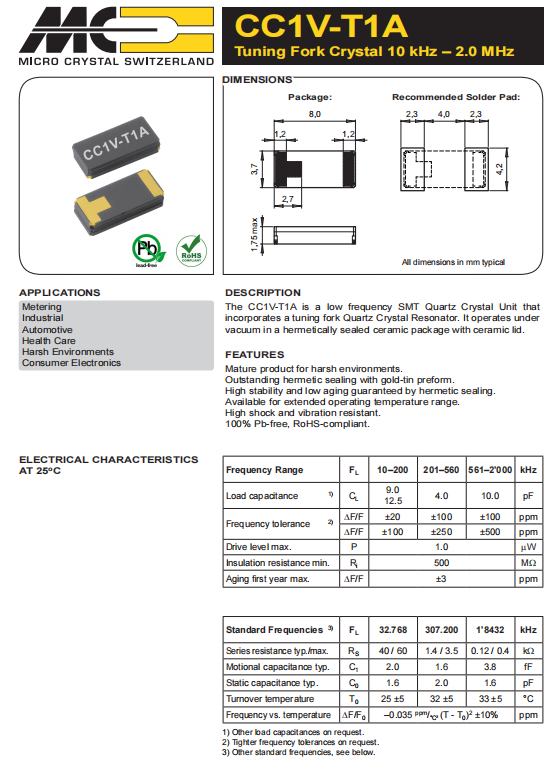

CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC,瑞士微晶進口晶振,8037mm,參數圖

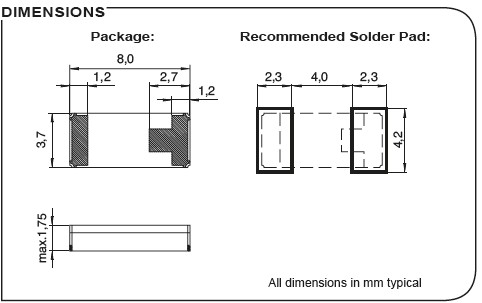

CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC,瑞士微晶進口晶振,8037mm尺寸圖

制造商零件編號	制造商	描述	產品類型
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC	Micro 晶振	晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C	Crystals
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC	Micro 晶振	晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C	Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC	Micro 晶振	晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC	Micro 晶振	晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C	Crystals
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC	Micro 晶振	晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C	Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC	Micro 晶振	晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC	Micro 晶振	晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C	Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC	Micro 晶振	晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C	Crystals
CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC	Micro 晶振	晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C	Crystals
CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C	Crystals
CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC	Micro 晶振	晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC	Micro 晶振	晶體 2.000 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC	Micro 晶振	晶體 40.000 kHz 9.0 pF +/-30 PPM -40/+85C	Crystals
