首頁進口晶振臺灣加高晶體X2B020000B81H-HV晶振,臺產HELE石英晶振,倒車影像系統晶振

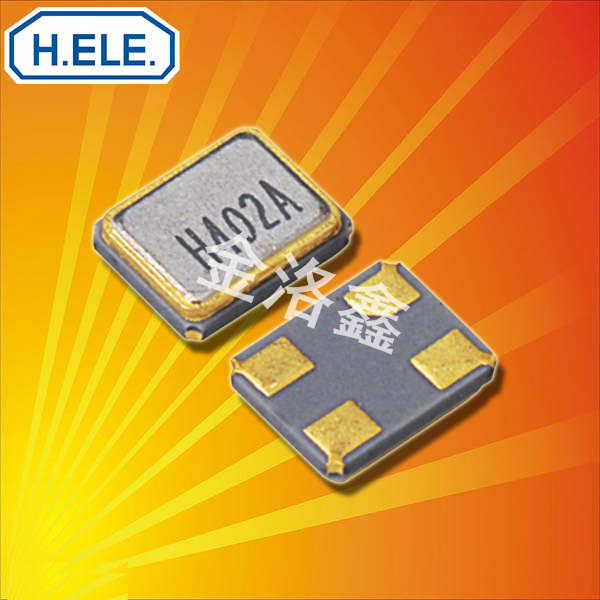

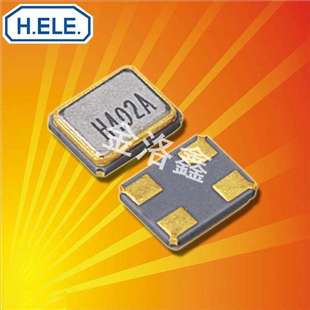

X2B020000B81H-HV晶振,臺產HELE石英晶振,倒車影像系統晶振

規格型號：50199255
頻率：20MHz
尺寸：2520mm
PDF
產品描述：X2B020000B81H-HV晶振,臺產HELE石英晶振,倒車影像系統晶振，特點：微型超薄SMD產品尺寸（2.52.00.5max）。高精度、可靠性高，耐熱性好。針對射頻應用、無線模塊設備、RFID應用和其他基于消費者的產品的優化解決方案。...

X2B020000B81H-HV晶振,臺產HELE石英晶振,倒車影像系統晶振，特點：微型超薄SMD產品尺寸（2.5×2.0×0.5 max）。高精度、可靠性高，耐熱性好。針對射頻應用、無線模塊設備、RFID應用和其他基于消費者的產品的優化解決方案。臺灣加高晶振公司，HELE晶振，高品質晶振，SMD晶振，石英晶振，無源晶振，高精度晶振，6G通訊設備晶振，無線傳輸晶振，局域網晶振，2520晶振，小體積晶振，低損耗晶振，北斗衛星定位模塊晶振

X2B020000B81H-HV晶振,臺產HELE石英晶振,倒車影像系統晶振

項目	HSX221SA
頻率范圍	12~24MHz	24~30MHz	30~54MHz
工作模式	Fundamental
頻率容差	±7ppm ~ ±50ppm (at. 25℃ ) , or Specify
溫度范圍內的頻率穩定度	±10ppm, ±15ppm, or Specify
工作溫度	-10 ~ +60 ℃ , or Specify
負載電荷	Series, 8pF, 10pF, 12pF, or Specify
驅動電平	10μW (100μW Max.)
等效串聯電阻	150ΩMax.	80ΩMax.	60ΩMax.
儲存溫度范圍	‘-40 ~ +125℃

X2B020000B81H-HV晶振,臺產HELE石英晶振,倒車影像系統晶振

原廠編碼	生產商	型號	頻率	頻率容差	負載電容	工作溫度
X2B026000M81H-HS	加高晶振	HSX221SA	26 MHz	±7ppm	8pF	-
X2B016000BA1H-U	加高晶振	HSX221SA	16 MHz	±10ppm	10pF	-30°C ~ 85°C
X2B012000BC1H-U	加高晶振	HSX221SA	12 MHz	±10ppm	12pF	-40°C ~ 105°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B012000B91H-U	加高晶振	HSX221SA	12 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B012000DC1H-X	加高晶振	HSX221SA	12 MHz	±20ppm	12pF	-10°C ~ 60°C
X2B016000B91H-HU	加高晶振	HSX221SA	16 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000BC1H-HV	加高晶振	HSX221SA	16 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B019200BZ1H-CHZ	加高晶振	HSX221SA	19.2 MHz	±12ppm	7pF	-30°C ~ 85°C
X2B024000BC1HA-V	加高晶振	HSX221SA	24 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B024000BC1H-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-30°C ~ 85°C
X2B024000BCIH-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-40°C ~ 85°C
X2B024000FK1H-V	加高晶振	HSX221SA	24 MHz	±30ppm	20pF	-20°C ~ 75°C
X2B025000BI1H-U	加高晶振	HSX221SA	25 MHz	±20ppm	18pF	-40°C ~ 85°C
X2B026000B71HZ-HPR	加高晶振	HSX221SA	26 MHz	±10ppm	7.2pF	-20°C ~ 75°C
X2B026000B81H-CHZ	加高晶振	HSX221SA	26 MHz	±11ppm	8pF	-30°C ~ 85°C
X2B026000B91H-HR	加高晶振	HSX221SA	26 MHz	±10ppm	9pF	-20°C ~ 75°C
X2B026000B91H-HV	加高晶振	HSX221SA	26 MHz	±15ppm	9pF	-20°C ~ 75°C
X2B026000B91H-HZ	加高晶振	HSX221SA	26 MHz	±10ppm	9pF	-30°C ~ 85°C
X2B026000B91H-U	加高晶振	HSX221SA	26 MHz	±20ppm	9pF	-40°C ~ 85°C
X2B026000L91H-S	加高晶振	HSX221SA	26 MHz	±12ppm	9pF	-20°C ~ 75°C
X2B026000B71HZ	加高晶振	HSX221SA	26 MHz	±10ppm	11.5pF	-10°C ~ 60°C
X2B026000BC1H-Z	加高晶振	HSX221SA	26 MHz	±10ppm	12pF	-20°C ~ 85°C
X2B027000BC1H-HU	加高晶振	HSX221SA	27 MHz	±10ppm	12pF	-10°C ~ 70°C
X2B02863ADC1H-W	加高晶振	HSX221SA	28.6363 MHz	±20ppm	12pF	-20°C ~ 70°C
X2B030000BA1H-HW	加高晶振	HSX221SA	30 MHz	±20ppm	10pF	-20°C ~ 70°C
X2B030000BA1H-U	加高晶振	HSX221SA	30 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B030000FA1H-X	加高晶振	HSX221SA	30 MHz	±30ppm	10pF	-20°C ~ 70°C
X2B032000C81H-HU	加高晶振	HSX221SA	32 MHz	±15ppm	8pF	-20°C ~ 75°C
X2B032000D81H-U	加高晶振	HSX221SA	32 MHz	±20ppm	8pF	-30°C ~ 85°C
X2B032000BC1H-HZ	加高晶振	HSX221SA	32 MHz	±12ppm	12pF	-30°C ~ 85°C
X2B038400BA1H-U	加高晶振	HSX221SA	38.4 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B040000B91H-U	加高晶振	HSX221SA	40 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B04000BF1H-HZ	加高晶振	HSX221SA	40 MHz	±10ppm	15pF	-30°C ~ 85°C
X2B040000BF1H-HT	加高晶振	HSX221SA	40 MHz	±18ppm	15pF	0°C ~ 85°C
X2B040000BF1H-HZ	加高晶振	HSX221SA	40 MHz	±10ppm	15pF	-30°C ~ 85°C
X2B012000B91H-U	加高晶振	HSX221SA	12 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000B91H-HU	加高晶振	HSX221SA	16 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000BC1H-HV	加高晶振	HSX221SA	16 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B024000BCIH-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-40°C ~ 85°C
X2B024000FK1H-V	加高晶振	HSX221SA	24 MHz	±30ppm	20pF	-20°C ~ 75°C
X2B026000B81H-CHZ	加高晶振	HSX221SA	26 MHz	±11ppm	8pF	-30°C ~ 85°C
X2B026000B91H-U	加高晶振	HSX221SA	26 MHz	±20ppm	9pF	-40°C ~ 85°C
X2B030000BA1H-HW	加高晶振	HSX221SA	30 MHz	±20ppm	10pF	-20°C ~ 70°C
X2B030000BA1H-U	加高晶振	HSX221SA	30 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B030000FA1H-X	加高晶振	HSX221SA	30 MHz	±30ppm	10pF	-20°C ~ 70°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B040000BF1H-H	加高晶振	HSX221SA	40 MHz	±18ppm	15pF	0°C ~ 85°C
