Connor-Winfield Corporation公司是一家成立于美國的私人控股電子產品制造商,成立至今已有50多年的發展,從默默無聞的小公司到如今的知名企業,一路上只有豐富的產品線見證其一路的發展與成長,作為一直致力于走在技術最前沿的公司,Connor-Winfield主要專注于設計和制造用于各種電子應用的石英計時電路和振蕩器。隨著公司不斷發展強大Connor-Winfield 擴展到其他產品領域，同時繼續關注其核心計時根源。精密TCXO溫補晶振支持多種網絡同步設計D32G-026.0M
Connor-Winfield的頻率控制產品廣泛用于各種應用，包括電信、LAN 和 WAN 產品、計算機以及其他微處理器和電子設備。我們專注于設計定制和半定制頻率控制產品，但也提供廣泛的標準振蕩器產品和非晶體振蕩器。

The Connor-Winfield Corporation – Precision OCXOs and TCXOs for Time and Frequency Sync Standards IEEE-1588 TOP Precision Timing - Precision timing is more critical for the development of communication networks based on IEEE-1588 timing over  packet (TOP) and 100/ 400 Gigabit Ethernet synchronization technologies. Connor Winfield developed its line of OCXOs and TCXOs to specifically support the emerging IEEE 1588 V2 standards as outlined by ITU-G.8262 Option 1 and Option 2 and ITU-G.8263, ITU-G.8272 and ITU-G.8273 as well as the traditional Sonet, SDN and OTN standards G.813 and GR-1244 Stratum 3 and Stratum 3E. Many frequency options are available from stock to support a variety of network synchronization designs. Follow the links below for stock availability.
隨著康納溫菲爾德晶振公司發展需要,不斷增加新的產品線,其中包含研發生產用于時間和頻率同步標準的精密ocxo和tcxo IEEE-1588 TOP精確授時——精確授時對于基于IEEE-1588授時器的通信網絡的發展至關重要包(TOP)和100/ 400千兆以太網同步技術。Connor Winfield開發了專門支持ocxo和tcxo的產品線 ITU-G.8262概述的新興IEEE 1588 V2標準選項1和選項2和ITU-G。8263年,ITU-G。8272年,ITU-G。8273號和傳統Sonet、SDN和OTN標準G.813和GR-1244 Stratum 3和Stratum 3E。許多頻率選項可從股票支持多種網絡同步設計。精密TCXO溫補晶振支持多種網絡同步設計D32G-026.0M

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Operating Temperature     工作溫度
HSM613-114.285M	Connor-Winfield	HSM6	114.285MHz	-40°C ~ 85°C
HSM613-125.0M	Connor-Winfield	HSM6	125MHz	-40°C ~ 85°C
HSM613-125.0M	Connor-Winfield	HSM6	125MHz	-40°C ~ 85°C
HSM613-125.0M	Connor-Winfield	HSM6	125MHz	-40°C ~ 85°C
CWX823-125.0M	Connor-Winfield	CWX823	125MHz	-20°C ~ 70°C
CWX823-125.0M	Connor-Winfield	CWX823	125MHz	-20°C ~ 70°C
CWX823-125.0M	Connor-Winfield	CWX823	125MHz	-20°C ~ 70°C
CWX823-156.25M	Connor-Winfield	CWX823	156.25MHz	-20°C ~ 70°C
CWX823-156.25M	Connor-Winfield	CWX823	156.25MHz	-20°C ~ 70°C
CWX823-156.25M	Connor-Winfield	CWX823	156.25MHz	-20°C ~ 70°C
D32G-016.368M	Connor-Winfield	D32G	16.368MHz	-30°C ~ 85°C
D32G-016.368M	Connor-Winfield	D32G	16.368MHz	-30°C ~ 85°C
D32G-016.368M	Connor-Winfield	D32G	16.368MHz	-30°C ~ 85°C
D32G-026.0M	Connor-Winfield	D32G	26MHz	-30°C ~ 85°C
D32G-026.0M	Connor-Winfield	D32G	26MHz	-30°C ~ 85°C
D32G-026.0M	Connor-Winfield	D32G	26MHz	-30°C ~ 85°C
D32G-019.2M	Connor-Winfield	D32G	19.2MHz	-30°C ~ 85°C
D32G-019.2M	Connor-Winfield	D32G	19.2MHz	-30°C ~ 85°C
D32G-019.2M	Connor-Winfield	D32G	19.2MHz	-30°C ~ 85°C
HSM93-032.0M	Connor-Winfield	HSM9	32MHz	0°C ~ 70°C
HSM93-016.0M	Connor-Winfield	HSM9	16MHz	0°C ~ 70°C

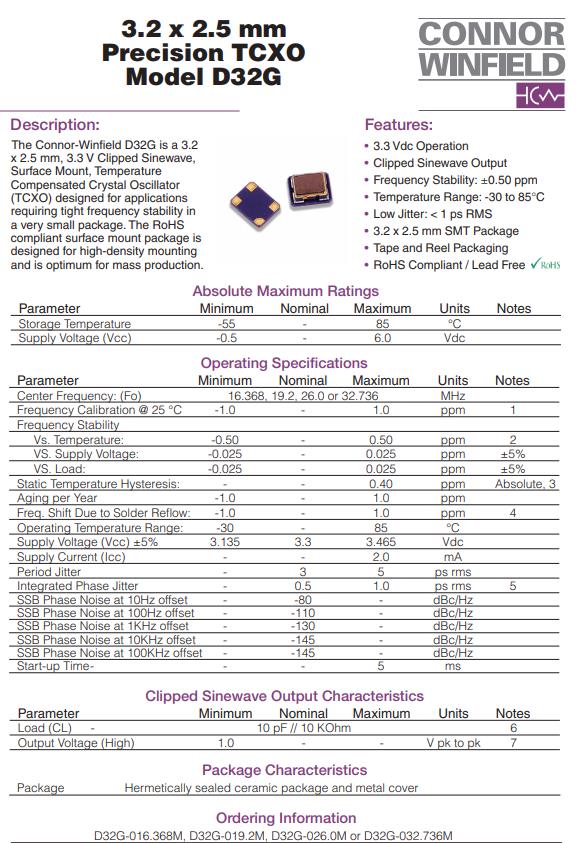

D32G-026.0M描述:
Connor-Winfield D32G是3.2x 2.5 mm, 3.3 V表面掛載、溫補晶振(TCXO)為應用而設計要求高度的頻率穩定性一個非常小的包裹。的RoHS兼容的表面安裝包專為高密度安裝而設計適合批量生產。
D32G-026.0M特點:
•3.3 Vdc運行
•剪切正弦波輸出
•頻率穩定性:±0.50 ppm
•溫度范圍:-30 ~ 85°C
•低抖動:< 1 ps RMS
•3.2 × 2.5 mm SMT封裝
•磁帶和卷軸包裝
符合RoHS要求/無鉛
