我們的高溫晶體振蕩器（HX系列）專門設計用于支持高達125°C的高溫，以滿足當今復雜系統的需求。該系列包括CMOS/TTL、LVPECL、LVDS、CML和HCSL輸出邏輯以及從2.0mmx1.6mm到7.0mmx5.0mm的各種尺寸。

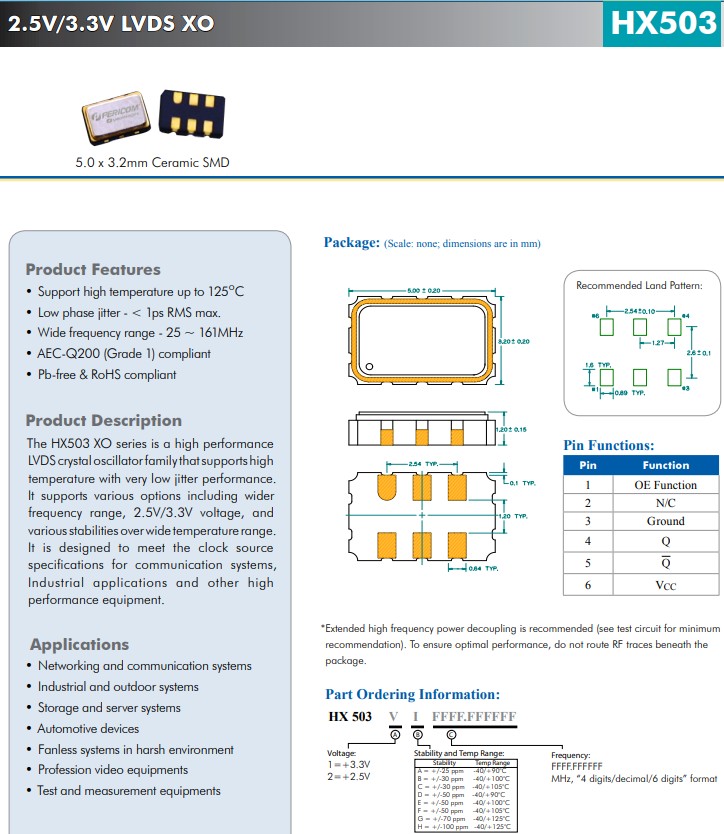

百利通亞陶晶振HX503 XO系列是高性能LVDS晶振系列，支持高溫且抖動性能極低。HX503系列小體積晶振尺寸5.0x3.2mm、高溫LVDS差分晶體振蕩器，它支持各種選項，包括更寬的頻率范圍、2.5V/3.3V電壓以及在寬溫度范圍內的各種穩定性。它旨在滿足通信系統、工業應用和其他高性能設備的時鐘源規范。
HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振

FD1940004	Diodes Incorporated	SaRonix-eCera™ FD	19.44MHz	±50ppm
FD2000046	Diodes Incorporated	SaRonix-eCera™ FD	20MHz	±50ppm
FD2000048	Diodes Incorporated	SaRonix-eCera™ FD	20MHz	±50ppm
FD2000049	Diodes Incorporated	SaRonix-eCera™ FD	20MHz	±25ppm
FD2400022	Diodes Incorporated	SaRonix-eCera™ FD	24MHz	±50ppm
FD2400023	Diodes Incorporated	SaRonix-eCera™ FD	24MHz	±50ppm
FD2400024	Diodes Incorporated	SaRonix-eCera™ FD	24MHz	±25ppm
FD2450018	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm
FD2450019	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±25ppm
FD2500049	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±25ppm
FD2500052	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm
FD2500054	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm
FD2500057	Diodes Incorporated	SaRonix-eCera™ FD	25.0012MHz	±25ppm
FD2500058	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm
FD2500061	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±25ppm
FD2600027	Diodes Incorporated	SaRonix-eCera™ FD	26MHz	±50ppm
FD2600028	Diodes Incorporated	SaRonix-eCera™ FD	26MHz	±25ppm
FD2600030	Diodes Incorporated	SaRonix-eCera™ FD	26MHz	±50ppm
FD2600031	Diodes Incorporated	SaRonix-eCera™ FD	26MHz	±25ppm
FD2660003	Diodes Incorporated	SaRonix-eCera™ FD	26.66MHz	±25ppm
FD2700033	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±25ppm
FD2700034	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±50ppm
FD2700035	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±50ppm
FD2700038	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±50ppm
FD2700043	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±50ppm

HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振
產品特點：

支持高達125°C的高溫

低相位抖動 - < 1ps RMS最大值。

寬頻率范圍 - 25 ~ 161MHz石英晶振

符合AEC-Q200（1級）標準

無鉛且符合 RoHS 標準

應用于：網絡和通信系統，工業和戶外系統，存儲和服務器系統，汽車設備，惡劣環境下的無風扇系統，專業視頻設備，測試和測量設備

FD2860005	Diodes Incorporated	SaRonix-eCera™ FD	28.6363MHz	±50ppm
FD2860006	Diodes Incorporated	SaRonix-eCera™ FD	28.63636MHz	±50ppm
FD3000014	Diodes Incorporated	SaRonix-eCera™ FD	30MHz	±25ppm
FD3000015	Diodes Incorporated	SaRonix-eCera™ FD	30MHz	±50ppm
FD3000016	Diodes Incorporated	SaRonix-eCera™ FD	30MHz	±50ppm
FD3120001	Diodes Incorporated	SaRonix-eCera™ FD	31.25MHz	±25ppm
FD3300021	Diodes Incorporated	SaRonix-eCera™ FD	33MHz	±50ppm
FD3300022	Diodes Incorporated	SaRonix-eCera™ FD	33MHz	±25ppm
FD3300023	Diodes Incorporated	SaRonix-eCera™ FD	33MHz	±50ppm
FD3330016	Diodes Incorporated	SaRonix-eCera™ FD	33.333MHz	±25ppm
FD3330017	Diodes Incorporated	SaRonix-eCera™ FD	33.333MHz	±50ppm
FD3330018	Diodes Incorporated	SaRonix-eCera™ FD	33.3333MHz	±50ppm
FD3330019	Diodes Incorporated	SaRonix-eCera™ FD	33.3333MHz	±25ppm
FD3330020	Diodes Incorporated	SaRonix-eCera™ FD	33.3333MHz	±50ppm
FD3330022	Diodes Incorporated	SaRonix-eCera™ FD	33.333MHz	±50ppm
FD3330024	Diodes Incorporated	SaRonix-eCera™ FD	33.333333MHz	±25ppm
FD3330026	Diodes Incorporated	SaRonix-eCera™ FD	33.333MHz	±50ppm
FD3430001	Diodes Incorporated	SaRonix-eCera™ FD	34.368MHz	±25ppm
FD3530003	Diodes Incorporated	SaRonix-eCera™ FD	35.328MHz	±50ppm
FD3530004	Diodes Incorporated	SaRonix-eCera™ FD	35.328MHz	±25ppm
FD3530005	Diodes Incorporated	SaRonix-eCera™ FD	35.328MHz	±50ppm
FD3600009	Diodes Incorporated	SaRonix-eCera™ FD	36MHz	±25ppm
FD3680001	Diodes Incorporated	SaRonix-eCera™ FD	36.864MHz	±50ppm
FD3680002	Diodes Incorporated	SaRonix-eCera™ FD	36.864MHz	±25ppm
FD3680003	Diodes Incorporated	SaRonix-eCera™ FD	36.864MHz	±50ppm

Product Parameters

Subfamily	High Temp XO
Product Series	HX
Compliance(Only Automotive supports PPAP)	Standard
Freq Range (MHz)	25 to 162 (1.8V/2.5V/3.3V)
Jitter RMS (ps)	<1
Stability (PPM)	25 to 100
Package Size (mm)	5.0 x 3.2 x 1.2
PkgType	Ceramic Seam
Output Logic	LVDS
Supply Voltage (V)	3.3, 2.5
Pads	6

HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振
產品參數：

類別高溫XO 貼片振蕩器

產品系列 HX

合規性（僅汽車支持PPAP）標準

頻率范圍 (MHz) 25至162 (1.8V/2.5V/3.3V)

抖動均方根 (ps) <1

穩定性 (PPM) 25 到 100

包裝尺寸 5.0x3.2x1.2mm

包裝類型陶瓷縫

輸出邏輯 LVDS

電源電壓 3.3V, 2.5V

墊 6腳

FD4000119	Diodes Incorporated	SaRonix-eCera™ FD	40MHz	±50ppm
FD4000120	Diodes Incorporated	SaRonix-eCera™ FD	40MHz	±25ppm
FD4000121	Diodes Incorporated	SaRonix-eCera™ FD	40MHz	±50ppm
FD4000123	Diodes Incorporated	SaRonix-eCera™ FD	40MHz	±25ppm
FD4100001	Diodes Incorporated	SaRonix-eCera™ FD	41MHz	±50ppm
FD4100002	Diodes Incorporated	SaRonix-eCera™ FD	41MHz	±50ppm
FD4400070	Diodes Incorporated	SaRonix-eCera™ FD	41MHz	±50ppm
FD4470001	Diodes Incorporated	SaRonix-eCera™ FD	44.736MHz	±25ppm
FD4800046	Diodes Incorporated	SaRonix-eCera™ FD	48MHz	±50ppm
FD4800047	Diodes Incorporated	SaRonix-eCera™ FD	48MHz	±25ppm
FD4800048	Diodes Incorporated	SaRonix-eCera™ FD	48MHz	±50ppm
FD4800050	Diodes Incorporated	SaRonix-eCera™ FD	48MHz	±50ppm
FD4910004	Diodes Incorporated	SaRonix-eCera™ FD	49.152MHz	±25ppm
FD5000032	Diodes Incorporated	SaRonix-eCera™ FD	50MHz	±50ppm
FD5000033	Diodes Incorporated	SaRonix-eCera™ FD	50MHz	±25ppm
FD5000034	Diodes Incorporated	SaRonix-eCera™ FD	50MHz	±50ppm
FD5000036	Diodes Incorporated	SaRonix-eCera™ FD	50MHz	±50ppm
FD5000037	Diodes Incorporated	SaRonix-eCera™ FD	50MHz	±50ppm
FD5000040	Diodes Incorporated	SaRonix-eCera™ FD	50MHz	±50ppm
FD5400017	Diodes Incorporated	SaRonix-eCera™ FD	54MHz	±50ppm
FD5670001	Diodes Incorporated	SaRonix-eCera™ FD	56.75MHz	±50ppm
FD6000016	Diodes Incorporated	SaRonix-eCera™ FD	60MHz	±50ppm
FD6250007	Diodes Incorporated	SaRonix-eCera™ FD	62.5MHz	±50ppm
FD6250008	Diodes Incorporated	SaRonix-eCera™ FD	62.5MHz	±25ppm
FD6250009	Diodes Incorporated	SaRonix-eCera™ FD	62.5MHz	±50ppm

HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振
HX501 25 ~ 100 5.0x3.2x1.2 1至135 (1.8V) ; 1 至 162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷縫 1.8V/2.5V/3.3V、5.0x3.2mm、高溫CMOS晶體振蕩器

HX502 25 ~ 100 5.0x3.2x1.2 25至162 (2.5V/3.3V) <1 LVPECL 3.32.5 6 陶瓷縫 2.5V/3.3V、5.0x3.2mm、高溫LVPECL晶體振蕩器

HX503 25 ~ 100 5.0x3.2x1.2 25至162 (1.8V/2.5V/3.3V) <1 LVDS 3.32.5 6 陶瓷縫 2.5V/3.3V、5.0x3.2mm、高溫LVDS晶體振蕩器

HX701 25 ~ 100 7.0x5.0x1.4 1至135 (1.8V) ; 1 至 162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷縫 1.8V/2.5V/3.3V、7.0x5.0mm、高溫CMOS晶體振蕩器

HX702 25 ~ 100 7.0x5.0x1.4 25至162 (2.5V/3.3V) <1 LVPECL 3.32.5 6 陶瓷縫 2.5V/3.3V、7.0x5.0mm、高溫LVPECL晶體振蕩器

HX703 25 ~ 100 7.0x5.0x1.4 25至162 (1.8V/2.5V/3.3V) <1 LVDS 3.32.5 6 陶瓷縫 2.5V/3.3V、7.0x5.0mm、高溫LVDS晶體振蕩器
