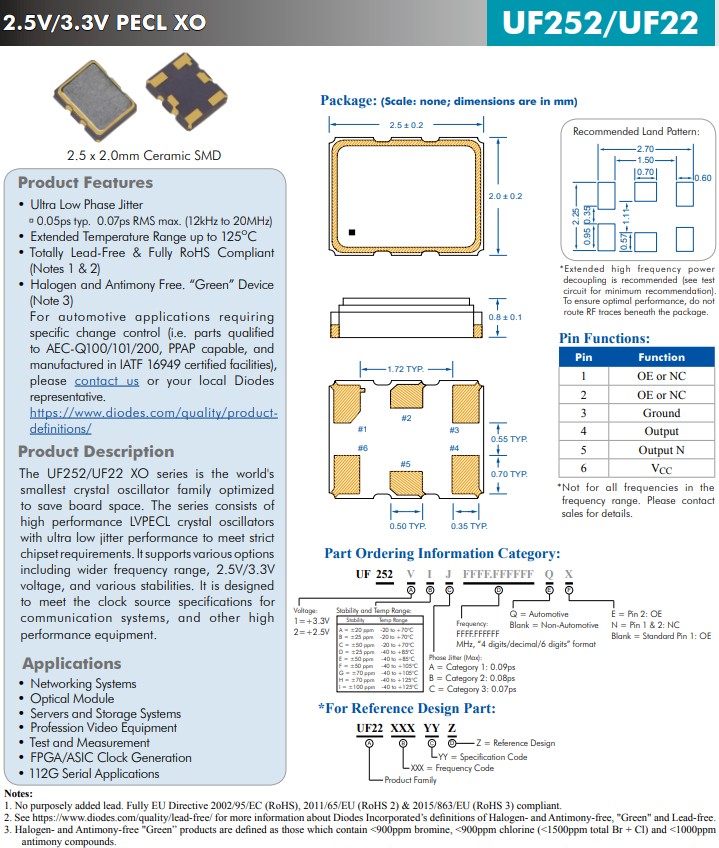

最小尺寸的超低抖動晶體振蕩器(XO)，百利通亞陶晶振UF252/UF22 XO 系列是世界上最小的石英晶體振蕩器系列，經過優化以節省電路板空間。該系列由具有超低抖動性能的高性能LVPECL晶體振蕩器組成，小體積尺寸2.5x2.0mm、超低抖動 LVPECL差分晶體振蕩器，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。

特征：

超低相位抖動

0.05ps 典型值。0.07ps RMS 最大值。（12kHz至20MHz）

擴展溫度范圍高達125℃

完全無鉛且完全符合 RoHS 標準

不含鹵素和銻。“綠色”裝置

應用程序：網絡系統，光模塊，服務器和存儲系統，專業視頻設備，測試與測量，FPGA/ASIC 時鐘生成，112G串行應用
UFQ252/22 XO系列最小尺寸的超低抖動晶體振蕩器,UF2522AB150.000000QN,晶體振蕩器

FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C

FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C

UFQ252/22 XO系列最小尺寸的超低抖動晶體振蕩器,UF2522AB150.000000QN,晶體振蕩器

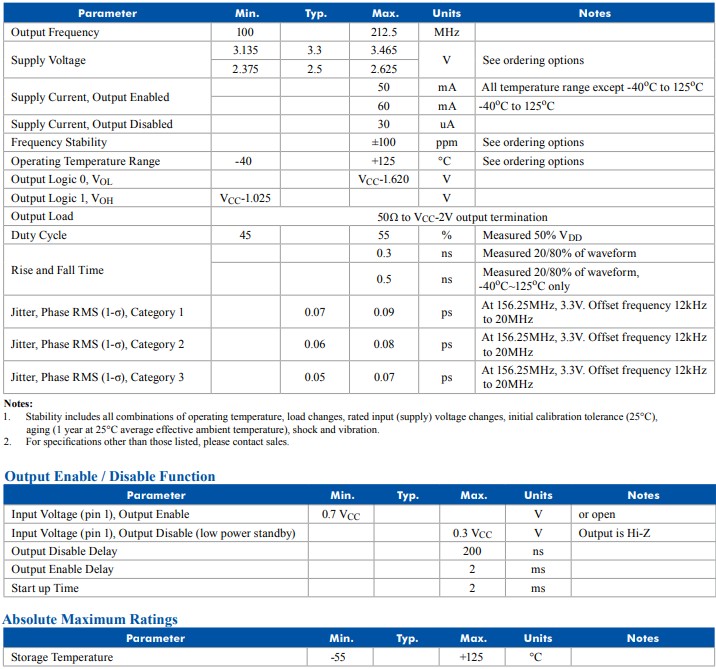

產品參數：

穩定性 20PPM到100PPM

包裝尺寸 2.5x2.0x0.8mm有源晶振

包裝類型陶瓷縫

頻率范圍 100MHz至212.5MHz

抖動均方根 0.08ps至0.09ps

輸出邏輯 HCSL

電源電壓 3.3V, 2.5V

墊 6腳

產品系列 UFQ2

FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-40°C ~ 85°C

DIODES UF系列超低抖動，微型晶體振蕩器是用于高性能計算和網絡的前沿要求最苛刻的行業高級應用。Automotivecompliant變體可用。這種新型晶體振蕩器支持廣泛的應用要求非常低的噪音采用最小的工業標準封裝之一。較大的包裝也可滿足靈活設計需求。有多種輸出標準可供選擇: LVPECL，LVDS和HCSL，以及2.5V和3.3V的電源電壓，提供客戶指定的頻率高達212.5MHz，溫度穩定性達到25PPM。
