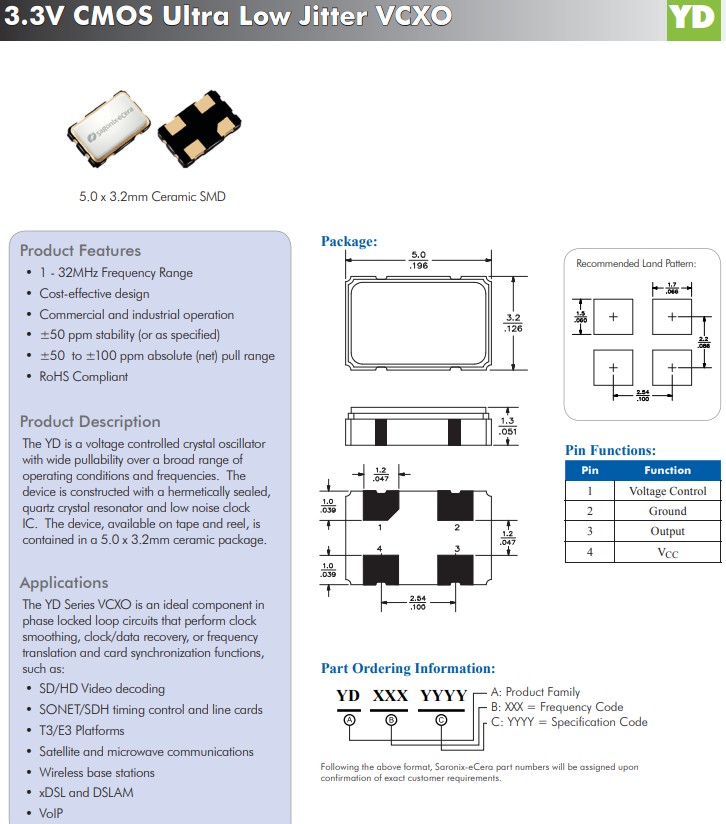

亞陶晶振YD系列是一種壓控晶體振蕩器，在廣泛的工作條件和頻率范圍內具有廣泛的可拉性。該器件由密封的石英晶體諧振器和低噪聲時鐘IC構成。該器件采用卷帶包裝，采用5.0x 3.2mm 陶瓷封裝。YD系列VCXO晶振是執行時鐘平滑、時鐘/數據恢復或頻率轉換和卡同步功能的鎖相環電路中的理想組件。亞陶晶振YD系列由密封的石英晶體諧振器和低噪聲時鐘IC構成,YNWMAX153,5032mm晶振,有源晶振

HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C

亞陶晶振YD系列由密封的石英晶體諧振器和低噪聲時鐘IC構成,YNWMAX153,5032mm晶振,有源晶振
特征：

頻率范圍：1至32MHz 石英晶振

高性價比的設計

商業和工業運營

±50 ppm 穩定性（或按規定）

±50 至 ±100ppm 絕對（凈）牽引范圍

符合 RoHS 標準

應用：

標清/高清視頻解碼

SONET/SDH 時序控制和線卡

T3/E3 平臺

衛星和微波通信

無線基站

xDSL 和 DSLAM

網絡電話

NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C

Product Parameters

ProductSeries	YD_3
Family	VCXO
Legacy PN	None
Output Logic	CMOS
SupplyVoltage	3.3
PullRange	50 to 100 ppm
Freq Range (MHz)	1 to 66
Jitter RMS (ps)	<2 ps RMS
Package Type	Ceramic Seam
Package Size (mm)	5.0 x 3.2 x 1.3
Pads	4
NotRecommended	0

亞陶晶振YD系列由密封的石英晶體諧振器和低噪聲時鐘IC構成,YNWMAX153,5032mm晶振,有源晶振
產品參數：

產品系列 YD_3

家庭 VCXO

舊版 PN 沒有任何

輸出邏輯 CMOS

電源電壓 3.3

拉距 50至100ppm

頻率范圍 (MHz) 1 至 66

抖動均方根 (ps) <2 ps RMS

包裝類型陶瓷縫

包裝尺寸 5.0x3.2x1.3mmSMD晶振

墊 4

不建議 0

NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
