FP2700027-百利通亞陶SMD晶振-7050mm-27.000MHz,FP石英晶體諧振器,FP2700027晶振,臺灣百利通亞陶晶振,進口SMD晶振,7050mm晶振,頻率27.000MHz,負載20pf,工作溫度-20~75°C,高精度晶振,無鉛環保晶振,磁盤驅動器晶振,手持設備晶振,數碼影音晶振.

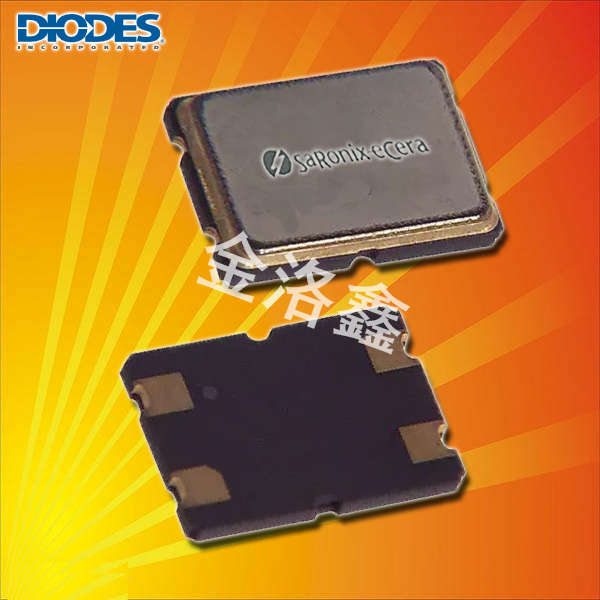

FP2700027-百利通亞陶SMD晶振-7050mm-27.000MHz 特點
•堅固的at切割晶體結構
•非常緊湊的SMD封裝
•可在磁帶和卷軸;16毫米磁帶,每卷1000支
•FP系列接縫密封裝置包括包括一個亞微米結構AT-cut帶狀晶體器件,該器件安裝在7.0 x 5.0mm的集成電路封裝年齡,這些緊湊的晶體是理想的表面安裝在密集的流行,而不是印刷電路板應用程序
•無鉛,符合RoHS/綠色標準

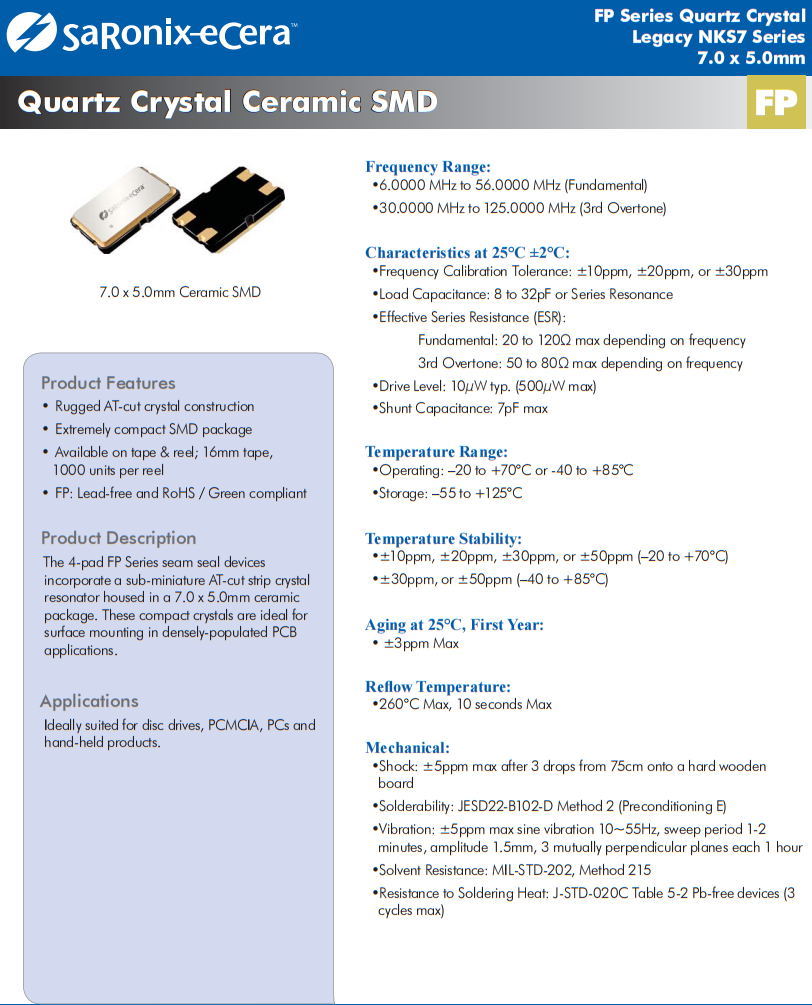

FP2700027-百利通亞陶SMD晶振-7050mm-27.000MHz,參數圖

FP2700027-百利通亞陶SMD晶振-7050mm-27.000MHz 尺寸圖

制造商零件編號	制造商	系列	頻率	頻率穩定性	頻率容差	負載電容
FP0800018	Diodes 晶振	FP	8 MHz	±50ppm	±50ppm	18pF
FP0800056Z	Diodes 晶振	FP	8 MHz	±30ppm	±30ppm	18pF
FP2500070	Diodes 晶振	FP	25 MHz	±10ppm	±10ppm	10pF
FP1000018	Diodes 晶振	FP	10MHz	±50ppm	±50ppm	18pF
FP1070001	Diodes 晶振	FP	10.779375 MHz	±10ppm	±10ppm	12pF
FP1200039	Diodes 晶振	FP	12 MHz	±50ppm	±30ppm	18pF
FP1200040	Diodes 晶振	FP	12 MHz	±30ppm	±30ppm	20pF
FP1200042	Diodes 晶振	FP	12 MHz	±50ppm	±50ppm	22pF
FP1840019	Diodes 晶振	FP	18.432 MHz	±50ppm	±30ppm	20pF
FP2400015	Diodes 晶振	FP	24 MHz	±20ppm	±20ppm	20pF
FP2450003	Diodes 晶振	FP	24.576 MHz	±30ppm	±30ppm	20pF
FP2500053	Diodes 晶振	FP	25 MHz	±30ppm	±30ppm	20pF
FP2500054	Diodes 晶振	FP	25 MHz	±30ppm	±30ppm	18pF
FP2500060	Diodes 晶振	FP	25.001875 MHz	±15ppm	±10ppm	12pF
FP2500068	Diodes 晶振	FP	25 MHz	±20ppm	±20ppm	20pF
FP2650002	Diodes 晶振	FP	26.5625 MHz	±30ppm	±30ppm	10pF
FP2650003	Diodes 晶振	FP	26.5625 MHz	±30ppm	±30ppm	15pF
FP2700027	Diodes 晶振	FP	27 MHz	±10ppm	±10ppm	20pF
FP3000013	Diodes 晶振	FP	30 MHz	±20ppm	±20ppm	20pF
FP0600026	Diodes 晶振	FP	6 MHz	±50ppm	±30ppm	20pF
FP0600027	Diodes 晶振	FP	6 MHz	±30ppm	±20ppm	18pF
FP0600035	Diodes 晶振	FP	6 MHz	±30ppm	±30ppm	20pF
FP0600038	Diodes 晶振	FP	6 MHz	±30ppm	±30ppm	16pF
FP0600039	Diodes 晶振	FP	6 MHz	±50ppm	±20ppm	18pF
FP0600040	Diodes 晶振	FP	6 MHz	±50ppm	±30ppm	12pF
FP0600041	Diodes 晶振	FP	6 MHz	±30ppm	±30ppm	12pF
FP0730013	Diodes 晶振	FP	7.3728 MHz	±50ppm	±50ppm	20pF
FP0730016	Diodes 晶振	FP	7.3728 MHz	±30ppm	±30ppm	20pF
FP0800046	Diodes 晶振	FP	8 MHz	±15ppm	±10ppm	20pF
FP0800047	Diodes 晶振	FP	8 MHz	±50ppm	±30ppm	18pF
FP0800049	Diodes 晶振	FP	8 MHz	±30ppm	±20ppm	18pF
FP6400002	Diodes 晶振	FP	64 MHz	±30ppm	±30ppm	18pF
FP0600044Q	Diodes 晶振	FP	6 MHz	±40ppm	±10ppm	18pF
FP0730017Z	Diodes 晶振	FP	7.3728 MHz	±30ppm	±30ppm	18pF
