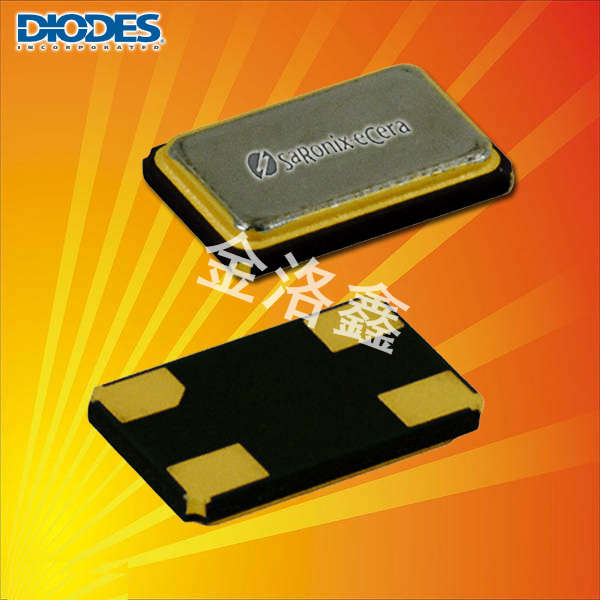

FY0800057Q-8MHz-20pf-5032mm-百利通亞陶晶振,FY0800057Q晶振,頻率8MHz,負載20pf,5032mm晶振,百利通亞陶晶振,臺灣進口晶振,石英SMD晶振,陶瓷晶振,無鉛環保晶振,PCMCIA卡晶振,筆記本電腦晶振,便攜式多媒體設備晶振,全球定位系統晶振,藍牙音響晶振,接收器晶振,硬盤驅動器晶振.
FY0800057Q-8MHz-20pf-5032mm-百利通亞陶晶振 特點
•堅固的at切割晶體結構
•微型5.0 x 3.2mm陶瓷包裝,非常緊湊的SMD封裝
•可在磁帶和卷軸;12毫米磁帶,每卷1000支
•FY系列接縫密封裝置在標準的5.0 x 3.2mm集成電路封裝年齡中,其密封速率低于最小孔徑的AT-cut晶體,這些緊湊的晶體是理想的表面貼裝在密集的流行,而不是印刷電路板應用程
•FY：無鉛,符合RoHS/綠色標準  F9：符合RoHS標準

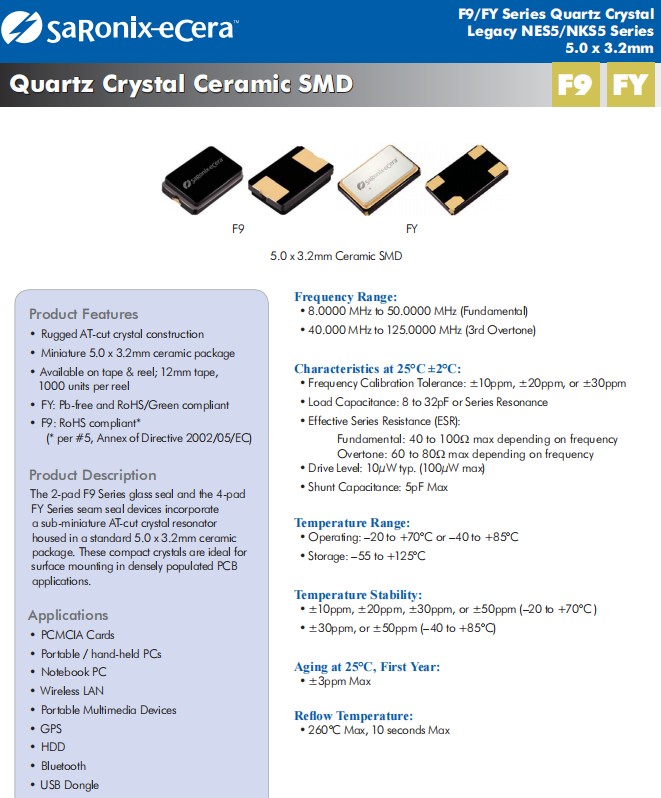

FY0800057Q-8MHz-20pf-5032mm-百利通亞陶晶振,參數圖

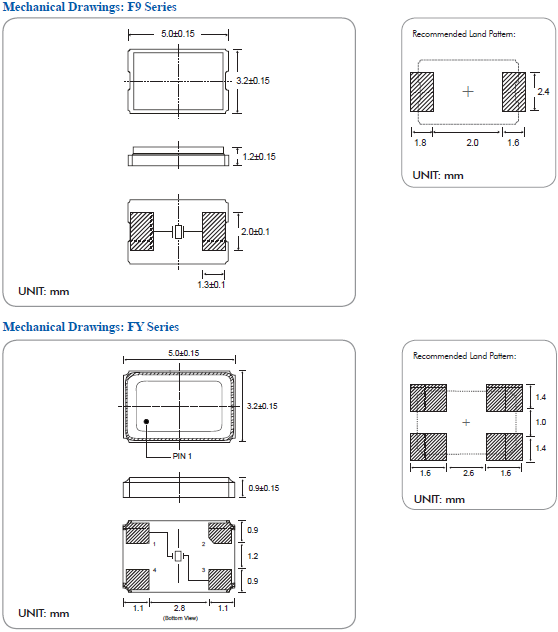

FY0800057Q-8MHz-20pf-5032mm-百利通亞陶晶振尺寸圖

制造商零件編號	制造商	系列	頻率	頻率穩定性	頻率容差	負載電容
FY2500117	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	18pF
FY0800018	Diodes 晶振	FY	8 MHz	±30ppm	±30ppm	18pF
FY2400053	Diodes 晶振	FY	24 MHz	±10ppm	±10ppm	8pF
FY2500016	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	18pF
FY0800027	Diodes 晶振	FY	8 MHz	±20ppm	±20ppm	18pF
FY0800057Q	Diodes 晶振	FY	8 MHz	±50ppm	±20ppm	20pF
FY1000009	Diodes 晶振	FY	10 MHz	±30ppm	±30ppm	20pF
FY1000020	Diodes 晶振	FY	10 MHz	±10ppm	±10ppm	10pF
FY1600069Q	Diodes 晶振	FY	16 MHz	±20ppm	±20ppm	20pF
FY1200011	Diodes 晶振	FY	12 MHz	±30ppm	±20ppm	18pF
FY2500068	Diodes 晶振	FY	25 MHz	±10ppm	±10ppm	10pF
FY2500115	Diodes 晶振	FY	25 MHz	±10ppm	±10ppm	8pF
FY1600101	Diodes 晶振	FY	16 MHz	±20ppm	±10ppm	18pF
FY2000032	Diodes 晶振	FY	20 MHz	±50ppm	±30ppm	18pF
FY2500165	Diodes 晶振	FY	25 MHz	±25ppm	±20ppm	14pF
FY0800056	Diodes 晶振	FY	8 MHz	±30ppm	±20ppm	20pF
FY2500133Q	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	20pF
FY2000064Q	Diodes 晶振	FY	20 MHz	±10ppm	±10ppm	18pF
FY1000014	Diodes 晶振	FY	10 MHz	±20ppm	±20ppm	18pF
FY1020003	Diodes 晶振	FY	10.24 MHz	±30ppm	±30ppm	20pF
FY1030001	Diodes 晶振	FY	10.368 MHz	±10ppm	±10ppm	10pF
FY1030003	Diodes 晶振	FY	10.368 MHz	±8ppm	±10ppm	12pF
FY1100007	Diodes 晶振	FY	11.0592 MHz	±20ppm	±10ppm	10pF
FY1100009	Diodes 晶振	FY	11.0592 MHz	±50ppm	±50ppm	12pF
FY1100010	Diodes 晶振	FY	11.0592 MHz	±10ppm	±10ppm	20pF
FY1100014	Diodes 晶振	FY	11.0592 MHz	±30ppm	±30ppm	20pF
FY1120011	Diodes 晶振	FY	11.2896 MHz	±30ppm	±30ppm	15pF
FY1200078	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	12pF
FY1200084	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	18pF
FY1200086	Diodes 晶振	FY	12 MHz	±20ppm	±20ppm	20pF
FY1200089	Diodes 晶振	FY	12 MHz	±10ppm	±10ppm	20pF
FY1200101	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	20pF
FY1200106	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	12pF
FY1200108	Diodes 晶振	FY	12 MHz	±20ppm	±20ppm	12pF
FY1200112	Diodes 晶振	FY	12 MHz	±15ppm	±10ppm	18pF
FY1200119	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	20pF
FY1200125	Diodes 晶振	FY	12 MHz	±50ppm	±30ppm	18pF
FY1200126	Diodes 晶振	FY	12 MHz	±50ppm	±30ppm	18pF
FY1200127	Diodes 晶振	FY	12 MHz	±20ppm	±20ppm	20pF
FY1200129	Diodes 晶振	FY	12 MHz	±20ppm	±20ppm	18pF
FY1220016	Diodes 晶振	FY	12.288 MHz	±30ppm	±30ppm	20pF
FY1250002	Diodes 晶振	FY	12.5 MHz	±50ppm	±50ppm	16pF
FY1350029	Diodes 晶振	FY	13.56 MHz	±10ppm	±10ppm	12pF
FY1380008	Diodes 晶振	FY	13.824 MHz	±20ppm	±20ppm	20pF
FY1430037	Diodes 晶振	FY	14.31818 MHz	±30ppm	±30ppm	18pF
FY1430046	Diodes 晶振	FY	14.318 MHz	±30ppm	±30ppm	20pF
FY1430047	Diodes 晶振	FY	14.31818 MHz	±30ppm	±30ppm	8pF
FY1430051	Diodes 晶振	FY	14.31818 MHz	±20ppm	±20ppm	16pF
FY1600055	Diodes 晶振	FY	16 MHz	±20ppm	±20ppm	12pF
FY1600066	Diodes 晶振	FY	16 MHz	±20ppm	±20ppm	10pF
FY1600068	Diodes 晶振	FY	16 MHz	±100ppm	±100ppm	12pF
FY1600077	Diodes 晶振	FY	16 MHz	±30ppm	±30ppm	20pF
FY1600088	Diodes 晶振	FY	16 MHz	±30ppm	±30ppm	30pF
FY1630014	Diodes 晶振	FY	16.384 MHz	±30ppm	±30ppm	20pF
FY1840017	Diodes 晶振	FY	18.432 MHz	±30ppm	±30ppm	20pF
FY1920015	Diodes 晶振	FY	19.2 MHz	±10ppm	±10ppm	10pF
FY1920016	Diodes 晶振	FY	19.2 MHz	±20ppm	±20ppm	18pF
FY2000035	Diodes 晶振	FY	20 MHz	±30ppm	±30ppm	20pF
FY2000039	Diodes 晶振	FY	20 MHz	±30ppm	±30ppm	16pF
FY2000052	Diodes 晶振	FY	20 MHz	±10ppm	±10ppm	18pF
FY2000056	Diodes 晶振	FY	20 MHz	±50ppm	±20ppm	18pF
FY2210004	Diodes 晶振	FY	22.1184 MHz	±30ppm	±30ppm	20pF
FY2250003	Diodes 晶振	FY	22.5792 MHz	±30ppm	±30ppm	20pF
FY2400041	Diodes 晶振	FY	24 MHz	±20ppm	±20ppm	18pF
FY2400043	Diodes 晶振	FY	24 MHz	±20ppm	±15ppm	20pF
FY2400044	Diodes 晶振	FY	24 MHz	±30ppm	±30ppm	10pF
FY2400045	Diodes 晶振	FY	24 MHz	±30ppm	±30ppm	20pF
FY2400049	Diodes 晶振	FY	24 MHz	±50ppm	±50ppm	10pF
FY2400052	Diodes 晶振	FY	24 MHz	±25ppm	±10ppm	18pF
FY2400054	Diodes 晶振	FY	24 MHz	±30ppm	±30ppm	18pF
FY2400056	Diodes 晶振	FY	24 MHz	±25ppm	±10ppm	16pF
FY2400064	Diodes 晶振	FY	24 MHz	±10ppm	±10ppm	10pF
FY2400065Z	Diodes 晶振	FY	24 MHz	±50ppm	±30ppm	20pF
FY2400070	Diodes 晶振	FY	24 MHz	±10ppm	±10ppm	10pF
FY2400071	Diodes 晶振	FY	24 MHz	±15ppm	±10ppm	10pF
FY2500006	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	12pF
FY2500046	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	20pF
FY2500047	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	20pF
FY2500049	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	20pF
FY2500050	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	18pF
FY2500052	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	20pF
FY2500053	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	12pF
FY2500055	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	20pF
FY2500065	Diodes 晶振	FY	25 MHz	±10ppm	±10ppm	10pF
FY2500066	Diodes 晶振	FY	25 MHz	±30ppm	±10ppm	18pF
FY2500070	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	15pF
FY2500074	Diodes 晶振	FY	25 MHz	±50ppm	±30ppm	18pF
FY2500076	Diodes 晶振	FY	25 MHz	±10ppm	±10ppm	18pF
FY2500087	Diodes 晶振	FY	25 MHz	±25ppm	±25ppm	18pF
FY2500088	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	10pF
FY2500089	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	18pF
FY2500090	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	12pF
FY2500094	Diodes 晶振	FY	25 MHz	±10ppm	±10ppm	18pF
FY2500102	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	15pF
FY2500107	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	18pF
FY2500110	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	12pF
FY2500124	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	18pF
FY2500126	Diodes 晶振	FY	25 MHz	±15ppm	±10ppm	18pF
FY2500136	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	20pF
FY2500139	Diodes 晶振	FY	25 MHz	±10ppm	±10ppm	10pF
FY2500141	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	14pF
FY2600045	Diodes 晶振	FY	26 MHz	±20ppm	±20ppm	20pF
FY2700035	Diodes 晶振	FY	27 MHz	±30ppm	±30ppm	18pF
FY2700045	Diodes 晶振	FY	27 MHz	±30ppm	±30ppm	20pF
FY2700048	Diodes 晶振	FY	27 MHz	±10ppm	±10ppm	18pF
FY2700059	Diodes 晶振	FY	27 MHz	±30ppm	±30ppm	20pF
FY2700066	Diodes 晶振	FY	27 MHz	±30ppm	±30ppm	20pF
FY2700071	Diodes 晶振	FY	27 MHz	±15ppm	±10ppm	18pF
FY2810001	Diodes 晶振	FY	28.125 MHz	±30ppm	±30ppm	18pF
FY2860008	Diodes 晶振	FY	28.63636 MHz	±20ppm	±20ppm	18pF
